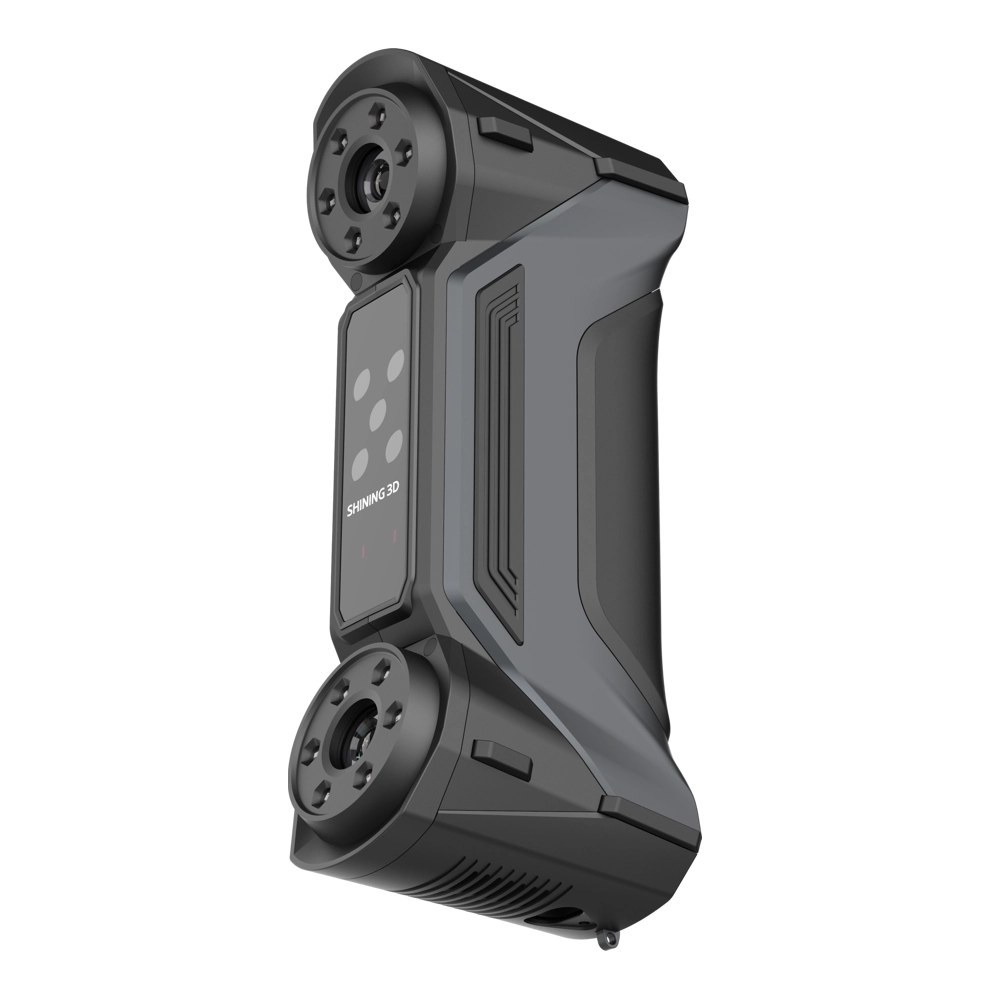

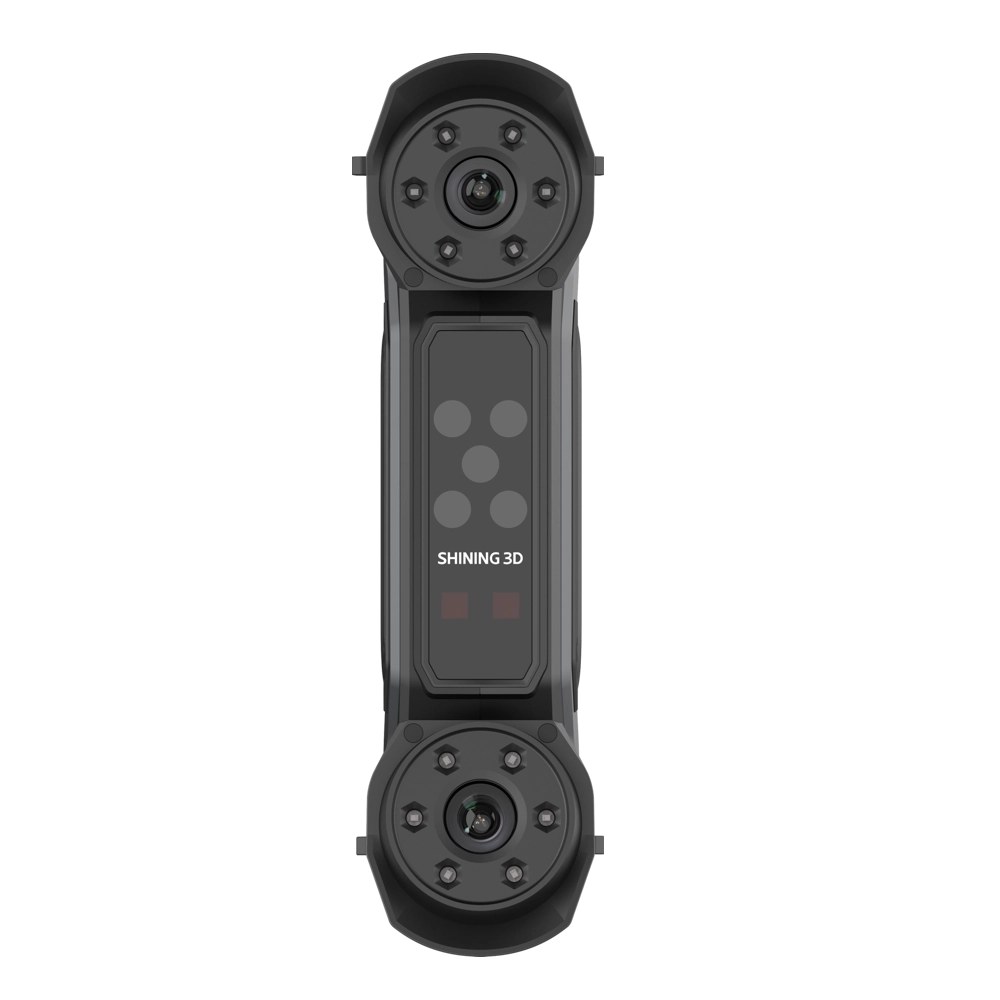

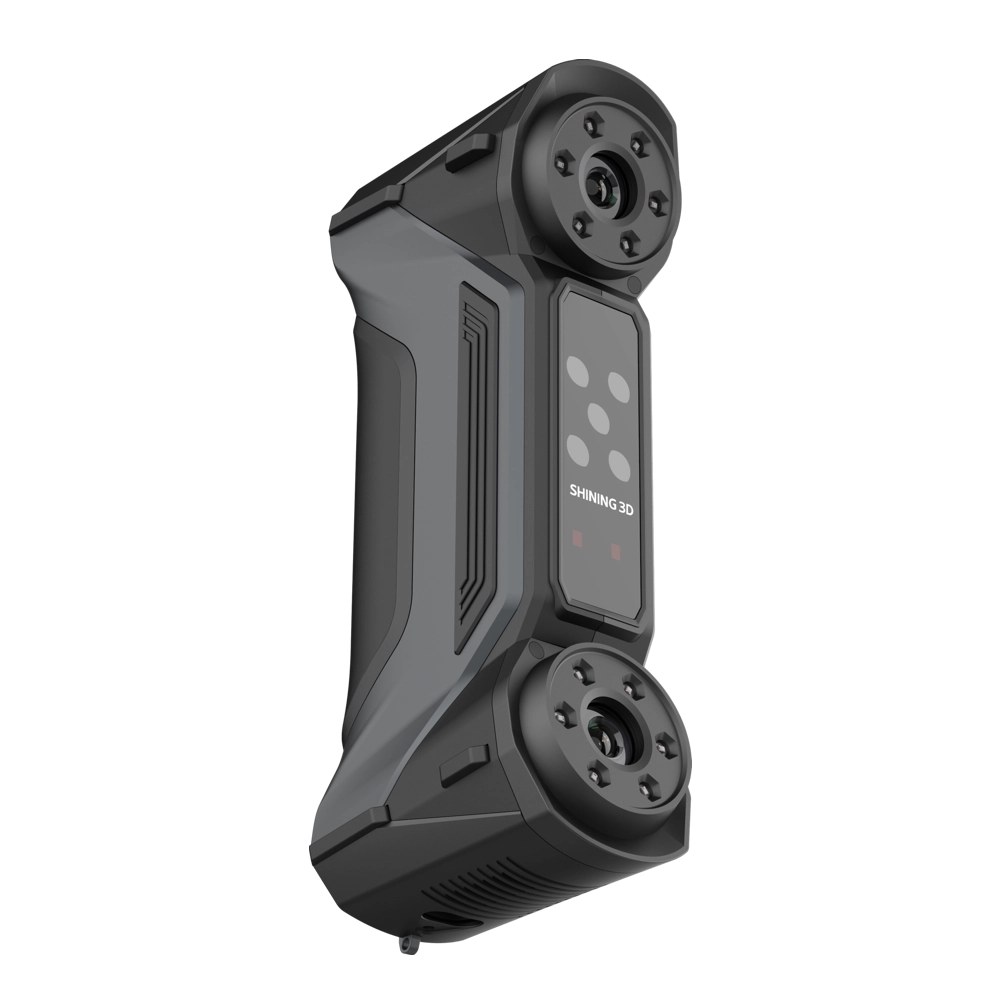

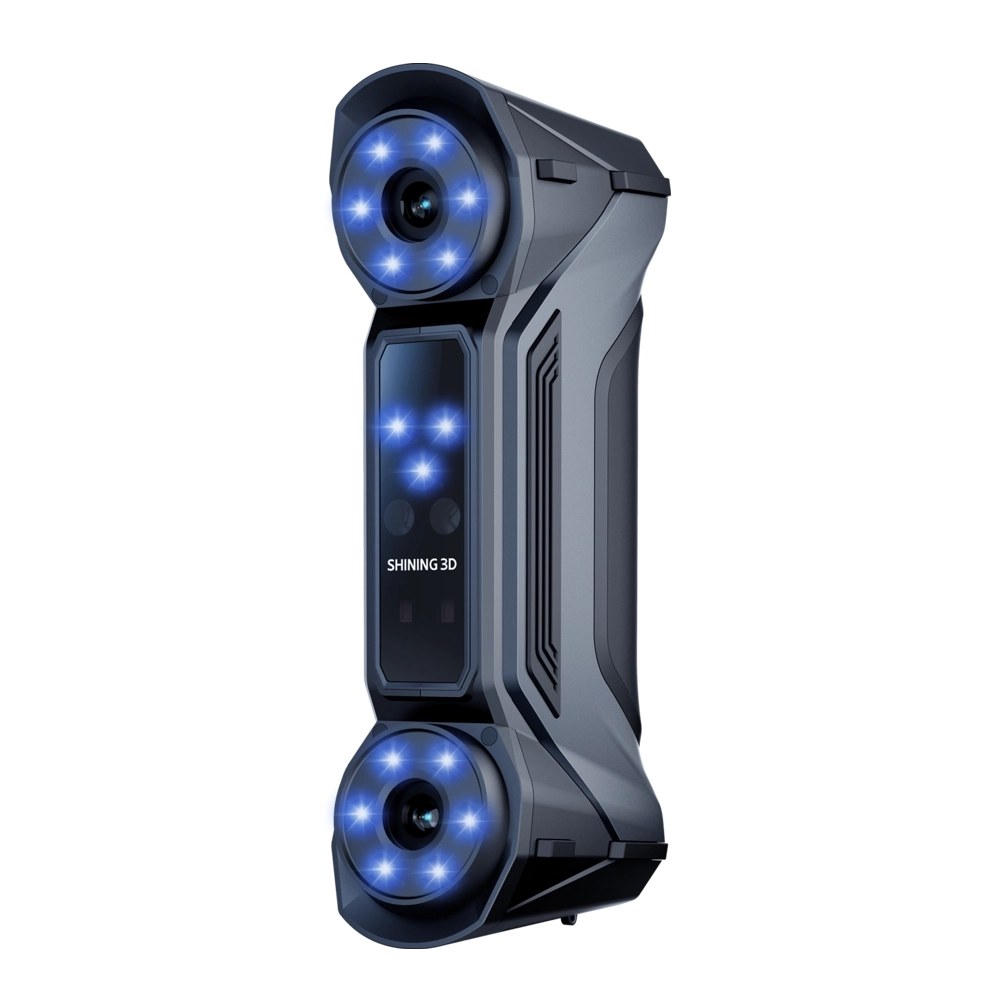

The FreeScan Combo+ Wireless is SHINING 3D’s wireless hybrid light source metrology handheld 3D scanner — the next evolution of the Combo family. For FreeScan Combo+ Wireless Malaysia users in inspection, quality control and reverse engineering, it marks a complete transition to untethered metrology: next-generation Wi-Fi 7 connectivity, a dramatically upgraded 93 laser lines, and built-in Video Photogrammetry (VPG) deliver faster, more flexible and highly accurate 3D scanning across automotive, heavy industry, transportation, energy and other demanding sectors.
Wireless Freedom with Wi-Fi 7
Driven by the next-generation Wi-Fi 7 protocol and advanced anti-interference technology, the FreeScan Combo+ Wireless delivers fast, stable and reliable data transmission across complex factory floors and challenging outdoor environments. Cut the cord entirely and work weightless deep into confined structures — the lightweight, compact design keeps scanning effortless and agile from start to finish, at just 550 g net weight.
Certified and Traceable Metrology Accuracy
With volumetric accuracy up to 0.02 mm + 0.015 mm/m using built-in Video Photogrammetry, the FreeScan Combo+ Wireless delivers consistent, reliable measurement results across a wide range of inspection and quality control applications. Every system is calibrated by the SHINING 3D Accuracy Laboratory, accredited by CNAS in accordance with ISO/IEC 17025, with calibration procedures strictly following ISO 10360 standards — ensuring reliable and traceable metrology-grade quality assurance for enterprise, industry and research.
Built-in Video Photogrammetry (VPG)
Equipped with SHINING 3D’s patented Video Photogrammetry technology, the scanner continuously optimizes the spatial position of reference markers throughout the scanning process. By minimizing cumulative errors over long distances, VPG maintains consistent accuracy across large-scale components — making it ideal for applications requiring reliable global measurements.
93 Laser Lines — More Lines, Higher Performance, Faster Speed
- 93 laser lines — captures more surface data in every pass, reducing scan paths and accelerating data acquisition
- Up to 9,106,000 points/s scan speed
- 180 frames per second — smooth, stable tracking even during fast scanning movements
- Enhanced efficiency — complex surfaces, deep holes, narrow slots and large-scale components scanned efficiently, with meshes generated in real time for a faster path from capture to analysis
Multi Scan Modes for Every Task
- High-speed scan mode — 93 blue laser lines for rapid coverage of large surfaces
- Detailed scan mode — 25 parallel laser lines to capture intricate details with higher efficiency
- Deep pockets scan mode — single laser line for deep holes and narrow slots
- IR rapid scan mode — VCSEL infrared for quick, marker-free scanning
- VPG scan mode — for large components requiring global accuracy
Inspection-Ready Workflow
Transfer scan data directly into SHINING3D Inspect with a single click for dimensional inspection, GD&T analysis, color maps and automated reporting — creating a seamless workflow from data capture to quality control. The streamlined software displays mesh data in real time as you scan, while intelligent boundary detection provides fast, precise measurement of round holes, rectangular holes and slots. Certified by PTB, it supports a wide range of quality control and inspection applications across manufacturing industries.
Intelligent Resolution & Data Quality Visualization
The scanner automatically adjusts mesh resolution based on the object’s curvature, ensuring clearer and more detailed features. Operators can determine whether scanning distance is appropriate by observing the rendering color of the laser lines in the 3D view or the LED indicator on the scanner, with a real-time mesh quality indicator showing which areas are sufficiently captured.
Long Runtime, Minimal Downtime
Built to outpace the heaviest shifts, the high-capacity battery supports up to 2 hours of continuous scanning. Paired with the rapid-charging dock, you simply swap and keep running — no waiting for a full charge mid-inspection.
Technical Specifications
- Accuracy: 0.02 mm (0.0008 in)
- Volumetric accuracy: 0.02 mm + 0.03 mm/m; with VPG: 0.02 mm + 0.015 mm/m
- Scan speed: up to 9,106,000 points/s
- Max. FOV: Laser 580 × 650 mm; IR 830 × 700 mm
- Working distance: 300 mm
- Connection: Wi-Fi 7 / USB 3.0
- Dimensions: 189 × 81 × 53 mm; net weight 550 g
- Working temperature: -10 ~ 40 °C; humidity: 10 ~ 90%
- Certifications: CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
- Acceptance test: ISO 10360 certified (ISO/IEC 17025 accredited Accuracy Lab)
FreeScan Combo+ Wireless Malaysia — Available at Trinventor Solution
As a trusted SHINING 3D Malaysia partner, Trinventor Solution provides consultation, live demonstrations and after-sales support for the full metrology range. Whether you are bringing dimensional inspection in-house, validating components on the shop floor, or reverse engineering complex parts, the FreeScan Combo+ Wireless delivers wireless metrology-grade freedom. Contact us to arrange a demonstration.
