Shining 3D RobotScan Series

SHINING 3D Automation Solution (RobotScan Series) is an end-to-end automated 3D scanning and inspection system that integrates advanced metrology scanners, robotic arms, controllers, and turntables to deliver highly efficient, repeatable, and accurate 3D digitization for modern production and quality control.

Product Details

The SHINING 3D Automation Solution — built around its innovative RobotScan Series — brings industrial-level automation to 3D metrology and inspection. Designed for modern manufacturing environments, this automated solution replaces manual scanning with robot-integrated workflows capable of delivering high-accuracy geometric data, fast part inspection, and comprehensive reporting.

By combining advanced 3D scanning technology with precision robot arms, turntables, and control software, RobotScan enables consistent, repeatable digitization for batch inspection, in-line quality checks, and full-field measurements across parts of varying complexity and geometry.

Core Advantages

Automated 3D Measurement Workflow – Eliminates manual scanning for higher consistency and throughput.
High-Efficiency Inspection – Rapid 3D data capture accelerates quality control processes.
Seamless Integration – Works with MES (Manufacturing Execution Systems) for real-time feedback and traceability.
Modular & Customizable – Supports multiple system configurations based on inspection needs.
Full-Field 3D Geometry Analysis – Generates detailed Inspection reports for production optimization.

The RobotScan Series supports a range of automated inspection tasks, combining both fringe projection and handheld laser scanning technologies to suit diverse part sizes and production demands. With streamlined installation, robot path automation, and efficient data workflows, it’s ideal for automotive, aerospace, electronics, tooling & component manufacturing where precision and speed are critical.

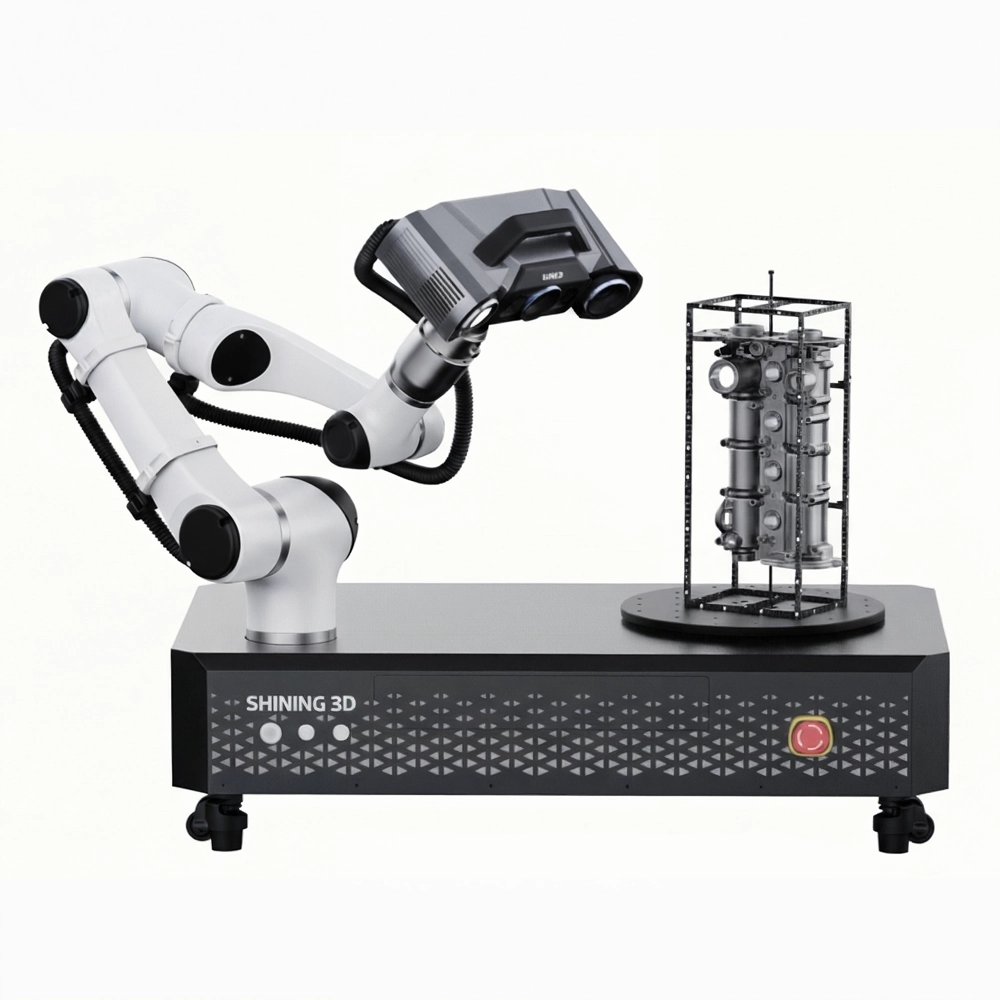

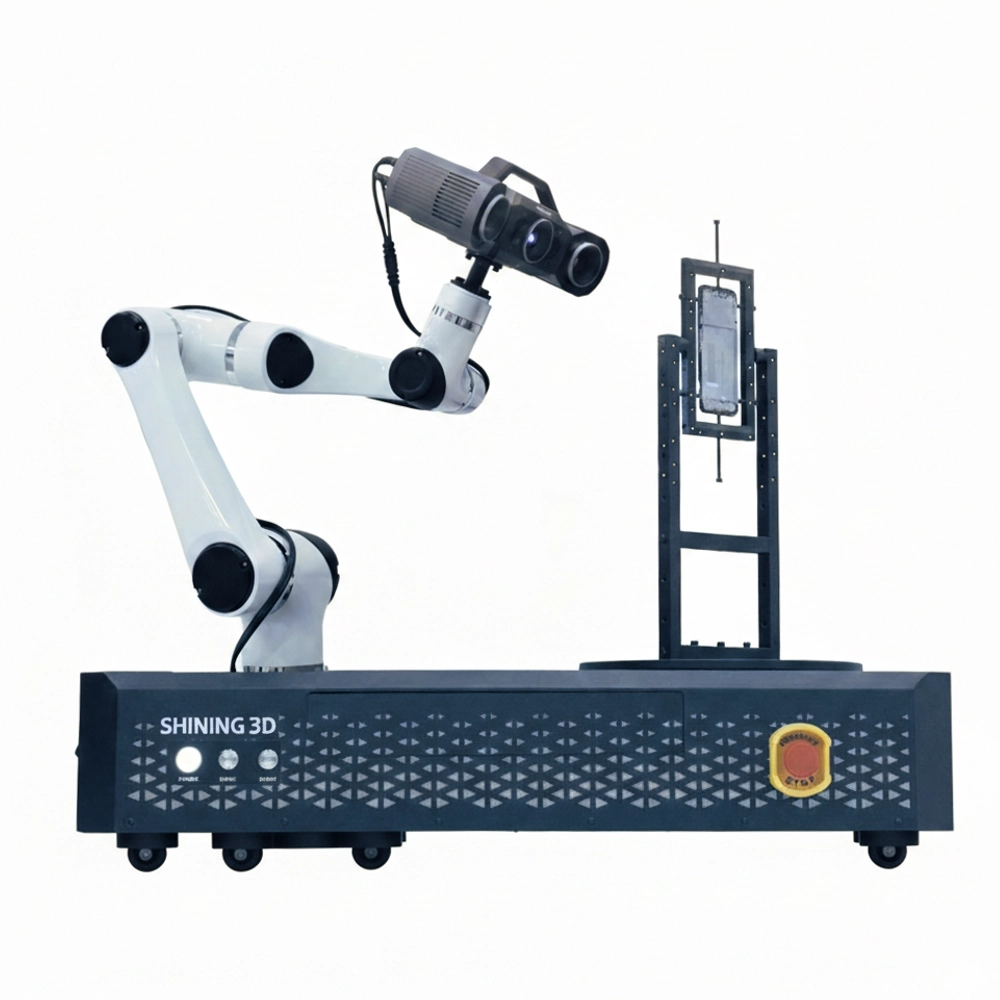

RobotScan Q12

Fine-detail components such as airfoils, brackets, connectors, gears, housings, and electronic components
Designed sensor for small-sized part measurement with complex surfaces, geometries, or sharp edges
Suited for a wide range of tasks, like injection molding, die casting, investment casting, and CNC parts
Automated optical 3D measurement solution with high repeatability
High efficiency for mass-production inspection
Fringe projection technology with the best accuracy and high detailed data

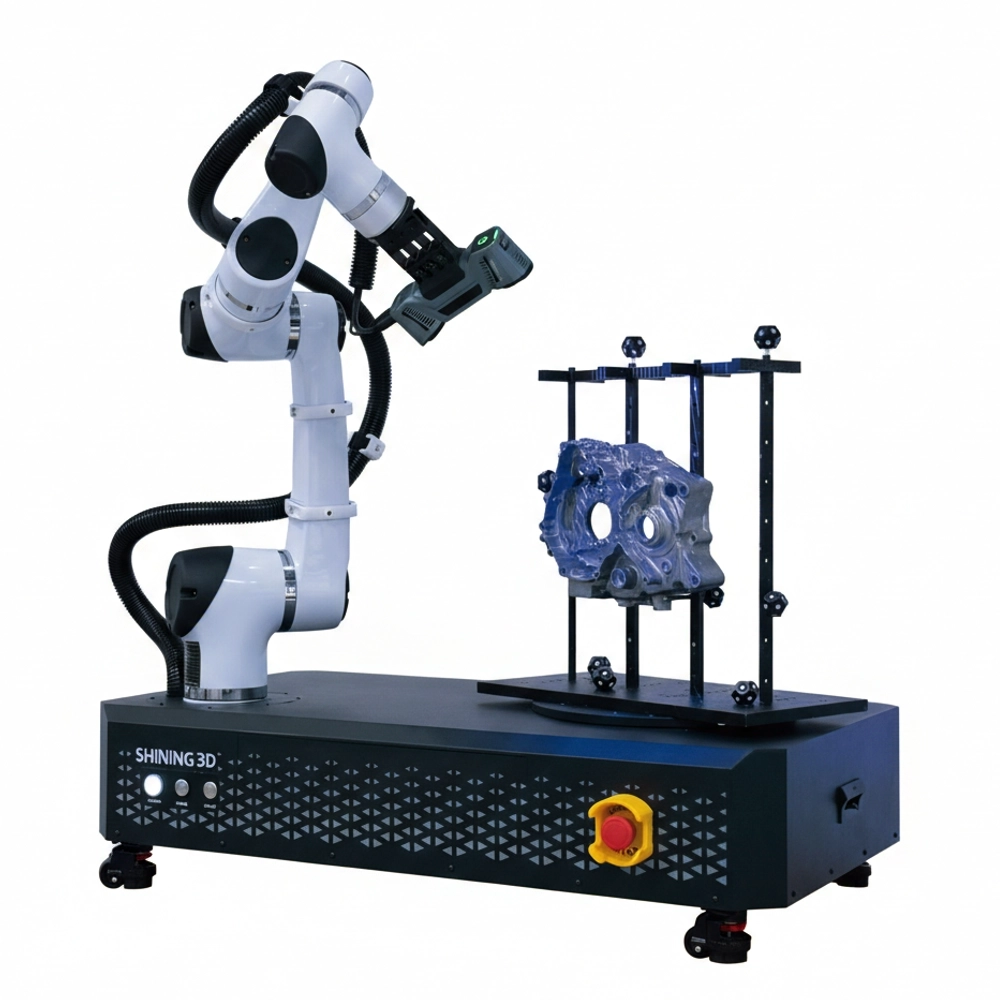

RobotScan UE Pro2

Small and medium sized sheet metal parts, casting housing, machining parts, mold components
Strong material adaptability, especially on black, shiny, and reflective surfaces
Suited for a wide range of tasks, like die casting, stamping, and machining parts
Wireless and Wired connectivity for flexible on-site installation
Automated optical 3D measurement solution with high accuracy and high efficiency
Handheld laser technology for various shopfloor environments

RobotScan Combo+

Batch inspection of the small-to-medium-sized castings and machined parts
Mixed-size components such as covers, trim pieces, assemblies, medium castings
Cost-effective automated 3D scanning across varied parts

RobotScan Control

RobotScan Control is a professional automation software purpose-built for industrial applications. It enables direct control of collaborative robot arms, servo turntables, and 3D scanners to execute the complete workflow – from path programming to 3D scanning and inspection. Featuring a process-oriented interface, the software offers intuitive operation and a low learning curve, greatly improving automation efficiency and stability.

SHINING3D Inspect

SHINING3D Inspect is an industrial inspection software certified by PTB for measurement accuracy. It processes high-accuracy 3D scan data to perform detailed 3D comparison, measurement, and inspection report generation. The software delivers reliable, traceable inspection results that meet the stringent demands of modern manufacturing and quality control.

Looking for the right solution for your application? Our team is here to help. Talk to our 3D solution specialist today.

Where the RobotScan Series fits

RobotScan is not a scanner you hold — it is an automated inspection cell. A metrology scanner is carried by a cobot over a turntable, with the controller and software running the cycle, so the same part is measured the same way every time and the report comes out without an operator driving a scan. It suits batch inspection and in-line quality checks where the constraint is consistency and throughput, not the ability to reach a difficult part.

Specification	Documented figure
Measurable object size	Up to 500 mm
Turntable load capacity	Up to 20 kg
Robot working radius	800 mm
System dimensions / weight	1030 × 670 × 270 mm / 70 kg
Safe working space	2400 × 2400 × 1600 mm
Power supply	100 – 240 V single phase, 10 A
Scanning technologies	Fringe projection and handheld laser scanning, selected per part size and geometry
Integration	MES integration for real-time feedback and traceability; modular configuration

Frequently asked questions

What is the RobotScan Series for?

Automated 3D scanning and inspection in production. A cobot moves a metrology scanner around the part on a turntable, so a batch of the same component is measured identically every cycle and the inspection report is produced automatically.

How big a part can it inspect?

Measurable object size is up to 500 mm, with a turntable load capacity of up to 20 kg and a robot working radius of 800 mm. Larger parts belong with the tracked or handheld systems.

Which scanning technology does it use?

Both fringe projection and handheld laser scanning are supported, chosen per part size and geometry — which is what makes one cell usable across a mixed production line.

Does it talk to our production systems?

Yes. It integrates with MES for real-time feedback and traceability, and the configuration is modular, so the cell can be specified around your inspection needs rather than a fixed package.

What is involved in installing one?

It needs a defined safe working space of 2400 × 2400 × 1600 mm and a single-phase 10 A supply. We scope the cell, the part handling and the reporting with you before quoting.

What does a RobotScan cell cost in Malaysia?

Quoted per cell — the scanner type, robot, turntable and software are specified together against your parts and cycle time.

the 3D scanner range shows where automation sits against the manual systems.

Technical Specification

Specification	Details
Measurable Object Size	≤ 500 mm
Turntable Load Capacity	≤ 20 kg
Robot Type	Cobot, Huayan Robotics
Robot Working Radius	800 mm
System Dimensions	1030 × 670 × 270 mm
System Weight	70 kg
Power Supply	100 – 240V (Single-phase, 10A)
Safe Working Space	2400 × 2400 × 1600 mm
