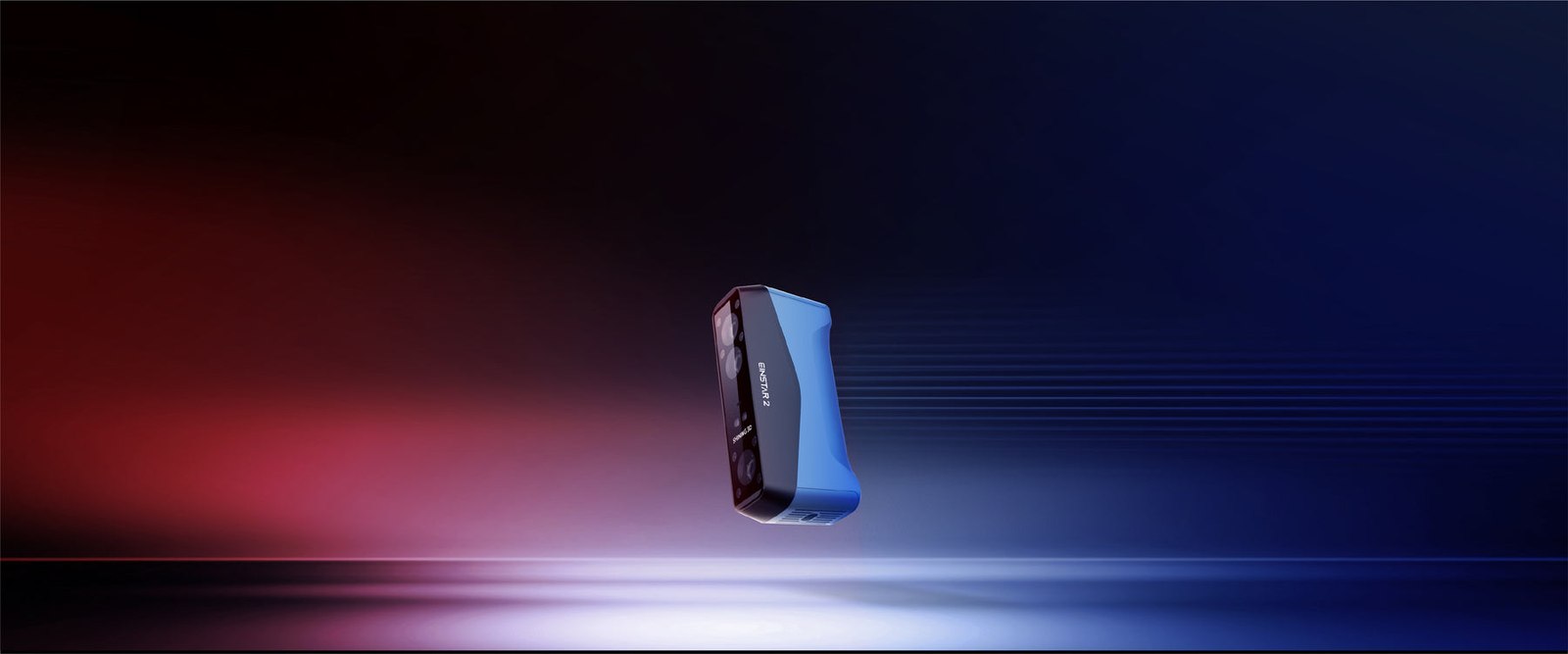

EINSTAR 2 Handheld 3D Scanner Malaysia

Hybrid blue-laser and infrared scanning in a palm-sized, cable-free body — a swappable battery, full-colour capture, and no spray on black or reflective parts.

RM5,500 In stock, ships next business day Local warranty & support

Book a demo Request a quotation →

17parallel laser lines in Laser HD
4.8Mpoints per second, IR Rapid
420 gpalm-sized, one-handed
3 hruntime, swappable battery
110k luxdaylight scanning

Still EINSTAR, even better

The EINSTAR 2 keeps everything that made the first model the default choice for workshops, design studios and teaching labs — and removes the friction: no cables, no hub, no spray, no waiting.

Official EINSTAR 2 overview — hybrid laser and infrared scanning, wireless workflow

Two light sources, one body

Pick the mode for the job: laser when the detail matters, infrared when the object is big, dark or needs to be captured fast.

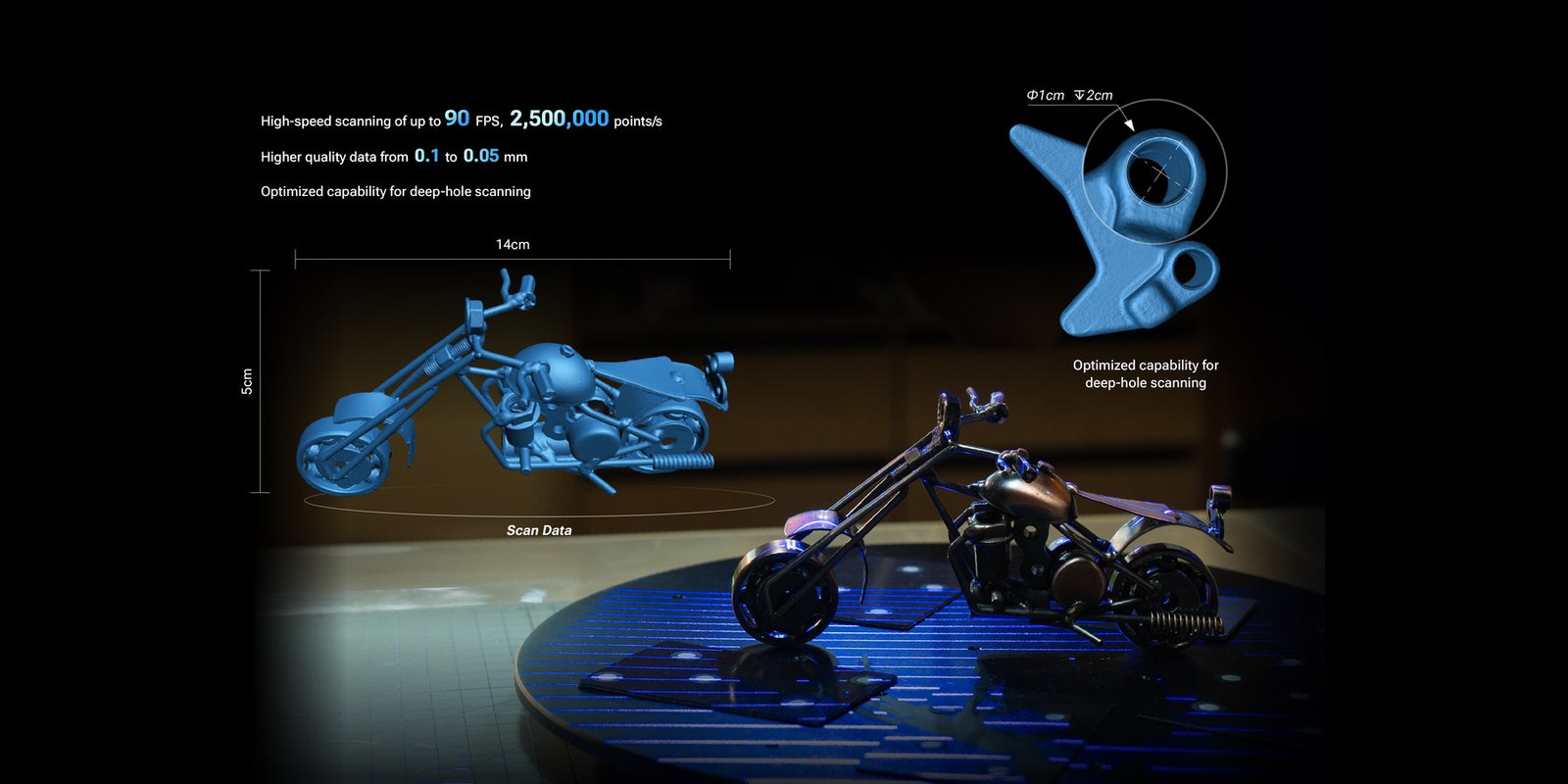

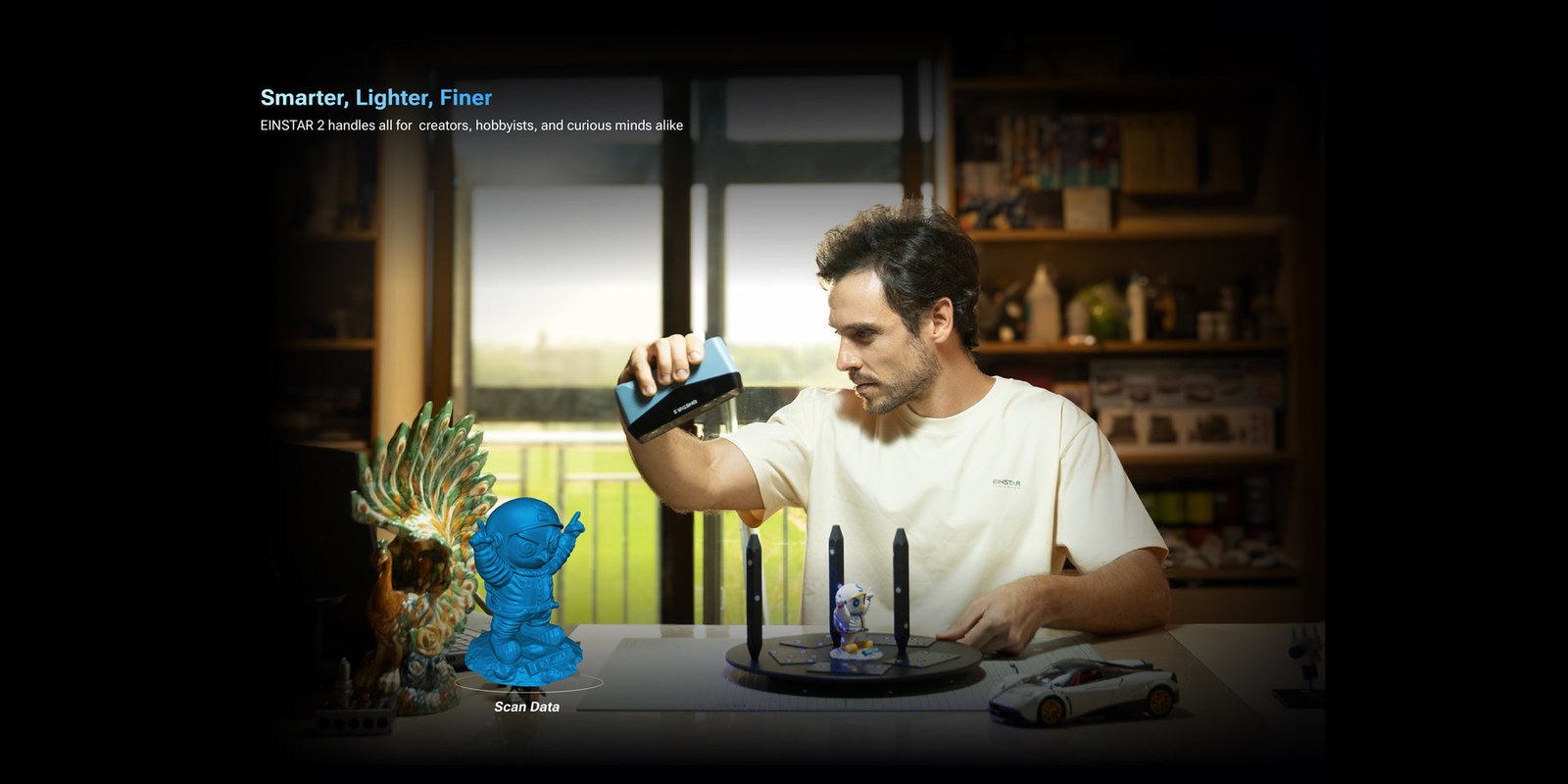

Laser HD mode resolving fine detail at up to 90 fps.

Laser HD

17 parallel laser lines

High resolution on small parts, denser data on medium ones, and noticeably better behaviour on reflective and metallic surfaces. This is the mode for mouldings, connectors, tooling and anything with fine features.

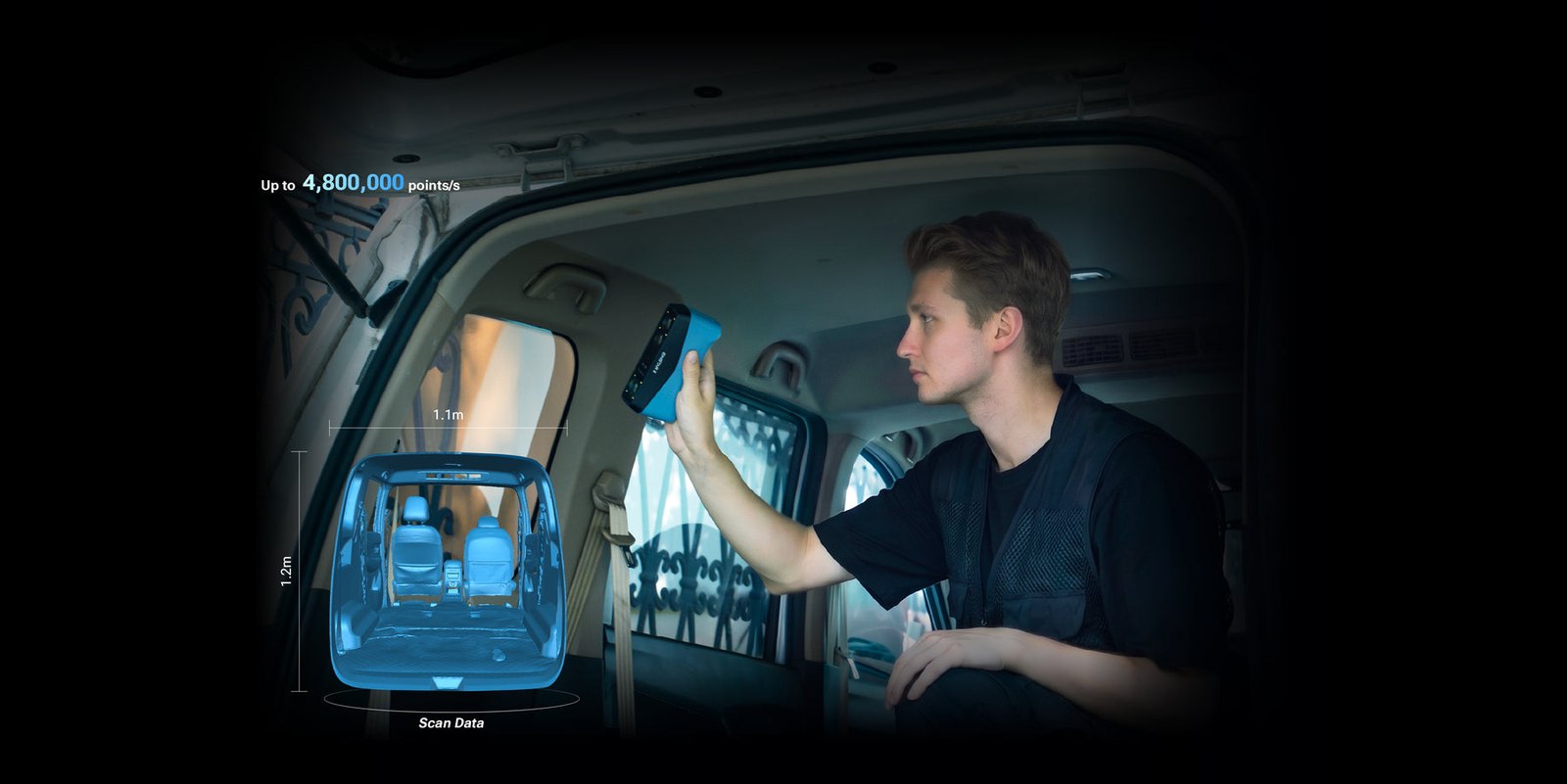

IR Rapid mode: up to 4.8 million points per second.

IR Rapid

IR VCSEL for large objects

Infrared VCSEL captures up to 4,800,000 points per second with a wider working range — the mode for large objects, dark surfaces and fast surveys where coverage beats micro-detail.

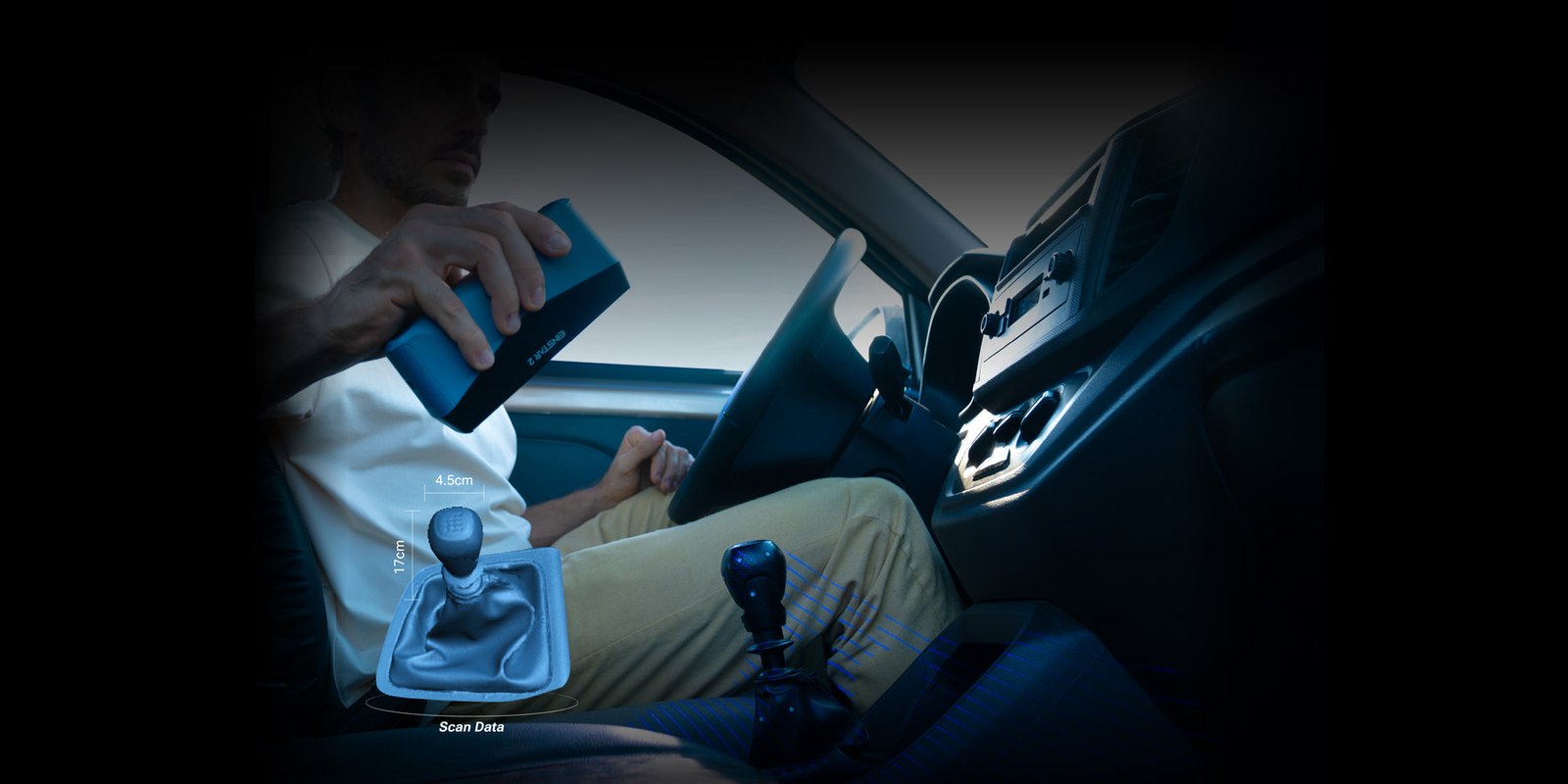

Black plastic and polished metal — no matting spray.

No prep

No spray, no delay

Black plastics, machined aluminium, polished tooling: the EINSTAR 2 scans them directly. No coating to apply, nothing to wait for, no surface to clean afterwards.

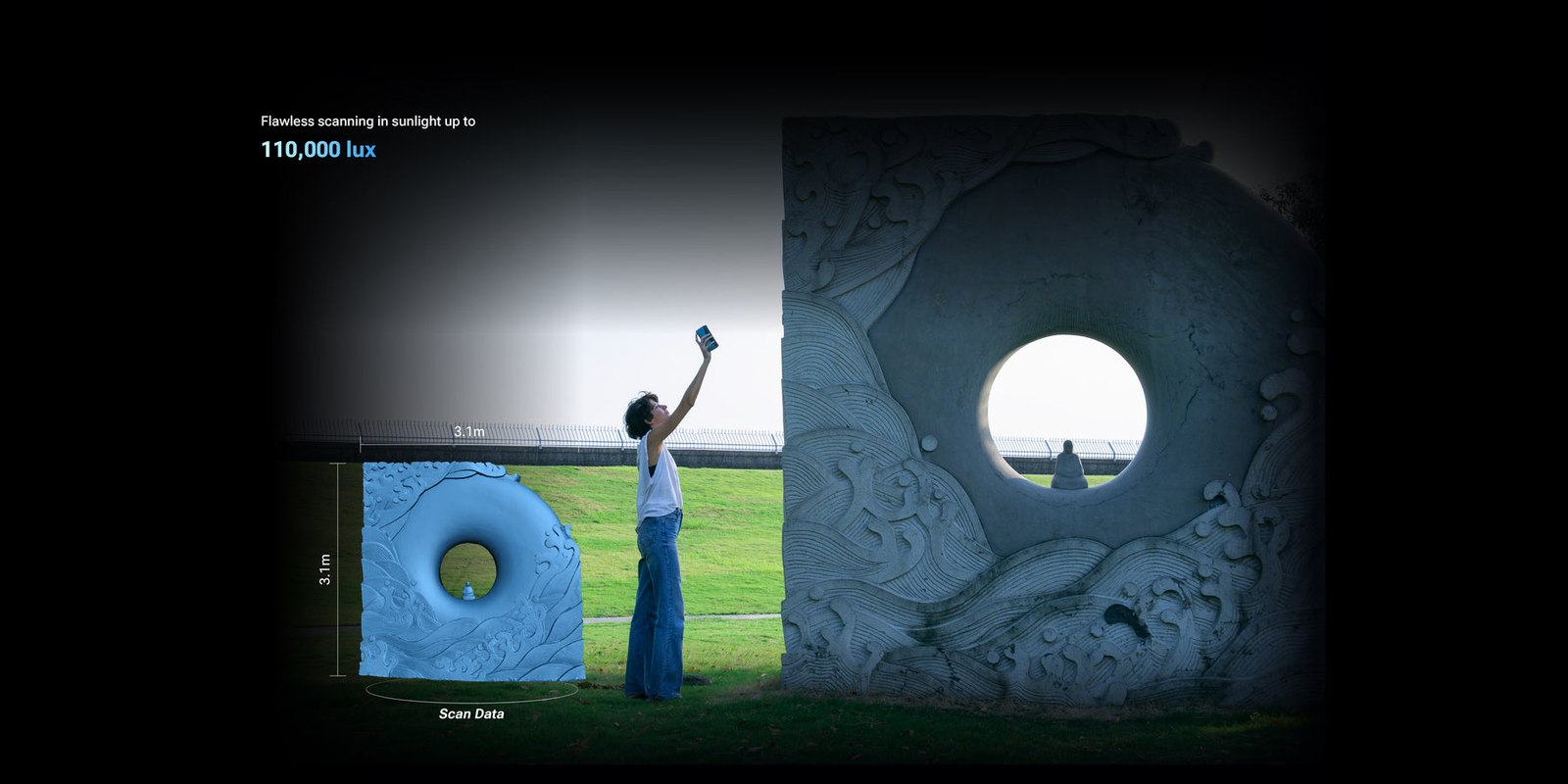

Daylight scanning: up to 110,000 lux in Laser HD.

Outside the workshop

Take it outside

Laser HD works in daylight up to 110,000 lux and IR Rapid up to 70,000 lux. Site surveys, outdoor installations and yard inspections are all in scope — not just a shaded bench.

Built to be carried, not cabled

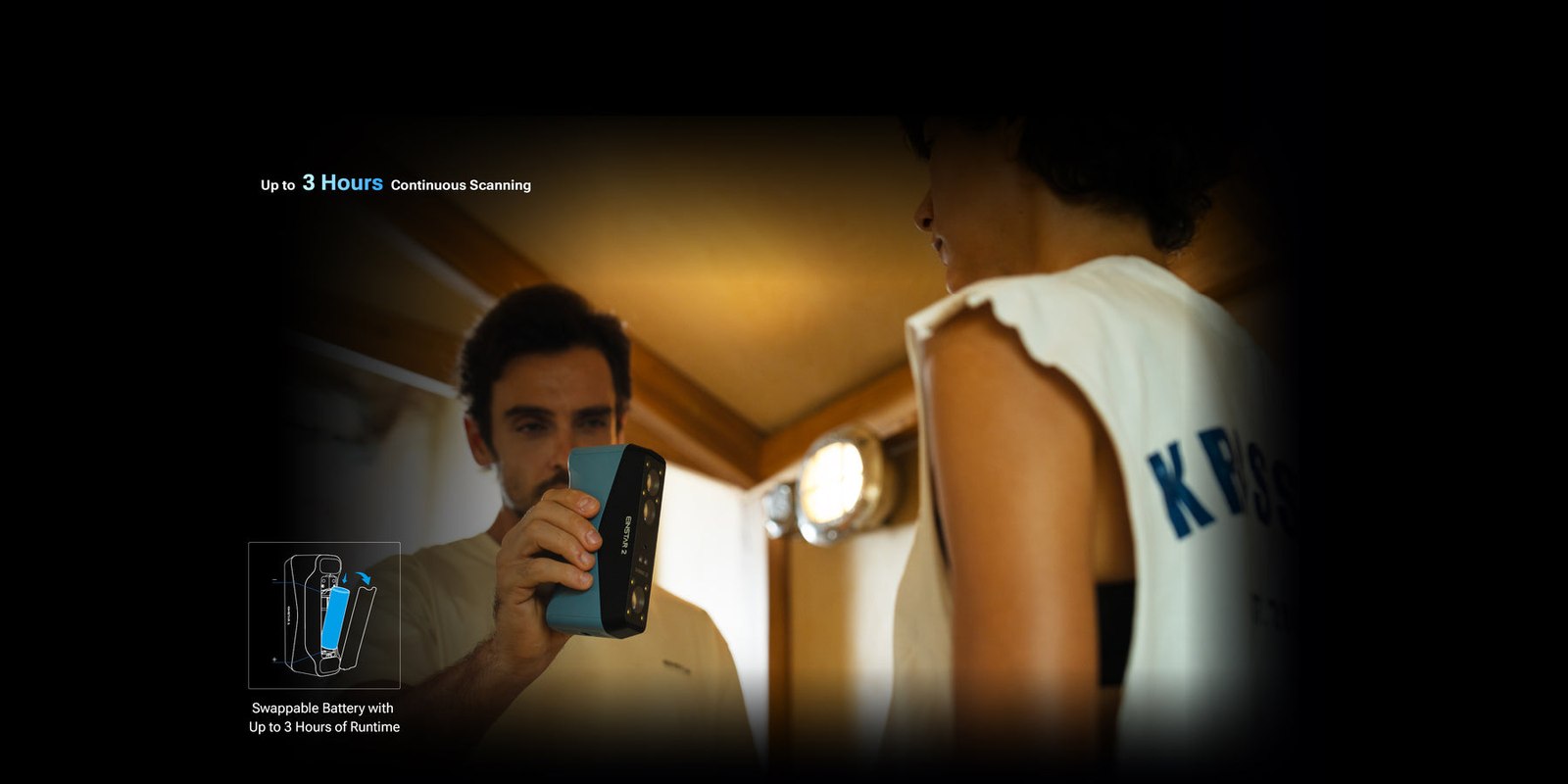

No cables, no hub — the scanner goes to the part.

Wireless

True wireless, truly tireless

A built-in swappable battery runs up to three hours of continuous scanning, so the scanner goes to the part instead of the part coming to a computer. If a site's Wi-Fi is congested, a cable connection is available — the scanner still works.

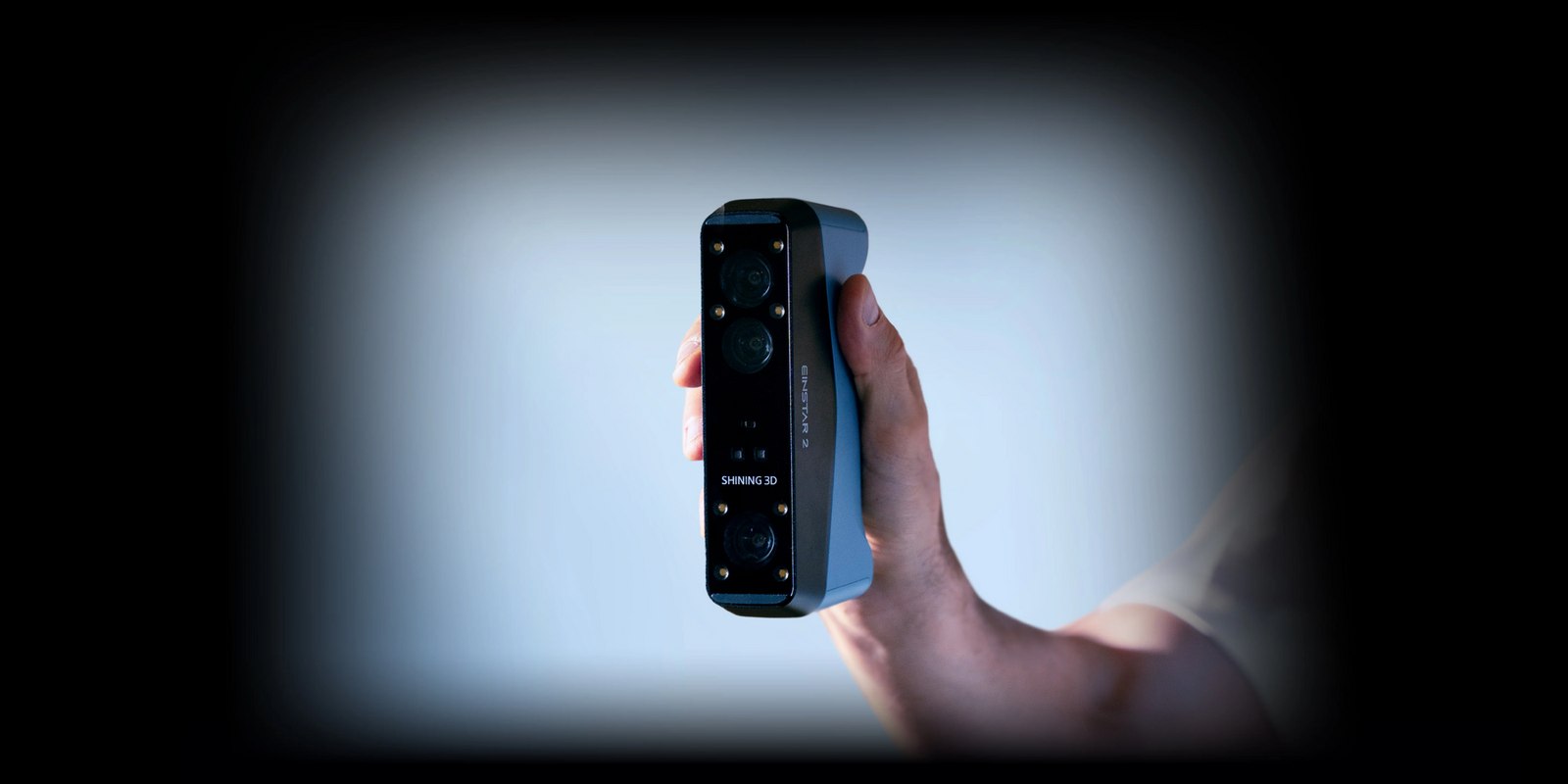

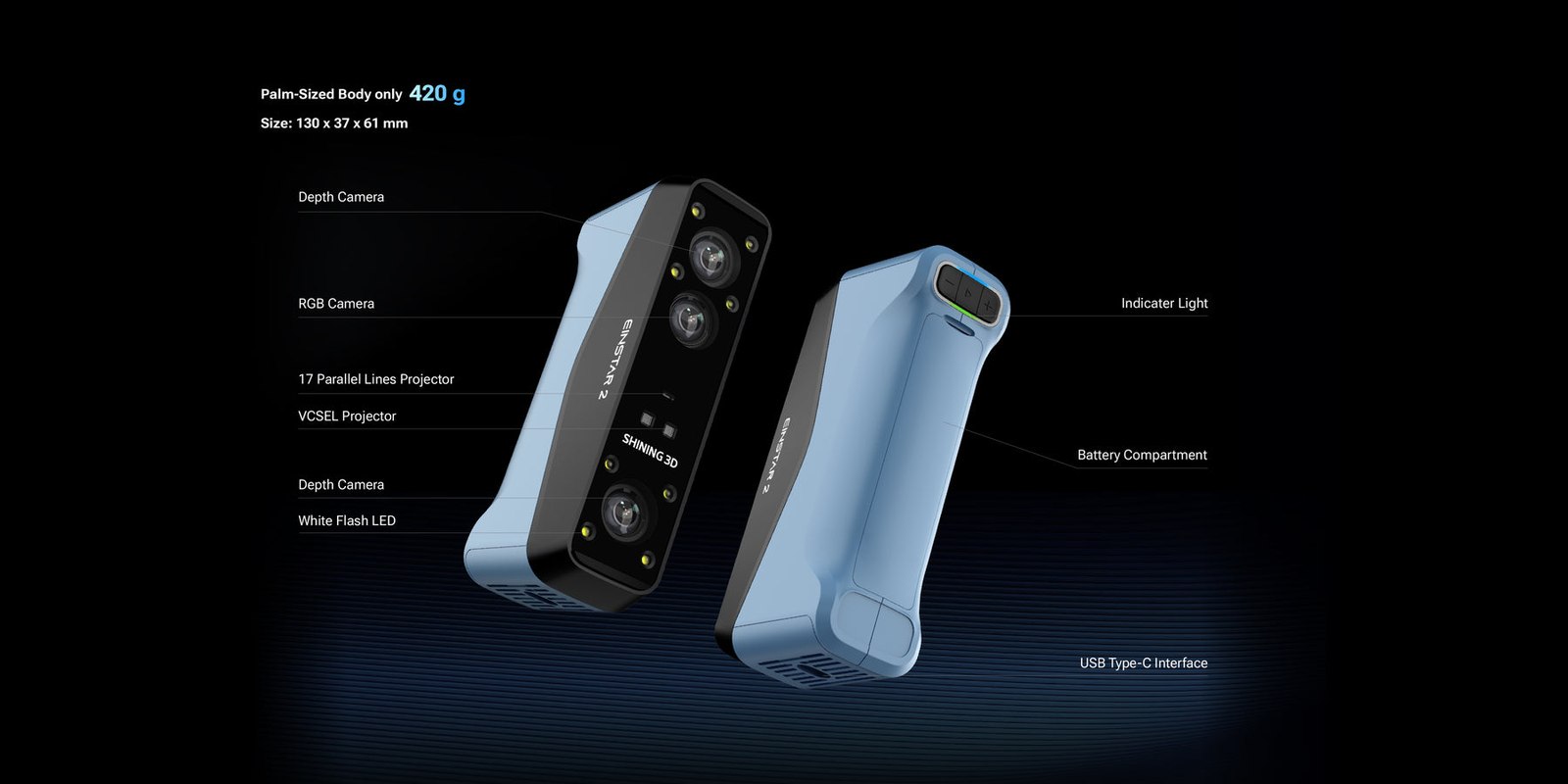

420 g, one-handed.

Handheld

Palm-sized body

Designed for one-hand scanning with live feedback, so you can hold the part and the scanner at the same time — the difference between a two-person job and a one-person job.

What people scan with it

From screw-sized components to van interiors — plus colour capture where the object has to look like itself.

Large objects in a single session

On-site capture, processed there

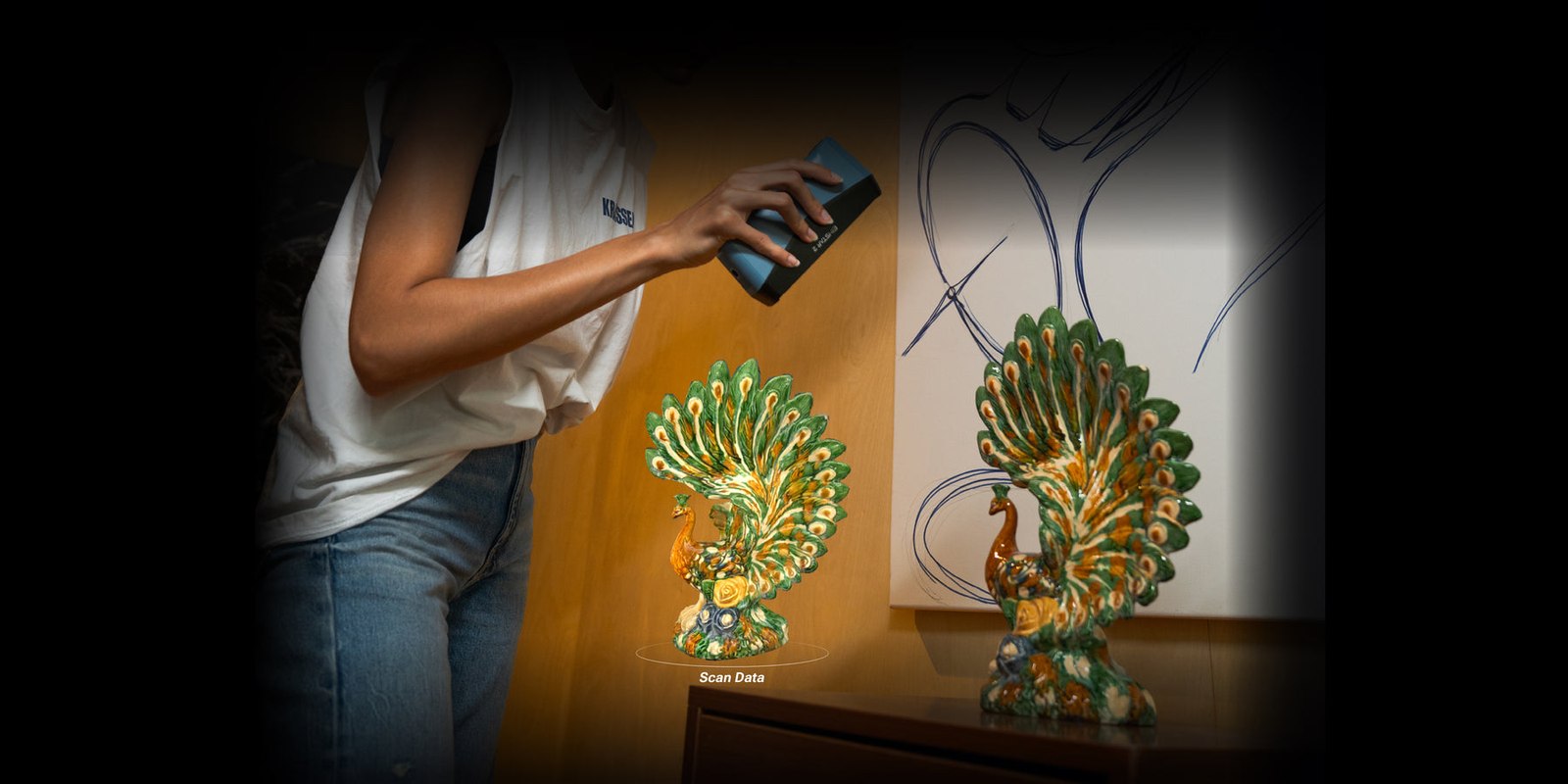

Colour texture for heritage work

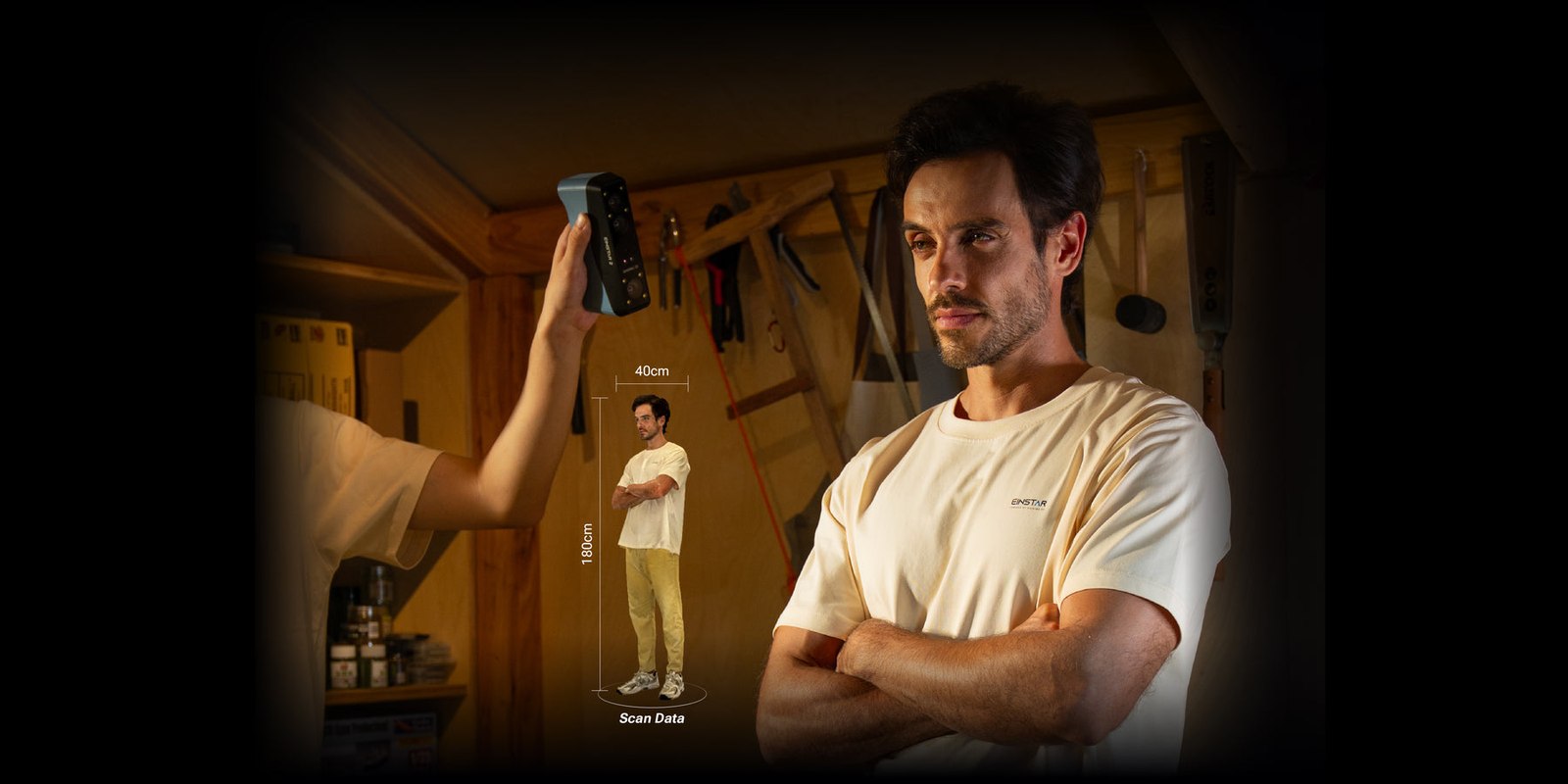

Full-colour capture for reproduction

EXStar Hub — the software it ships with

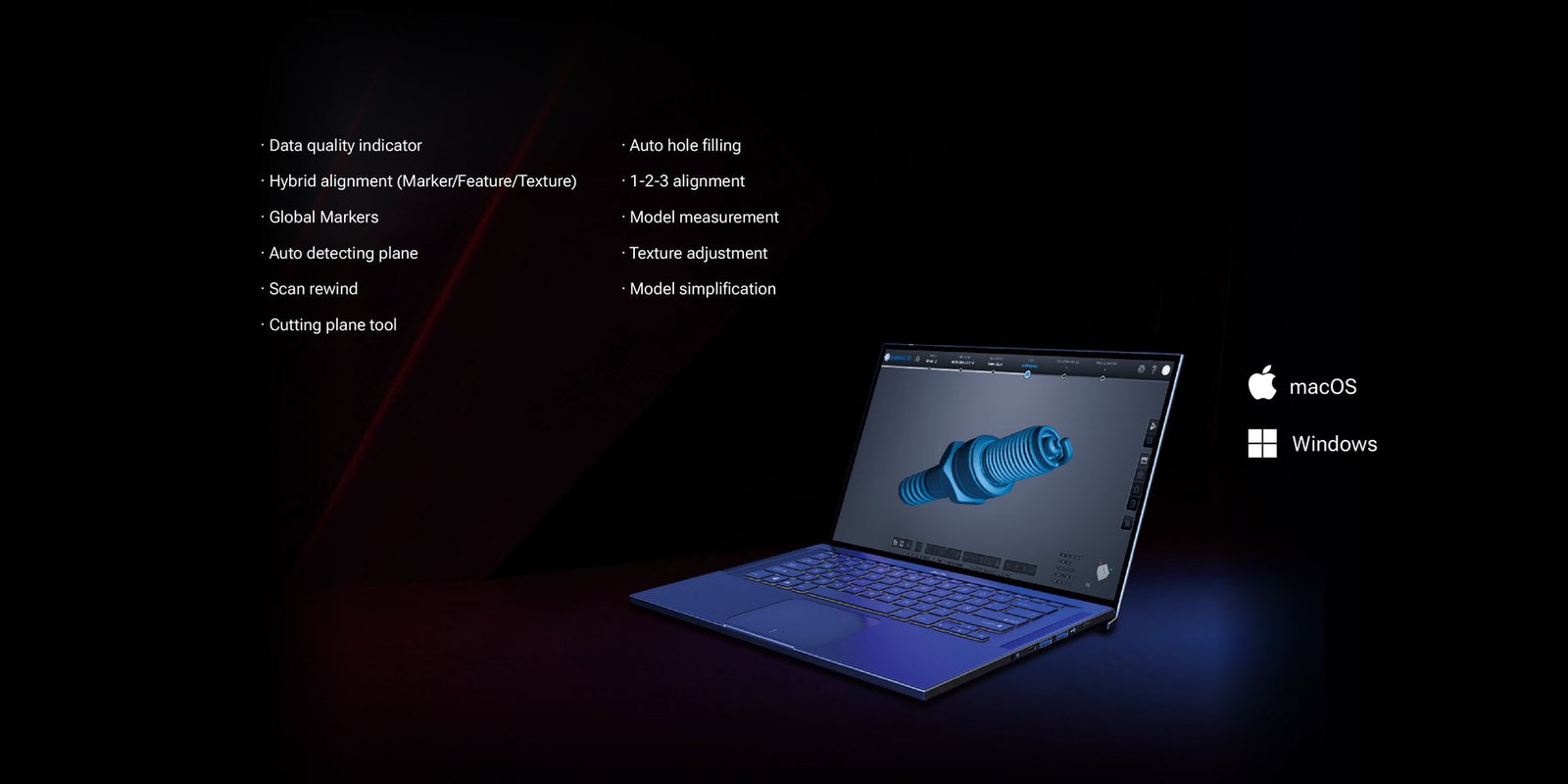

Scan, process and export in one workspace.

Software

Scan, align, clean, export

EXStar Hub keeps scanning, alignment, mesh clean-up and export in one interface, with a lower system load than the older pipeline — which matters on the laptops teams actually carry to site. Meshes export to the formats your CAD, inspection or printing workflow expects.

Buy with local support, not just a tracking number

Every scanner we sell is set up, demonstrated and supported from Kuala Lumpur — the part of the purchase an offshore listing cannot give you.

Supplied & set up

Configured, tested and calibrated before it reaches your bench.

Local training

Showroom or on-site training, so your team scans with confidence on day one.

Malaysia spare parts

Parts held locally for the machines we supply — no overseas shipping wait.

Key specifications

Light source: Hybrid — 17 parallel blue laser lines (Laser HD) and IR VCSEL (Rapid)
Scan speed: Up to 2,500,000 points/s (Laser HD) · up to 4,800,000 points/s (IR Rapid)
Frame rate: Up to 90 fps (Laser HD) · up to 40 fps (IR Rapid)
Colour: Full-colour RGB capture
Wireless: True wireless, built-in swappable battery, up to 3 hours per charge (cable option)
Weight: 420 g
Working light: Up to 110,000 lux (Laser HD) · up to 70,000 lux (IR Rapid)
Materials: Black and reflective surfaces scan without spray
Software: EXStar Hub
Best for: Reverse engineering, design, art and heritage capture, inspection, teaching labs

Specifications as published by the manufacturer. Ask us for a demo if you want to test the scanner on your own parts first.

What's in the box

EINSTAR 2 scanner
Carrying case
Calibration board + universal holder
Power adapter
Battery and battery compartment
Battery compartment charging cable
3 mm and 6 mm markers

Questions buyers ask us

How much is the EINSTAR 2 in Malaysia?

RM5,500, in stock and shipped on the next business day. Volume, education and bundled-service pricing is quoted on request.

Do I need a powerful computer?

The scanner is wireless, but processing runs in EXStar Hub on a computer. Tell us the laptop or workstation you plan to use and we will check it against the published requirements before you buy.

Wi-Fi or cable?

Both. True wireless over Wi-Fi is the default; a cable connection is available where Wi-Fi interference is heavy, such as a factory floor.

Can it scan black or shiny parts?

Yes — black and reflective surfaces are captured without matting spray, which is one of the main reasons buyers pick this model over an older structured-light scanner.

Can I scan people?

The infrared mode is eye-safe and the workflow is designed for portrait and body capture, including full-body data in about 60 seconds.

What support comes with it?

Supply, setup and demonstration from Trinventor Solution in Kuala Lumpur, plus local training, calibration and after-sales support.

Do you offer a demo or trial?

Yes. Bring a sample part to our Cheras showroom, or send it to us for a scan test, and we will show you the resulting data before you commit.

If the job grows, the range is here

The entry models handle scanning, colour and reverse engineering on a desk. When the work moves to production metrology, large assemblies or tracked inspection, these are the units we step customers up to.

EinScan LibreWireless, marker-free handheld with on-board processing.
EinScan RigilHybrid laser and infrared with a 5 MP colour texture camera.
FreeScan Combo+ WirelessWireless metrology handheld with 93 laser lines and built-in video photogrammetry.
FreeScan UE Pro2Metrology-grade wireless handheld with binocular photogrammetry.

Also in the EINSTAR entry range: EINSTAR Rockit — the pocket-sized marker-free model with 5 MP colour and 0.05 mm resolution.

See the EINSTAR 2 scan your own part

Bring or courier a sample to our Cheras showroom and we will scan it in front of you — or send the part and we will return the data. Price, configuration and stock are confirmed on the same call.
