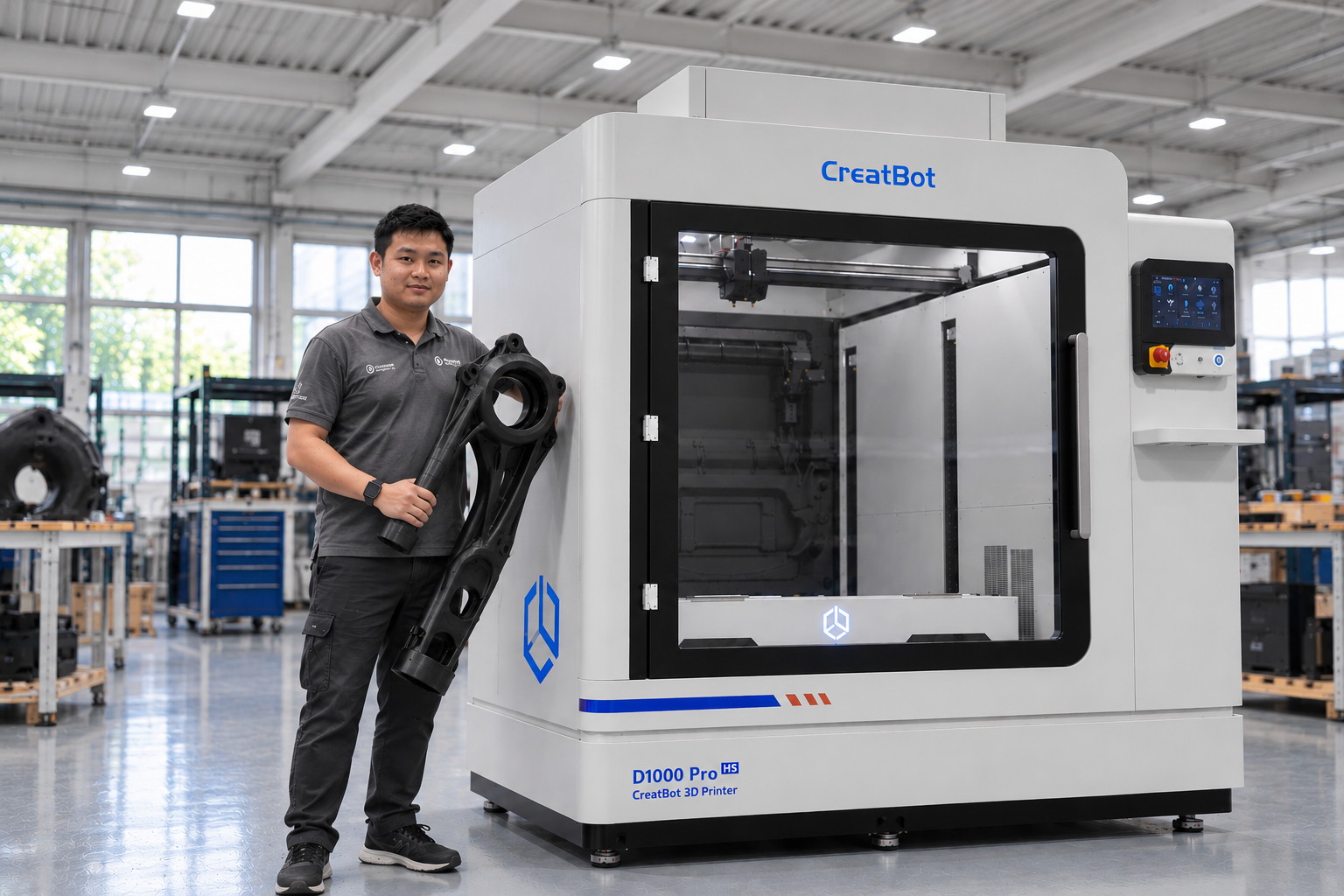

A topology-optimised suspension arm printed in one piece on the CreatBot D1000 Pro HS
A large format 3D printer builds parts with build volumes far beyond typical desktop machines — from 400 mm up to a full metre or more in each axis. In Malaysia, manufacturers, prototyping houses, education institutions and creative studios use large format 3D printers to produce big parts in a single piece, eliminating the need to glue, bolt or assemble multiple smaller prints.
Why choose a large format 3D printer?
Print large parts in one piece — no seams, no assembly, no weak joints.
Industrial materials — enclosed heated chambers print engineering plastics such as ABS, ASA, nylon, carbon fibre and high-temperature PEEK and ULTEM.
Higher productivity — batch-produce multiple parts in a single build.
Trinventor Solution supplies large format and large scale 3D printers from leading industrial brands:
CreatBot D1000 Pro HS — build volume up to 1000 × 1000 × 1000 mm, high-temperature dual extrusion. The earlier D1000 HS remains available for anyone still searching for that model.
MINGDA MD series — MD-400D, MD-600D and MD-1000D large format FDM systems for production.
Large format vs large scale — what is the difference?
Buyers searching “large scale 3D printer” and “large size 3D printer” are looking for the same thing: a machine with a big build volume. We treat these as one category and recommend based on the maximum part size you need to print.
How to choose a large format 3D printer in Malaysia
Build volume — match the largest single part you plan to print.
Heated chamber — essential for warp-free engineering materials.
Extruder temperature — 420°C supports PEEK and ULTEM.
Local support — installation, training and spare parts availability in Malaysia.
Quick verdict:a large format printer is bought for the biggest part you must print in one piece. Everything else — the heated chamber, the hot end, the frame — exists to hold that size without warping, so start from the part and work back to the machine.
What build volume do you actually need?
Measure the largest single part you have to make, add room for a brim and any supports, and buy around that number. Oversizing costs money twice: on the machine, and in the time each print takes to fill it.
Largest part
Machine class
Notes
Up to ~400 mm
MINGDA MD series (MD-400D class)
The entry point to large format — enclosures, jigs, prototypes
Size is easy to state and hard to hold: the bigger the part, the more it wants to warp as it cools. That is why the machines worth buying have enclosed, actively heated chambers and hot ends that reach 420 °C — the combination that makes ABS, ASA, nylon, carbon-fibre blends and high-temperature materials such as PEEK and ULTEM print reliably rather than merely printing. A large printer without chamber control will print big parts in easy materials and struggle with the engineering ones.

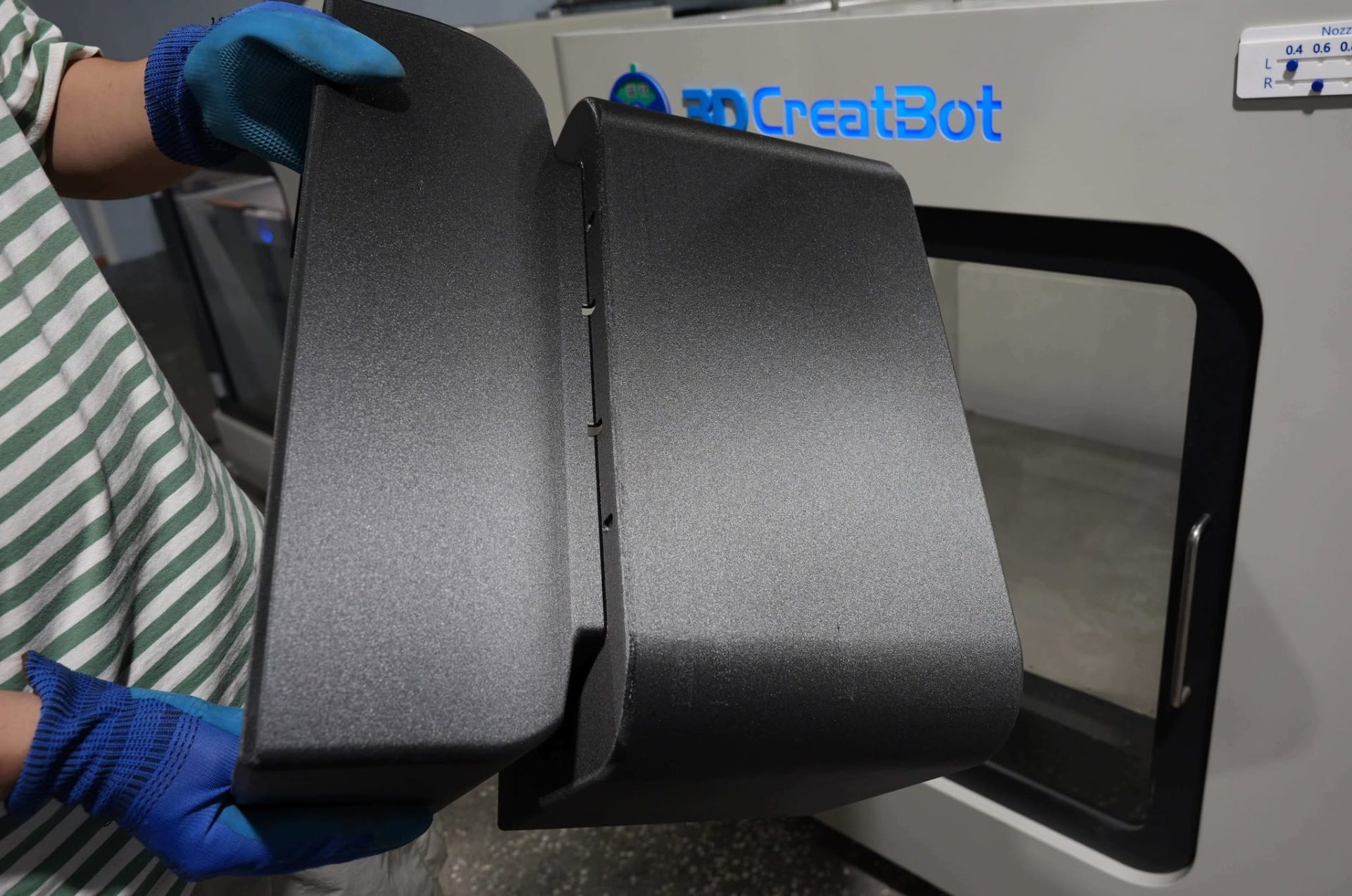

A large panel in one piece: fold, bosses and fixing points all printed together
What changes when the part is big
Orientation decides more. On a small part a poor orientation costs a few minutes; at a metre it costs a day, or the part.
Time is the resource. Large prints are measured in days, so batch several parts into one build rather than running the machine empty.
Post-processing is planned, not fixed later. Supports, sanding and assembly become part of the job from the start.
Materials stop being a preference. If it must hold load or heat at size, the material decides the machine, not the reverse.

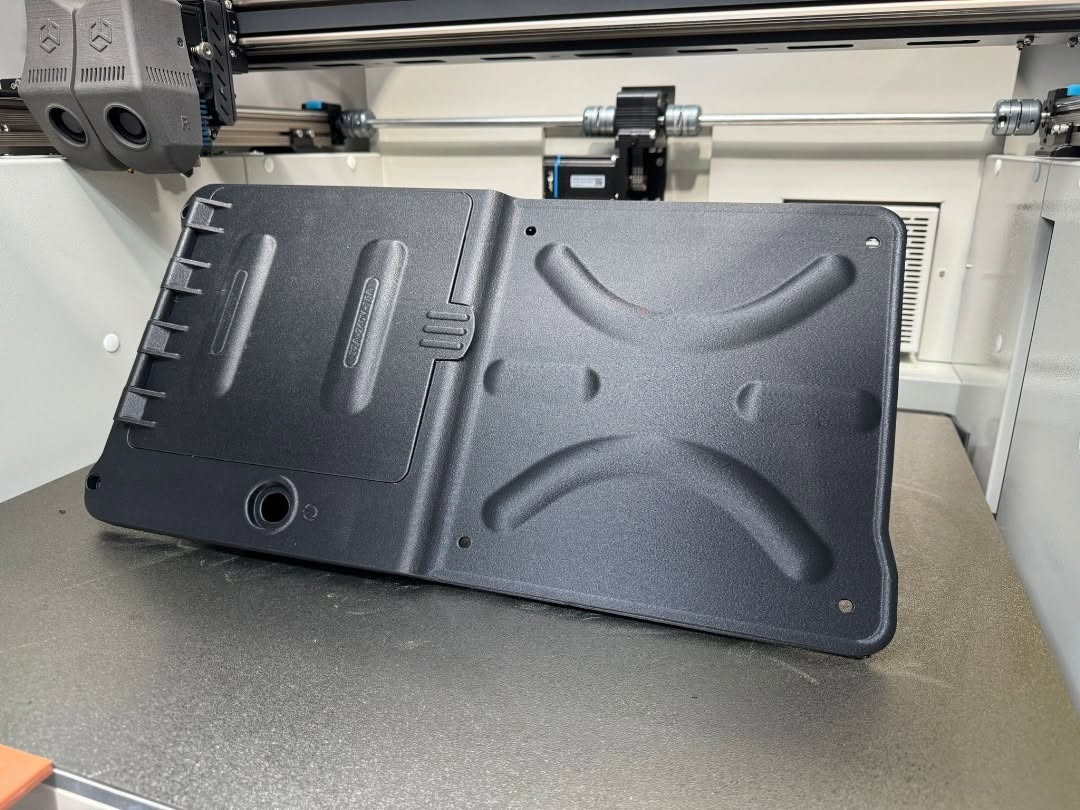

Finished and still on the build plate: at this size the part stays put until the job is done
Where large format pays in Malaysia
Architectural and construction models printed in one piece, jigs and fixtures too long for a desktop bed, signage and point-of-sale parts, education and research projects that need real scale, and tooling that would otherwise be cut from several pieces and joined. The wider workflows are covered in large format 3D printing in Malaysia and in the printer price guide.

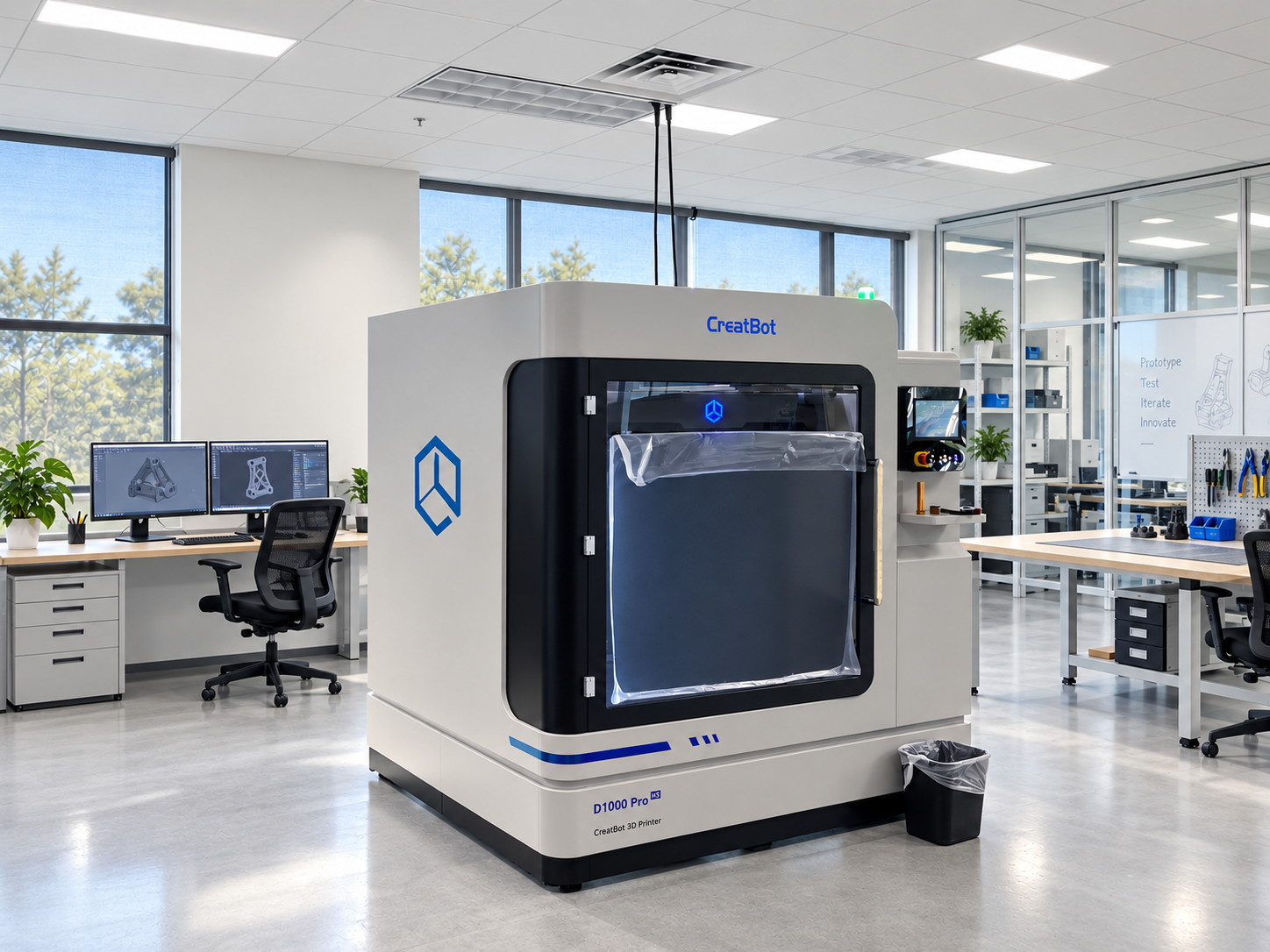

Installed and running — a 1 m³ printer takes a room, and usually becomes the centre of it
Frequently asked questions
How large a part can I print in one piece?
Up to 1000 × 1000 × 1000 mm with a CreatBot D1000 Pro HS, which is the practical ceiling for single-piece FDM work in our range; the MINGDA MD series covers the 400–600 mm band. Above that, parts are split and joined by design.
Can a large printer handle engineering materials?
If it has a heated chamber and a hot end rated to 420 °C, yes — ABS, ASA, nylon, carbon-fibre blends, PEEK and ULTEM. Without chamber control, large parts in those materials will warp or delaminate regardless of what the specification sheet claims.
How long does a large print take?
Days, not hours, for a full bed in an engineering material. That is why the useful planning question is not how fast the machine is but how many parts you can fit into one build, and how little of the year the machine spends idle.
Do I need a special room for one?
Space, power and extraction. A metre-class printer needs a stable floor, adequate electricity and ventilation, and somewhere the ambient temperature does not swing. We will tell you what your premises need before you buy rather than after it is delivered.
FDM or SLM for a large part?
FDM covers large plastic parts, prototypes and tooling. SLM is for metal parts where the material is the point — it is a different process, a different budget and a different conversation; see metal 3D printing.
Talk to our team
Get a recommendation matched to your project, budget and materials. Contact Trinventor Solution for a live demo, consultation and local after-sales support in Malaysia.
