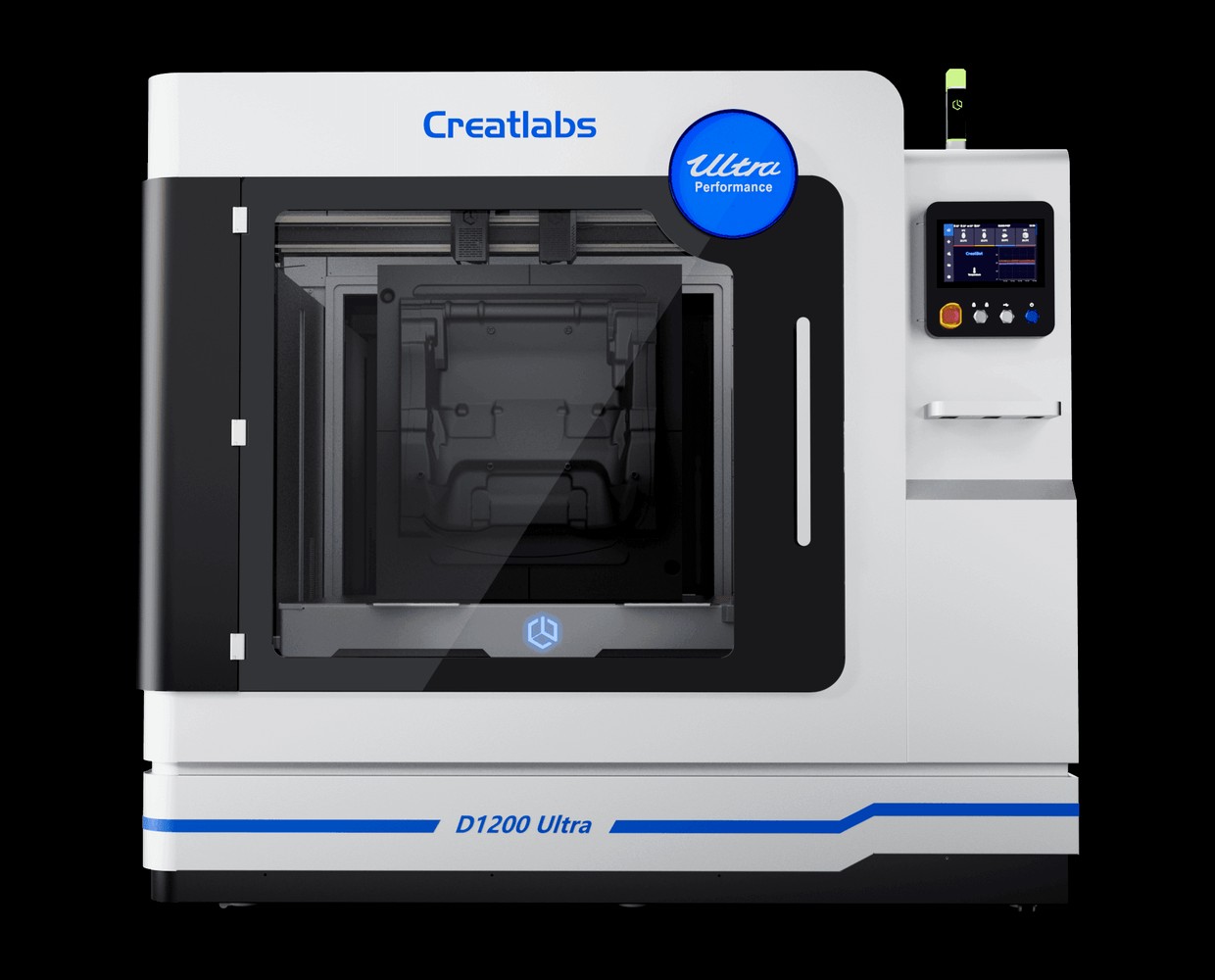

CREATLABS ULTRA SERIES · CREATBOT MALAYSIA
Production-grade large-format additive manufacturing platform
1200 × 1050 × 1050 mm of build volume on a mag-lev linear-motor platform: 1100 mm/s, an 80 °C active chamber and dual 420 °C extruders — built to take manufacturers from rapid prototyping to small-batch and serial production.
Creatlabs is the high-end industrial additive manufacturing brand of CreatBot, dedicated to the next generation of large-format, high-performance, production-grade FFF systems. It is built on advanced linear motor motion, intelligent operation features and industrial-grade reliability — the platform behind the D1200 Ultra and the larger D1200 Ultra.
FFF 2.0 is the step change those two machines represent: higher print speeds, assembly-ready precision and production-grade batch consistency. That is what turns FFF 3D printing from a prototyping tool into a production platform for low-volume, scalable manufacturing.
On this site the D1200 Ultra sits in the CreatBot range — Creatlabs is its manufacturing brand, and every Creatlabs reference on this page is the manufacturer's own platform name.
Two kinds of teams buy this machine: the ones who print their own products, and the ones who print for everybody else.
Belt- and screw-driven machines force a choice between speed, accuracy and part size. The D1200 Ultra removes the trade-off with a direct-drive magnetic levitation motion system.
Ultra precision of 0.05 mm per 100 mm comes from the motion system, not from slowing the machine down. On the D1200 Ultra, automatic calibration and real-time compensation keep that figure stable while the machine runs production jobs year after year.
Dimensional drift is what breaks jigs, fixtures and assembly fits — and it is what decides whether a printed part is a prototype or a production component.
One-piece printing of large components, in an 80 °C chamber that keeps ASA, ABS, PC and PA parts dimensionally stable across the whole build — not just near the middle of the plate.
Levelling a large plate by hand is the slowest and least repeatable step in large-format printing. The D1200 Ultra scans the whole plate with high-frequency electromagnetic sensing — non-contact, zero wear and continuous, so there is nothing to adjust by hand.
Three production strategies on one platform: one large part, mirrored duplicates, or a full plate of identical parts for an assembly kit.
1200 × 1050 × 1050 mm for one large part, printed in one piece with no assembly or gluing.
Two identical or mirrored parts per job across a 600 × 1050 × 1050 mm field per nozzle.
A plate of identical parts in one run — the same geometry, the same settings, the same result.
A plate of duplicated parts completed in a single job — hover to play.
1.75 mm filament, a 420 °C hotend, a 120 °C bed and an 80 °C chamber — with a built-in HEPA and activated-carbon filter, and no lock-in on whose spool you buy.
Nozzles from 0.3 to 1.0 mm (0.4 mm standard), run-out and clog detection, and a filament drying function at up to 70 °C. Ask us for a print profile for your material and part geometry.
Lead time, outsourcing dependency and unit cost move together. On the D1200 Ultra a large ASA tool case prints in about 45 hours and 52 kWh — where the legacy FFF route takes about 100 hours and 115 kWh for the same job.
Daily output is 1–2 kg with a 0.4 mm nozzle and 2–5 kg with an 0.8 mm nozzle — the figure that decides how many machines a job needs.
What comes off the plate decides whether the machine paid for itself. The D1200 Ultra is configured for the parts a factory actually ships.
Supports 7×24 operation with a low failure rate, industrial-grade reliability and higher equipment utilisation — the difference between a printer in a lab and capacity on a floor.
Rows of machines running unattended, monitored from one dashboard.
A wheel rim printed as one piece — the size class a 800 mm build volume unlocks.
Identical components from consecutive jobs, for kit assembly without hand fitting.
A large part building on the plate — the duty cycle the machine is designed around. Hover to play.
AIR-200 is Creatlabs' high-efficiency air filtration system for industrial printing environments. It targets the VOCs, ultrafine particles and odour released when printing engineering plastics and high-performance composites, using a multi-stage filtration architecture to keep workshop air clean while the chamber holds its temperature.
For a workshop with several machines, the AIR-200 is usually specified with the machine, not after the first complaint about smell.
The AIR-200 sits beside the machine and moves with the cell — filtration is a workshop decision, not a fixed installation.
Electrical protection, interlocks and machine-level motion limits — the subsystems that let you leave a job running.
Schneider electrical protection systems, a safety door interlock, chamber thermal protection and three-layer chamber insulation are standard on the D1200 Ultra.
Once a machine becomes capacity, the question changes from "how does it print" to "what is every machine doing right now". The cluster system shows the online, printing, idle, paused and error state of the whole fleet in one place, with device IP search and group management.
Camera view and job detail for a single machine inside the cluster — the same screen an operator uses on the floor and a manager uses from the office.
The manufacturer's service structure, backed by Trinventor Solution in Malaysia: remote diagnosis, local shipping, on-site service, installation and training, and scheduled maintenance.
Fault logs and machine data read remotely before anyone travels.
Crated, shipped and delivered to your floor, not to a port.
Engineers who service large-format FFF machines as their day job.
Commissioning and operator onboarding on your own parts and materials.
Planned servicing so calibration and uptime do not drift.
The comparison that matters is total cost of ownership: what the machine costs, what the material costs, what the spares cost, and how much it prints per day.
The manufacturer's published specification for the machine we supply, install and support in Malaysia.
| Printing technology | FDM / FFF |
|---|---|
| Build volume | Single-nozzle: 1200 × 1050 × 1050 mm Dual-nozzle support: 1200 × 1050 × 1050 mm Mirror duplication: 600 × 1050 × 1050 mm |
| Nozzle count | Dual |
| Dual-nozzle mode | Independent dual extruder (IDEX) |
| Printing accuracy | ±0.05 mm per 100 mm |
| Filament diameter | 1.75 mm |
| Filament compatibility | PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF, PA-GF, PA-CF, PA-ABS, PC-ABS, PP-GF, PP-CF and more |
| Nozzle diameter | 0.4 mm standard 0.3, 0.5, 0.6, 0.8, 1.0 mm optional |
| Nozzle temperature | 420 °C |
|---|---|
| Heated bed temperature | 120 °C |
| Chamber temperature | 80 °C |
| Filament drying chamber | 70 °C |
| Max printing speed | 1100 mm/s |
| Hotend flow rate | 90 mm³/s |
| Acceleration | 10 000 mm/s² |
| Daily output | 1–2 kg (0.4 mm nozzle) 2–5 kg (0.8 mm nozzle) |
| Power requirements | 220–240 V, 50–60 Hz |
|---|---|
| Rated power | 14 600 W |
| Display | 17-inch full-colour, multi-language |
| File transfer | USB / U disk / WiFi / LAN |
| Software | CreatWare, Orca Slicer, Cura, Simplify3D, Prusa and compatible |
| Supported files | Gcode, STL, 3MF, OBJ, AMF, STP, STEP |
| Operating systems | Windows / macOS |
| Firmware | Klipper — high speed |
| Built-in air filtration | Compact HEPA + activated carbon |
|---|---|
| External filtration | AIR-200 standalone unit (optional) |
| Filament detection | Run-out / clog detection |
| Camera control | Remote camera monitoring |
| Dual-nozzle auto resume | Yes |
| Bed leveling | Eddy current, automatic |
| XY offset | HD camera AI alignment, 0.02 mm |
| Z offset | Snap-action switch, 0.005 mm |
| Door detection | Safety door lock |
| Chamber insulation | Three-layer |
| Auto material feeding | Yes |
| XY motors | Maglev linear motor system |
| Print platform | Aviation aluminium plate + magnetic platform |
| XY / Z positioning | 0.001 mm / 0.00052 mm |
| Z-axis structure | Independent quad-Z axis |
| Dimensions & weight | 2250 × 1540 × 2000 mm, 1100 kg |
| Package & weight | 2400 × 1650 × 2260 mm, 1300 kg |
Creatlabs is the high-end industrial additive manufacturing brand of CreatBot. The D1200 Ultra and D800 Ultra are the Creatlabs Ultra series, built on the FFF 2.0 linear-motor platform; the D400 HS, D600 Pro3 HS and D1000 Pro HS remain the CreatBot HS series on the belt-driven platform. Both are supplied and supported in Malaysia by Trinventor Solution.
1200 × 1050 × 1050 mm in single-nozzle mode, the same 1200 × 1050 × 1050 mm when both nozzles are in use, and 600 × 1050 × 1050 mm per side in mirror duplication mode. Large housings, tooling, jigs and full assembly covers can be printed in one piece without gluing.
It removes the belt and screw transmission, so there is no stretch, whip or friction to compensate for. The result is 1100 mm/s printing with 10 000 mm/s² acceleration that still holds ±0.05 mm per 100 mm accuracy, and accuracy that does not decay as the machine ages.
PLA, ABS, ASA, PETG, PC, Nylon, TPU, PP and the carbon- and glass-filled grades including PA-CF, PC-CF, PET-CF, PPS-CF and UltraPA-CF. The 420 °C hotend, 120 °C bed and 80 °C chamber are what make the engineering grades practical rather than experimental. The material system is open — any quality 1.75 mm filament will run.
With eddy-current sensing: a non-contact scan of the whole plate at 0.001 mm probing accuracy, completing in about 60 seconds. XY offset is set by HD camera with AI recognition (0.02 mm) and Z offset by a snap-action switch (0.005 mm), so the setup is fully automatic.
Yes. The D1200 Ultra is built for 7×24 operation with run-out and clog detection, dual-nozzle auto resume, safety door interlock, thermal and motion protection, a physical Wi-Fi switch and remote camera monitoring. The cluster system lets you watch a fleet rather than one machine.
On the manufacturer's reference job — an ASA tool case with top cover and bottom housing, 1.2 kg of material — printing takes about 45 hours and 52 kWh, against roughly 100 hours and 115 kWh on the legacy FFF route. Material cost is around US$39 with about US$5 of electricity at US rates. Local rates differ; we will calculate your case with you.
220–240 V, 50–60 Hz, 14 600 W rated. The machine measures 1480 × 1080 × 1280 mm and weighs 370 kg, so it needs a solid, level floor and reasonable clearance for the door and service access. We check siting and power during the site survey.
The price depends on configuration: nozzle set, AIR-200 filtration, spare kit, plus delivery, installation, commissioning and operator training. Enquire Now and we will send a complete Malaysian figure with lead time.
We do not keep a D1200 Ultra demonstration unit in Malaysia. Instead we arrange a visit to a machine already in production at a reference customer site, or a factory visit at CreatBot, and we can review production parts and process data with you remotely before you commit. Smaller CreatBot models such as the D1000 Pro HS, D600 Pro3 HS and D400 HS are easier to see in person if a hands-on comparison helps.
Harga bergantung pada konfigurasi mesin, set nozzle, unit penapisan AIR-200 dan kit alat ganti, termasuk penghantaran, pemasangan, pentauliahan dan latihan operator. Hubungi kami untuk sebut harga lengkap di Malaysia.
Ya — ruang binaan 1200 × 1050 × 1050 mm, motor linear mag-lev 1100 mm/s, kebuk panas 80 °C dan dua extruder 420 °C membolehkan komponen besar dan batch kecil dicetak dalam satu mesin. Kami menyediakan pemasangan, latihan dan sokongan alat ganti di Malaysia.
Tell us what you print — material, part size and monthly volume — and we will quote the D1200 Ultra configured for your facility, including delivery, installation, commissioning and operator training in Malaysia. Send us a part file and we will come back with a print estimate and a machine specification.
Prefer to talk first? Contact our team or WhatsApp us — or browse the rest of the CreatBot range, including the D800 Ultra, D1000 Pro HS, D600 Pro3 HS and D400 HS — or compare all large-format 3D printers in Malaysia.
