Creatbot PEEK-300

Ultra high temp. nozzle/bed
Advanced Thermal System
Direct Annealing System
Water cooling/ Heat isolation system
Medical/Industry application

Product Details

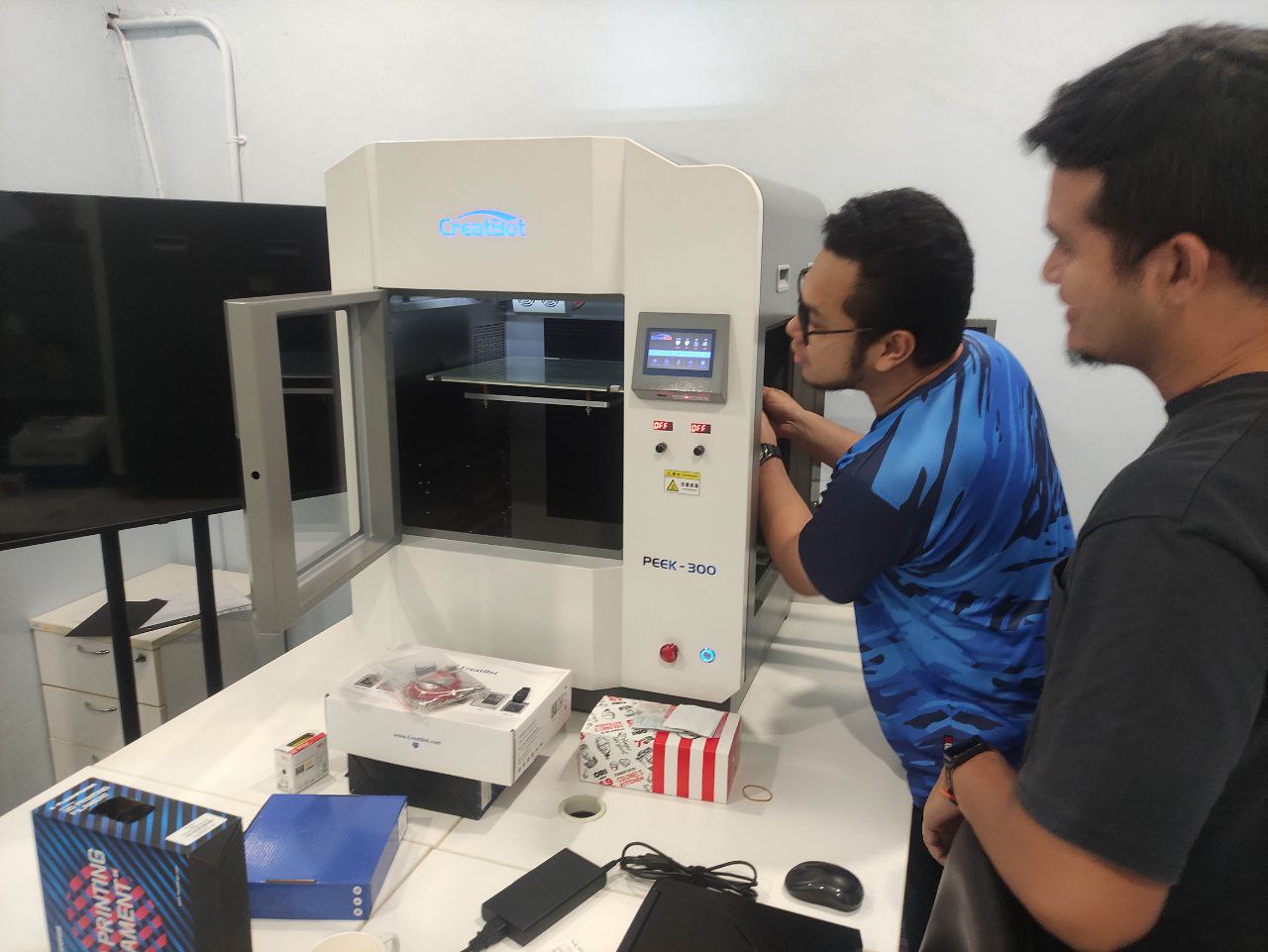

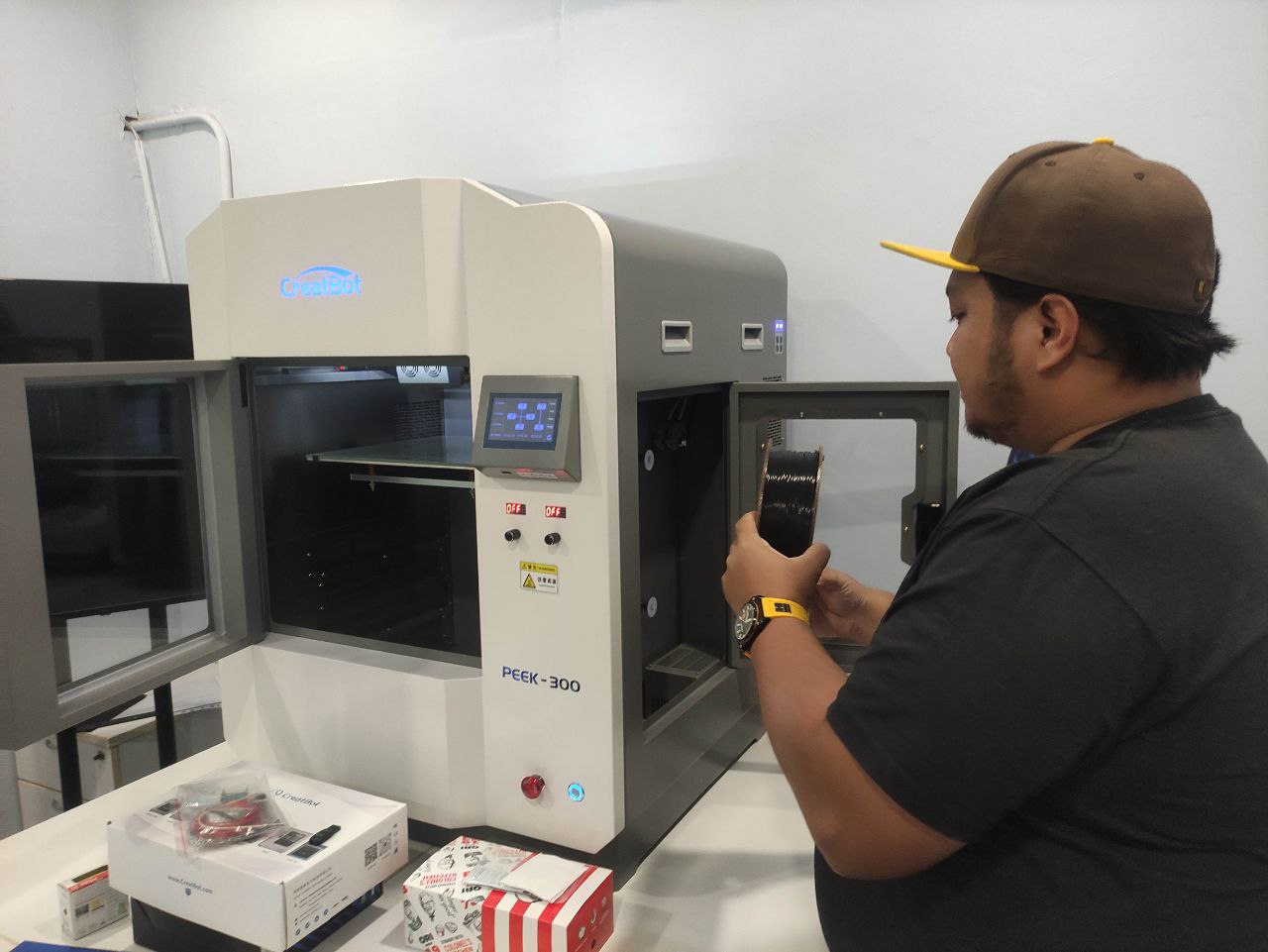

The CreatBot PEEK-300 is a high-performance industrial Peek 3D printer

Specifically designed for printing PEEK and other high-temperature materials. It features a build volume of 300 x 300 x 400 mm, a heated chamber that can reach up to 120 degrees Celsius, Heatbed reach up to 200 degrees Celsius high-temperature dual extruder that can reach up to 480 degrees Celsius.

key features of the CreatBot PEEK-300:

Auto-rising High-temperature dual extruders: Can reach up to 480 degrees Celsius, which is necessary for printing PEEK and other high-temperature materials
Liquid cooling system: Circulating liquid to prevents extruder from overheating while printing high temperature filament
Direct Annealing System: Allows for the annealing of PEEK and other high-temperature materials during the printing process.
Enclosed build volume: Helps to maintain a consistent temperature inside the build chamber, which is important for printing high-quality parts
Automatic bed leveling: Compensates for unevenness in the print bed, resulting in better first-layer adhesion
Filament runout detection: Pauses the print if the filament runs out, preventing wasted material and failed prints
Power loss recovery: Resumes the print from where it left off after a power outage

The DAS (Direct Annealing System) is a unique feature of the CreatBot PEEK-300 and is not found on any other 3D printer on the market. It is one of the things that makes the PEEK-300 such a powerful and versatile industrial 3D printer for PEEK and other high-temperature materials.

The PEEK-300 is a popular choice of high-temperature 3D printer for businesses that need to print parts for demanding applications, such as aerospace, automotive, and medical. It is also a good choice for research and development laboratories.

Direct Annealing System

Direct Annealing System (DAS), the world’s first and extraordinary technology by CreatBot PEEK 3D printer. Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials. (The technology is patent protected and available by CreatBot only)

DAS annealing process features :

1）Instantaneously:Finished during printing process, no need secondary treatment in oven.
2）Completely:The annealing process point to every extruded filament, not the whole printed model. The internal structure of the whole model could not be fully crystallized or will deform in oven.
3）Controllable:The surrounding temperature can be adjusted to 0-200 °C. the different requirements of toughness and strength can be met by adjusting the DAS temperature function at different material parts.

Smart Auto-rising dual extruders 480 ℃

The PEEK-300 equiped with CreatBot new technology smart Auto-rising dual extruders. Water cooling, DAS system, Auto-rising extruders. The dual nozzle temperature up to 480°C. You can print any high-temperature 3D printer materials in the world. We can say it is best choice of polymer materials.

Liquid Cooling System

Technical Specification

Printing
Build Volume	Single Extrusion: 300300400 mm Dual Extrusion: 240300400 mm
Filament Diameter	1.75mm
Number of Nozzles	Dual Extruder
Print Speed	10-120mm/s
Nozzle Diameter	0.4mm (0.3~1.0mm optional)
Filament Compatibility	Engineering Plastics: PLA, ABS, ASA, PC, Nylon, PETG, PVDF,TPU,Carbon Fiber； High temperature Material: UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI(ULTEM)； Ultra-performance material: PEEK,CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), PEKK, etc.

Electrical
Input Power	200V~240V, 20A
Rated Power	4600W
Screen	4.3” full color touch screen, multi-language
Print Method	USB Connectivity/USB Disk

Mechanical
Cooling	Air pump cooling & water cooling
Platform	PCB aluminum + PEEK print board
Positioning Precision	X Y axis 0.0127mm, Z axis 0.00125mm
Extruder	Directly Drive
Machine Construction	Fully enclosed hot chamber
Bed Leveling	Manually/Automatic

Temperature
Nozzle Max. Temperature	480℃
Chamber Temperature	120℃
Platform Max. Temperature	200℃
Direct Annealing Temperature	0~400℃

Software
Software	Creatware, Simplify3D, Cura, Slic3r
Operating Systems	Windowsall, macOS
Print File Type	STL, OBJ, AMF, Gcode

Special Function
Outage Restored	Save data when power is off
Filament Detection	Pause printing when filament run out
Direct Annealing System (DAS)	Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials.
Heat insulation	Triple heat insulation
Emergency stop switch	Support emergency stop
High temperature accessories	High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing.

Size & Weight
Machine Size	650600750 mm
N.W	100 kg
Packing Size	8207201080mm
G.W	145 kg

Product Video

Product Video List

6 Videos

Creatbot Peek-300

Resources

User manual
