Fastform DeskFab X1

Compact desktop dental metal 3D printer (SLM/LPBF) for Malaysia: Ø100×80 mm build, 300 W fiber laser, open CoCr/Ti powders, ±50 µm accuracy, and 30,000-hour filtration with one-click workflow.

Product Details

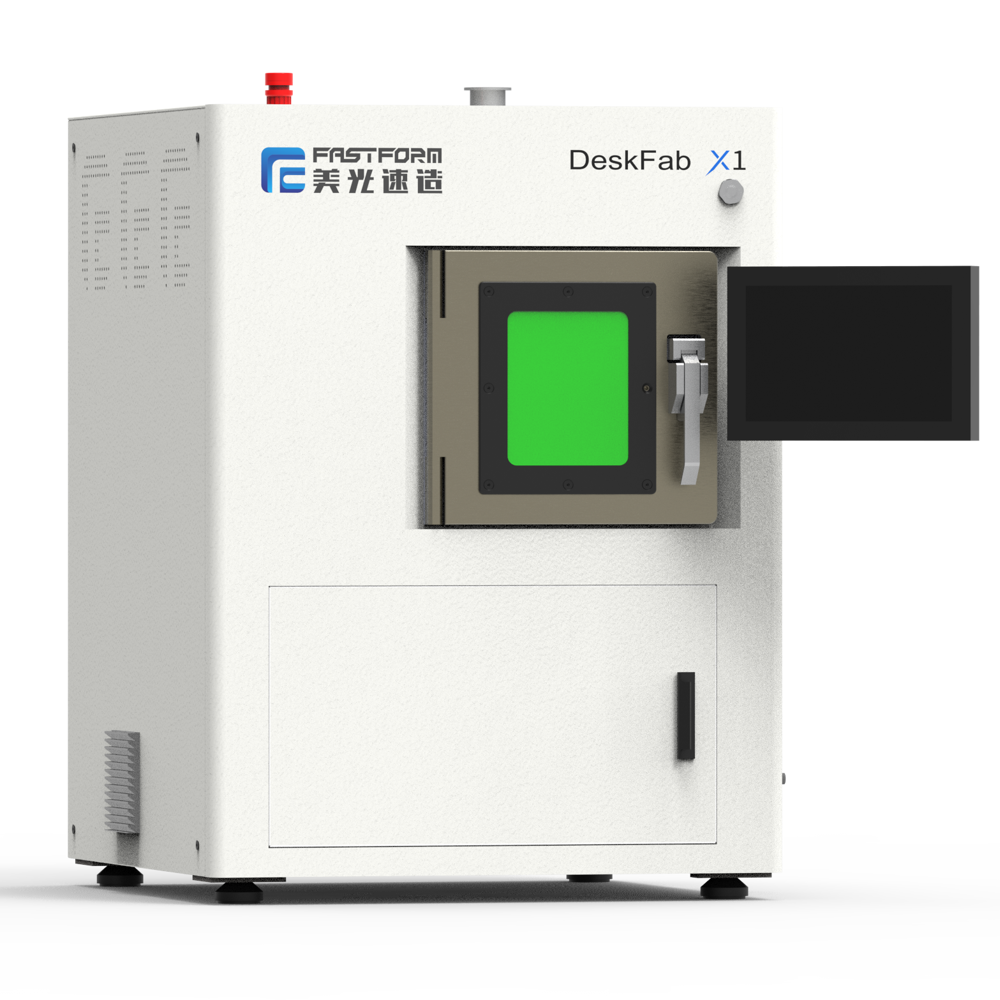

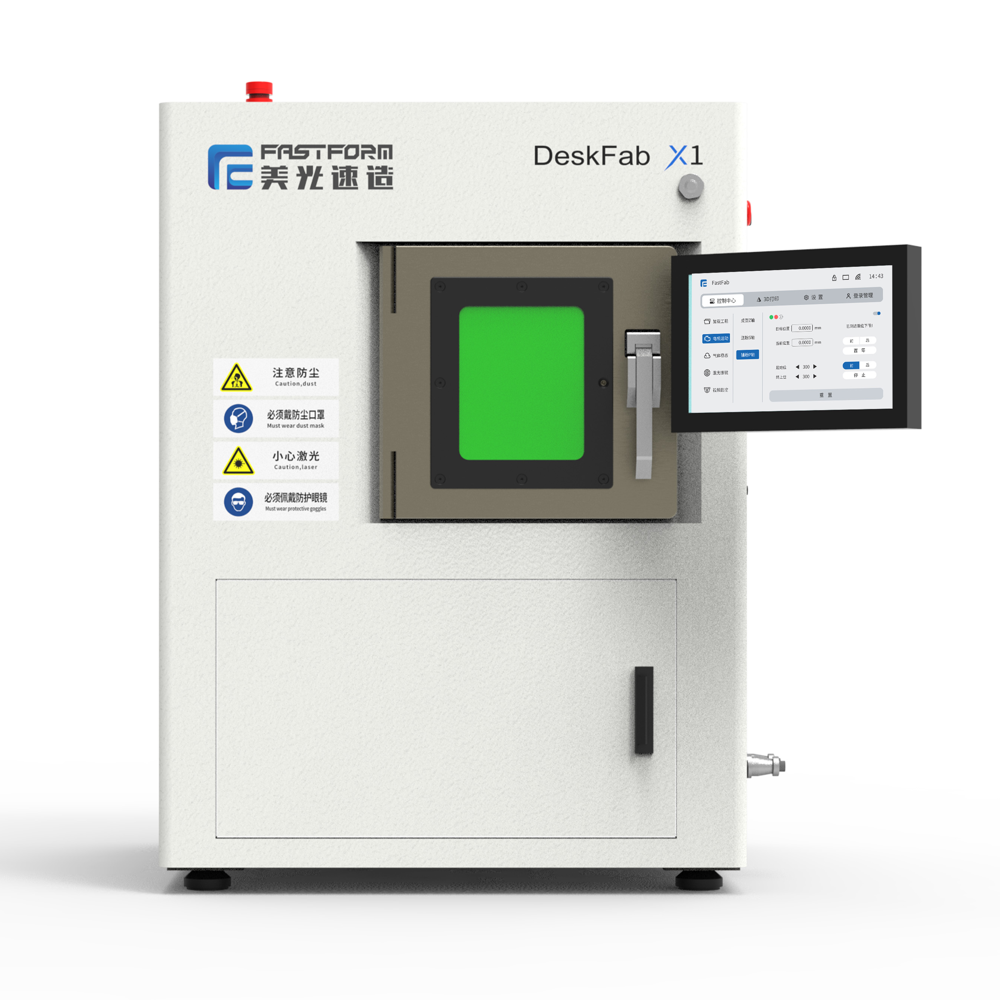

DeskFab X1 — Small SLM All-in-One Desktop Dental Metal 3D Printer (Malaysia)

Bring metal additive manufacturing in-house with a compact, all-in-one LPBF/SLM system designed for dental labs and clinics in Malaysia. The DeskFab X1 delivers a practical 0.39 m² footprint with plug-and-play setup and a simplified one-click workflow, so your team can move from design to printed parts fast.

Why it’s ideal for Malaysian dental labs

Dental-size build: Ø100 × 80 mm (with baseplate) — perfect for crowns, bridges, partial frameworks and small fixtures. Printing accuracy ±50 µm and spot size 50–80 µm help you hit fit tolerances reliably.
Industrial laser & speed: Single 300 W CW fiber laser, scan speed up to 7 m/s, and layer thickness 20–150 µm to balance surface quality and throughput.
Open-material ecosystem: Run third-party powders — validated for CoCr and Titanium, with options for stainless steel, copper and aluminium to broaden applications and manage cost. Material parameters included and customisable.
Clean, low-maintenance operation: Permanent filtration rated ≥30,000 hours, water-cooled system, and inert N₂/Ar protection for stable builds in Malaysia’s humid climate.
Made for productivity: FastLayer (nesting/slicing) and FastFab (printer control) software are included with lifetime licence and updates; one-click typesetting/path planning, integrated build camera, and full print logs keep jobs on track.

Key Specifications

Model: DeskFab X1
Build size: Ø100 × 80 mm (incl. baseplate)
Laser: 300 W single CW fiber laser
Spot size: 50–80 µm
Layer thickness: 20–150 µm
Accuracy: ±50 µm
Scan speed: 7 m/s
Powder capacity: 1.6 L
Recoater: Upper-feed, one-way; soft blade
Baseplate: Magnetic quick-change
Filtration: Permanent filter ≥30k hours
Cooling: Water-cooled
Protective gas: N₂ / Ar
Power: 220 V AC single phase, ~1 kW average

Optional Auxiliary Equipment

Nitrogen generator, sieving machine, water-filter vacuum, powder drying oven, heat-treatment furnace, support-removal tools, and chiller to build a complete, space-efficient workflow.

FastLayer Slicing Software

Backed by 8 years of in-house R&D, FastLayer is purpose-built for dental and industrial metal AM. It automates print prep with one-click nesting/typesetting and toolpath planning, so you can move from design to build in minutes.

Flexible setup: Customise build-plate size; robustly handles complex models.
Broad file support: STL, OBJ, STEP, 3MF, and common CAD formats.
Optimised parameters: Integrated database for multiple metal powders, plus proprietary, high-precision libraries for dental CoCr and titanium. Supports user-defined and custom parameter sets.
Materials: Compatible with CoCr, Titanium, Stainless Steel, Aluminium, and more.
Layer thickness: 20–100 µm.

FastFab 3D Printing Control Software

FastFab features a clean, intuitive interface with a logical, well-organized layout and all the tools you need in one place. Its streamlined workflow and straightforward controls make it easy to get started and finish tasks quickly—no steep learning curve. With snappy performance and responsive interactions, FastFab delivers a smooth, uninterrupted printing experience from setup to completion.

Real Time Monitoring

Built-in camera for easy, real-time print monitoring with zero risk of laser exposure.

High Speed Printing & Fine Details

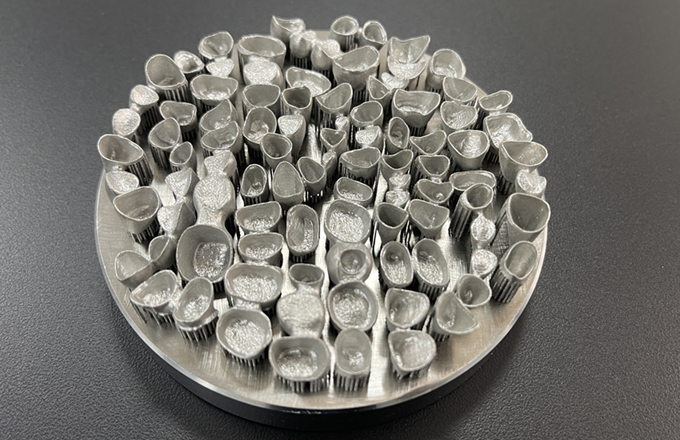

It only takes around 3 hrs to print a full plate of 100 crowns and around 3hrs to print a full plate of partials around 7 pcs.

High Precision Printing

A small laser spot and fine layer thickness deliver crisp detail and consistent dimensional accuracy for high-quality parts. Intelligent powder recoating and high-speed scanning accelerate builds without compromising results, while optimised scan-path strategies maintain excellent surface finish and repeatable quality.

Looking for the right solution for your application? Send us your requirement and our team will come back with the right model, price and lead time.

Enquire Now

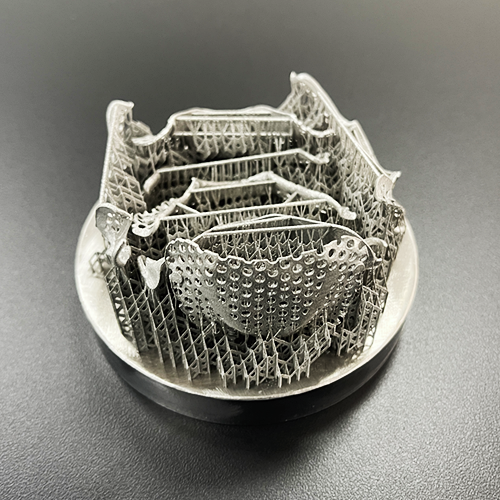

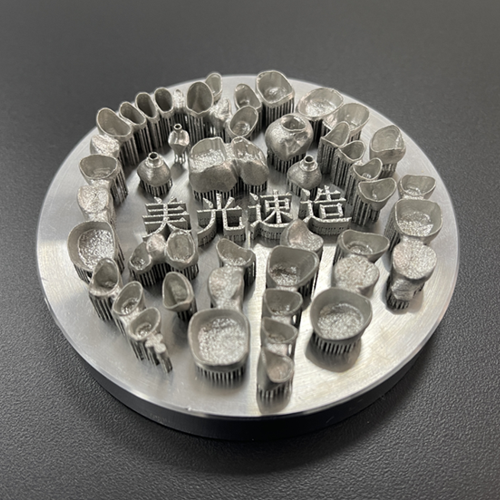

Sample 1

Sample 2

Sample 3

DeskFab X1: metal printing in the dental lab

The DeskFab X1 is the compact end of metal additive manufacturing: a single 300 W fibre laser over a Ø100 × 80 mm build plate, printing to about ±50 µm, in a machine that occupies 0.39 m² of bench and weighs 120 kg. Crowns, bridges, partial frameworks and small fixtures all sit inside that envelope.

What makes it a laboratory machine rather than a factory machine is the workflow and the upkeep. Typesetting is automatic, the build resumes by itself after a power interruption, the chamber is monitored by camera, and the filter is permanent with a rating of 30,000 hours or more — so there is no recurring filter consumable to manage.

Frequently asked questions

How big a part can it print?

Ø100 × 80 mm with the baseplate included — sized for crowns, bridges, partial frameworks and small fixtures rather than full arch models in volume.

What materials does it run?

Open powders including cobalt-chrome and titanium, with layer thickness adjustable from 20 to 150 µm and a spot size of 50–80 µm.

How accurate is it?

±50 µm printing accuracy, which is the class dental frameworks need for a reliable fit.

What does it need on site?

A bench footprint of roughly 0.39 m² and 120 kg of machine weight. Tell us your lab layout and we will confirm the services, extraction and installation requirements when we quote.

What is the upkeep?

Low by metal-printing standards: the filtration is permanent with a rating of at least 30,000 hours, powder capacity is 1.6 litres, and prints resume automatically after a power interruption instead of being lost.

What does the DeskFab X1 cost in Malaysia?

Quoted per configuration with the materials and support you need included. Tell us the case volume you handle and we will quote against it.

Technical Specification

Specification	Details
Printer Model	DeskFab X1
Dimensions (W × D × H)	650 × 640 × 800 mm
Weight	120 kg
Building Size	Ø100 × 80 mm (baseplate included)
Spot Size	50–80 µm
Laser Power	300 W
Minimum Oxygen	≤100 ppm
Scan Speed	7 m/s
Layer Thickness	20–150 µm
Laser Source	Single
Laser Type	CW fiber laser
Recoating Type	Upper feeding & one-way recoating
Printing Accuracy	±50 µm
Powder Capacity	1.6 L
Power Failure	Auto resume
Recoater Type	Soft blade recoater
Baseplate Fixing	Magnetic fixed
Filtration System	Permanent filter ≥30k hours
Typesetting Mode	Automatic typesetting & path planning
Printable Materials	CoCr, Titanium Alloy, Pure Titanium
Software System	FastLayer Slicing Software & FastFab Operation Software
Cooling Type	Water-cooled
Ambient Temperature	15–28 °C
Ambient Humidity	≤78%
Power Input	220 V AC, single phase
Average Power Output	1 kW
Protective Gas	N2, Ar
