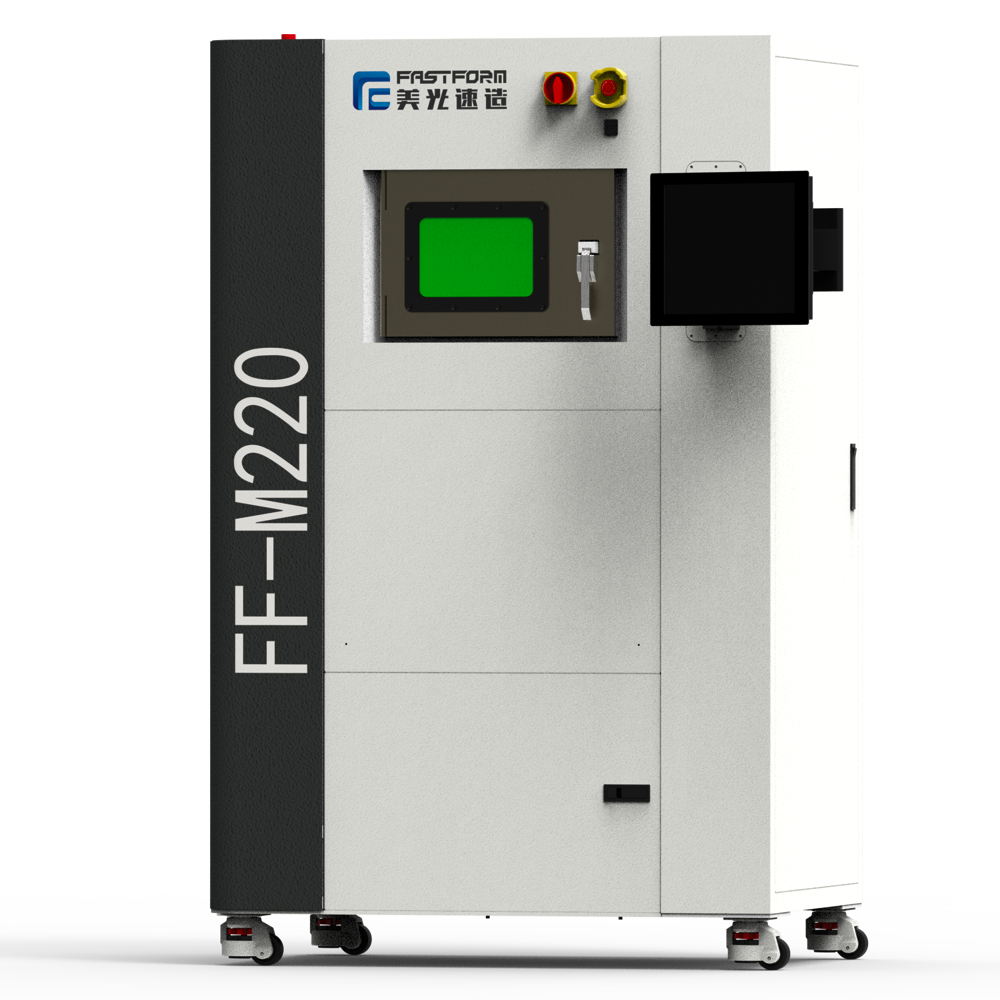

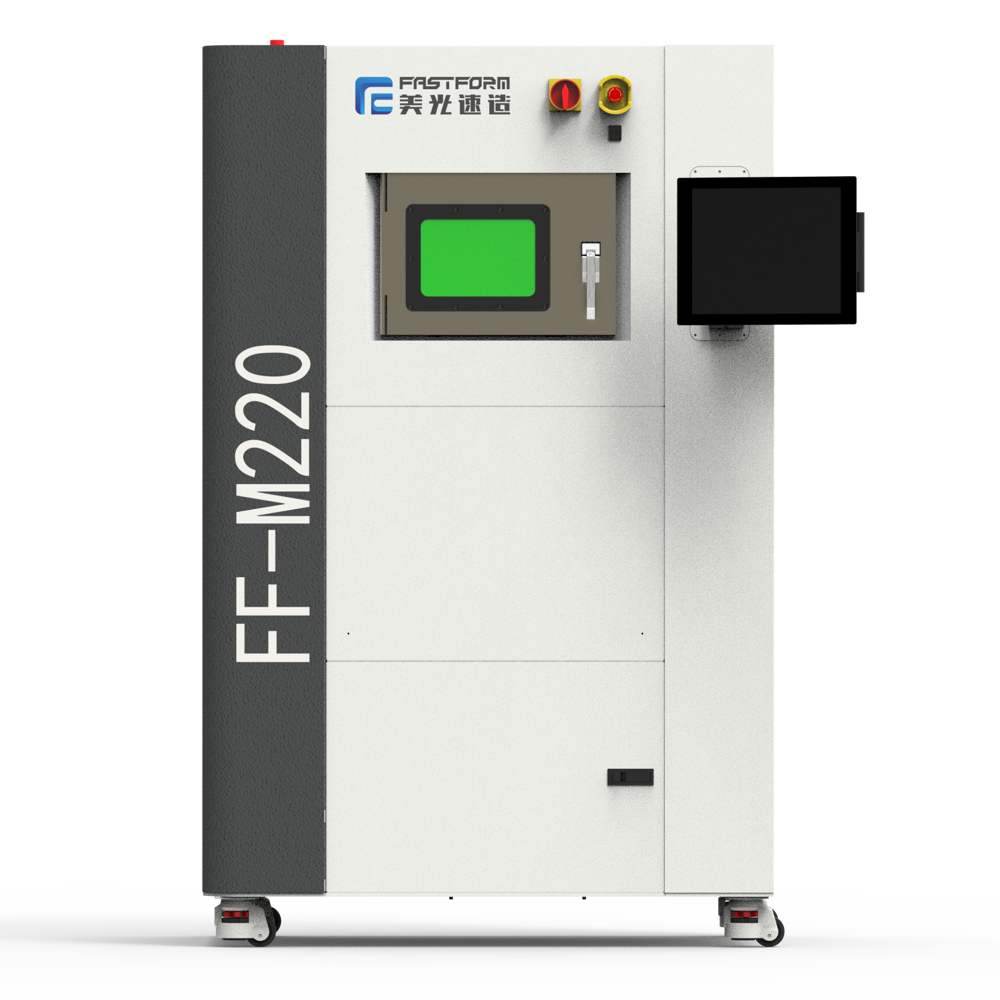

FF-M220 — Dual-Laser Metal 3D Printer (SLM/LPBF) for Dentistry & Industry | Malaysia

The FastForm FF-M220 is a production-class metal 3D printer built to deliver high throughput for dental labs and industrial manufacturers in Malaysia. With two 500 W continuous fiber lasers and precision optics, it accelerates build times while maintaining part quality. Pair it with FastForm’s integrated FastLayer (nesting/slicing) and FastFab (printer control) software for a streamlined, one-click workflow from setup to print.

Two build options to fit your work:

220 × 140 × 100 mm — optimised for high-volume dental frameworks, crowns, and bridges.
220 × 140 × 200 mm — extended Z for industrial parts, fixtures, and R&D components.

Why FF-M220

Throughput with quality: Dual 500 W lasers and high-precision galvanometers boost speed while preserving detail and dimensional accuracy. Scan speeds up to 10,000 mm/s, layer thickness 20–50 µm, and beam (spot) size 50–80 µm support fine features and smooth surfaces.
Open materials: Print CoCr, titanium/pure Ti, plus stainless steel, aluminium, and nickel alloys, supported by a built-in parameter database.
Clean, stable operation: Inert N₂/Ar protection, water cooling, permanent filtration (design life ≤30,000 hrs), and magnetic quick-mount baseplate enhance reliability in Malaysia’s humid conditions.
Operator-friendly: Integrated camera for safe, real-time monitoring; complete print logs for traceability and QA.

Key Specifications (highlights)

Lasers: Dual 500 W CW fiber lasers
Build volume: 220 × 140 × 100 mm (option for 220 × 140 × 200 mm for industrial use)
Layer thickness: 20–50 µm | Beam size: 50–80 µm | Scan speed: 0–10,000 mm/s
Gases: Nitrogen / Argon | Cooling: Water-cooled | Filtering: Permanent filter (≤30k hrs)
Software: FastLayer & FastFab with one-click typesetting/path planning

Typical Malaysian applications: dental frameworks/crowns & bridges, fixtures & tooling, R&D coupons, and small-batch production.

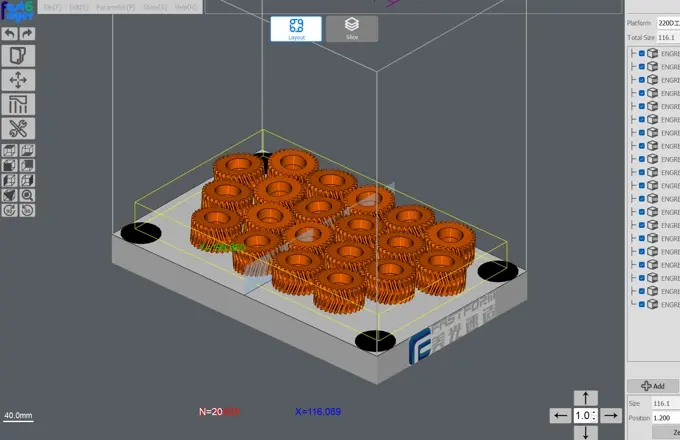

FastLayer Slicing Software

Backed by 8 years of in-house R&D, FastLayer is purpose-built for dental and industrial metal AM. It automates print prep with one-click nesting/typesetting and toolpath planning, so you can move from design to build in minutes.

Flexible setup: Customise build-plate size; robustly handles complex models.
Broad file support: STL, OBJ, STEP, 3MF, and common CAD formats.
Optimised parameters: Integrated database for multiple metal powders. Supports user-defined and custom parameter sets.

Consistency You Can Trust

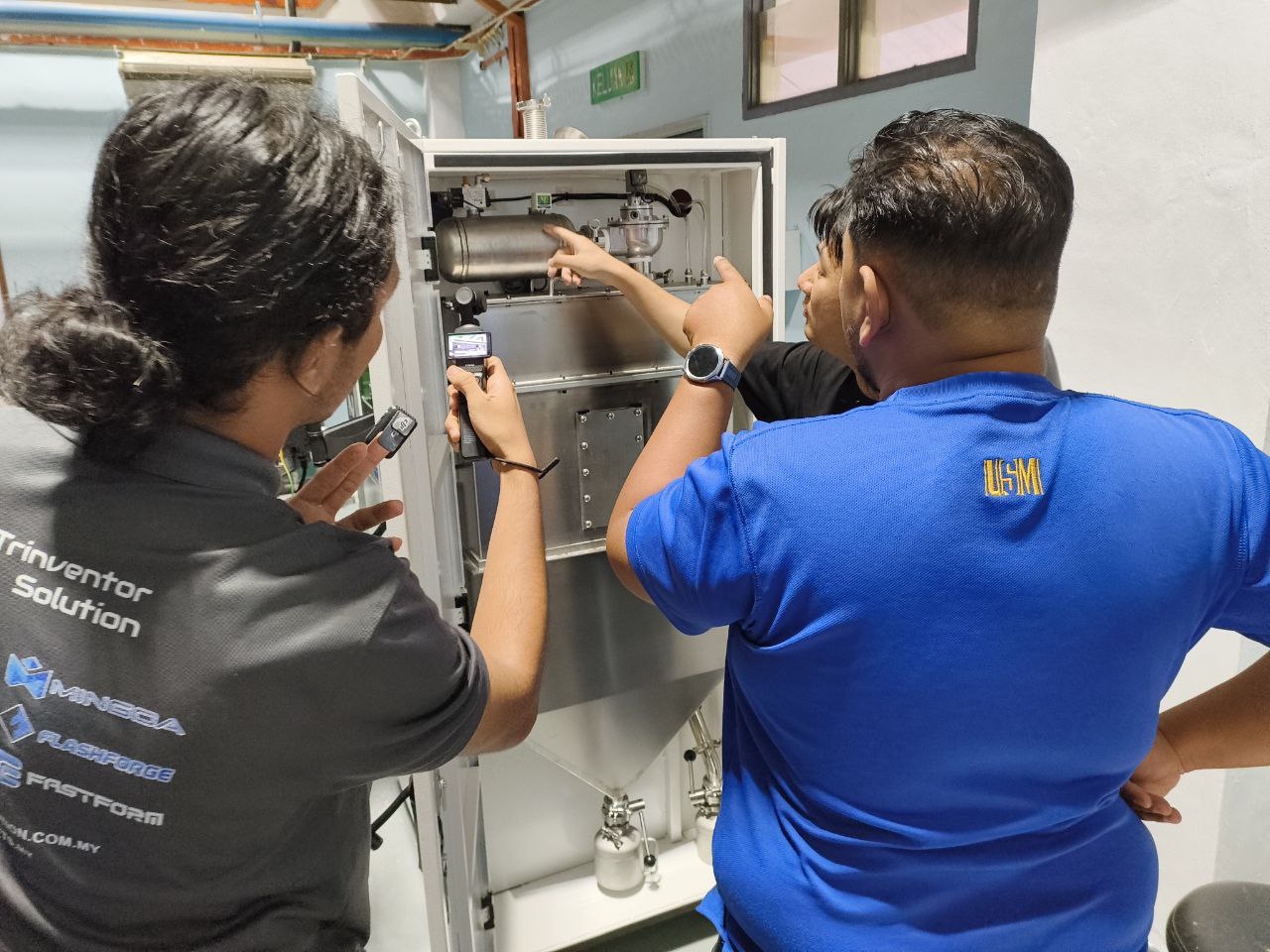

Engineered gas circulation and a next-gen permanent filter system stabilise the chamber. Superior sealing minimises gas ingress, and rigorous laser beam quality control delivers uniform energy density—print after print.

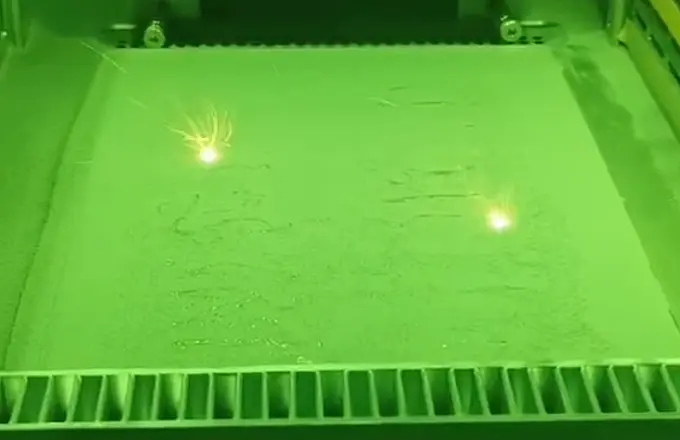

High Productivity

A dual-laser system and large build chamber drive serious throughput.

The permanent filtration system means zero consumable cost, zero replacements, zero risk of filter-related downtime. An LFPT-optimised recoating strategy further boosts print speed.

FastFab

FastFab delivers a clean, intuitive interface with a well-structured layout and all the tools you need in one place. Its user-friendly, step-by-step workflow and simple controls make it easy to pick up—most users master the basics in 5–10 minutes. Snappy performance and responsive interactions keep jobs smooth and uninterrupted, while guided operations help prevent errors, saving time and protecting print quality.

High Precision Printing

A small laser spot and fine layer thickness deliver crisp detail and consistent dimensional accuracy for high-quality parts. Intelligent powder recoating and high-speed scanning accelerate builds without compromising results, while optimised scan-path strategies maintain excellent surface finish and repeatable quality.

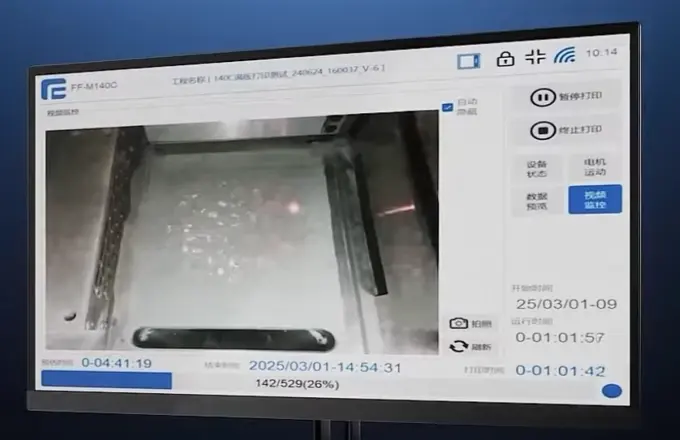

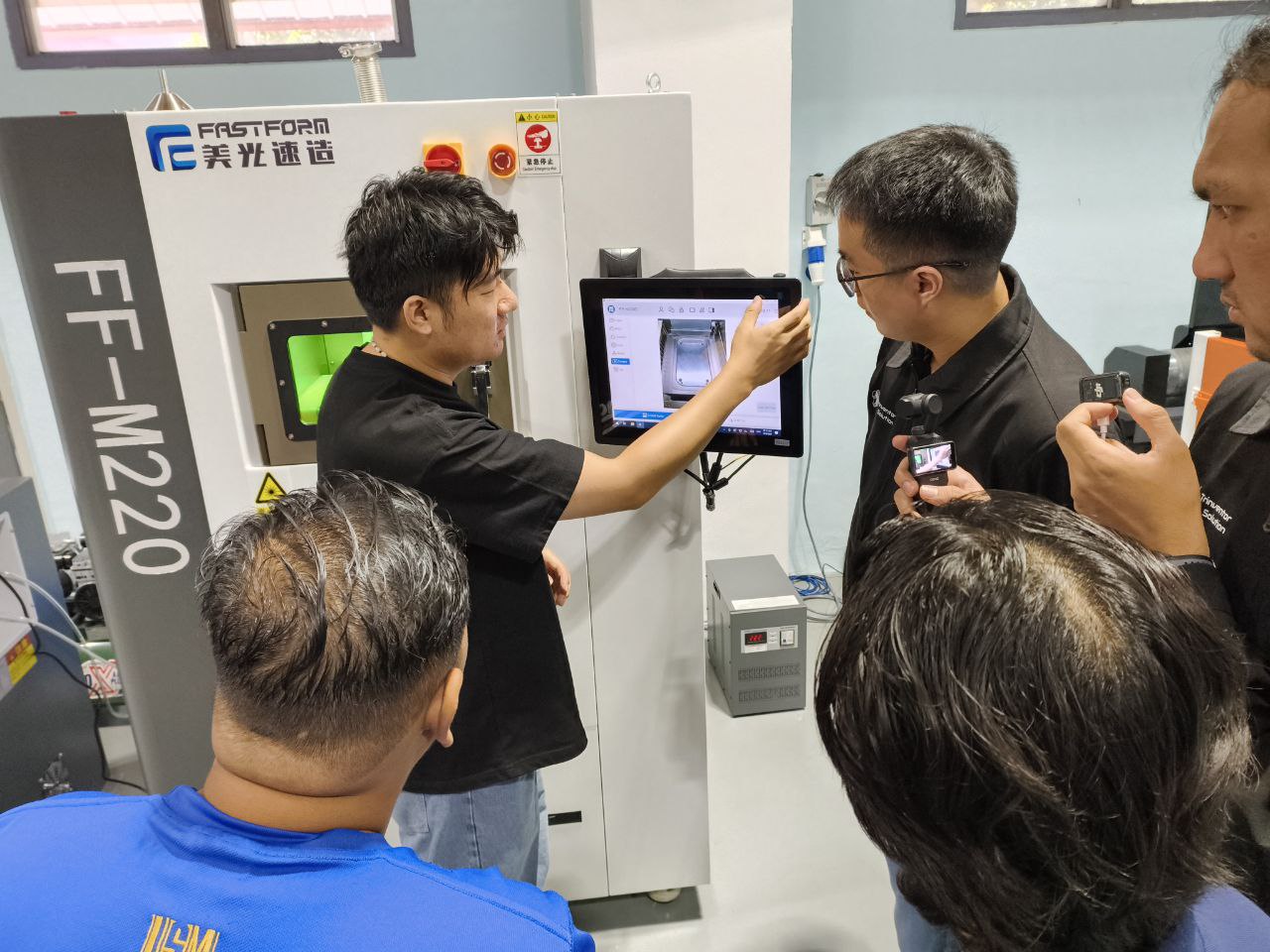

Real Time Monitoring

Built-in camera for easy, real-time print monitoring with zero risk of laser exposure.

Looking for the right solution for your application? Send us your requirement and our team will come back with the right model, price and lead time.

Enquire Now

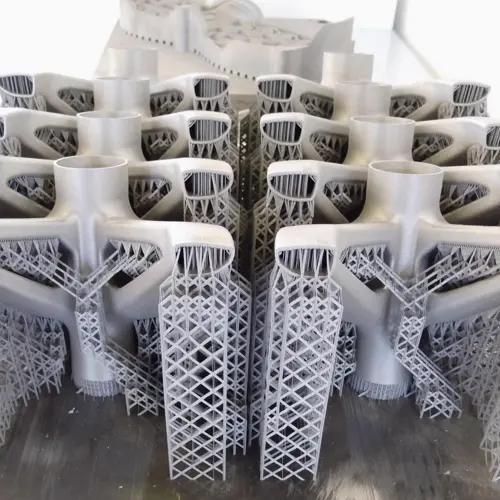

Sample 1

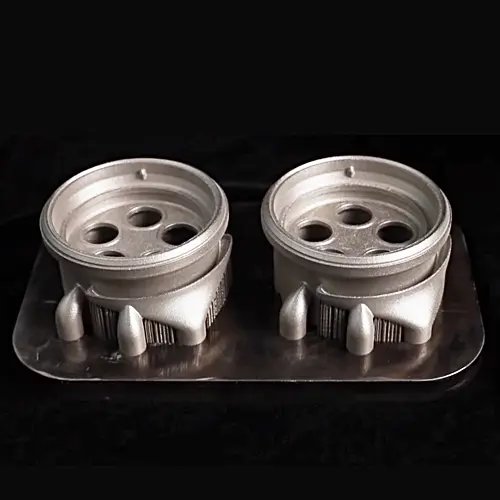

Sample 2

Sample 3

Technical Specification

Specification	Details
Product Model	Fastform FF-M220
Printing Size (L × W × H)	220 × 140 × 100 or 220 x 140 x 200mm
Beam Size	50–80 µm
Powder Layer Thickness	20–50 µm
Recoater Type	Silicon rubber
Number of Lasers	Dual lasers
Laser Power	500 W × 2
Power Supply	220 V, 50 Hz
Power Consumption	3 kW
Protective Gas	Nitrogen, Argon
Minimum Oxygen Content	0.01%
Cooling Method	Water-cooling
Baseplate Fixing Mode	Magnetic quick mounting
Powder Spreading Method	Top-down powder feeding system
Scanning Speed	0–10,000 mm/s
Printing Accuracy	±0.05 mm
Typesetting Mode	One-click
Filter Lifetime	Permanent filter ≤30,000 hrs
Printable Materials	CoCr, Titanium alloy, Pure Titanium, etc.
Printer Dimensions (L × W × H)	1,150 × 750 × 1,800 mm
Maximum Powder Addition	6 L
Net Weight	550 kg
