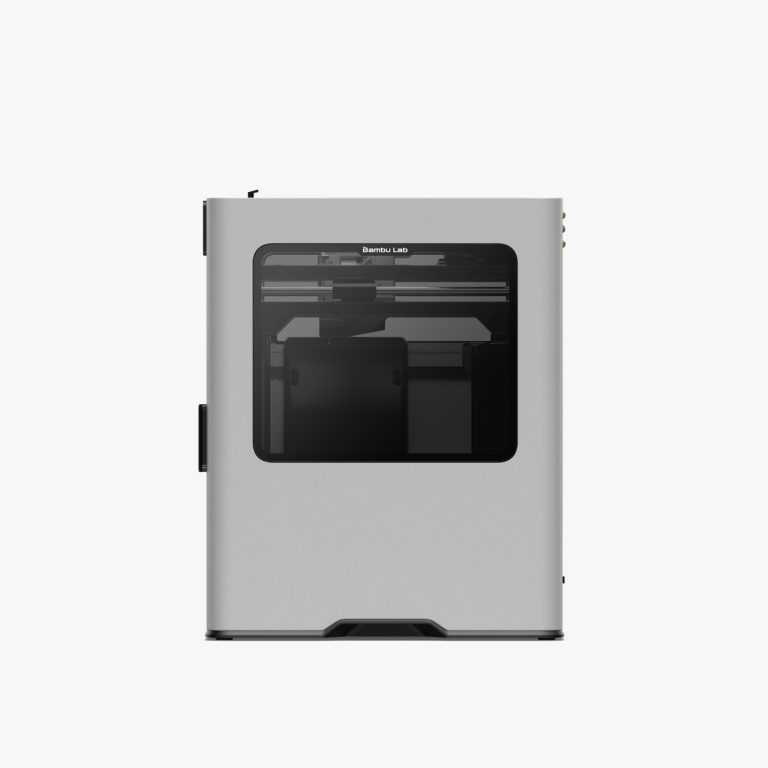

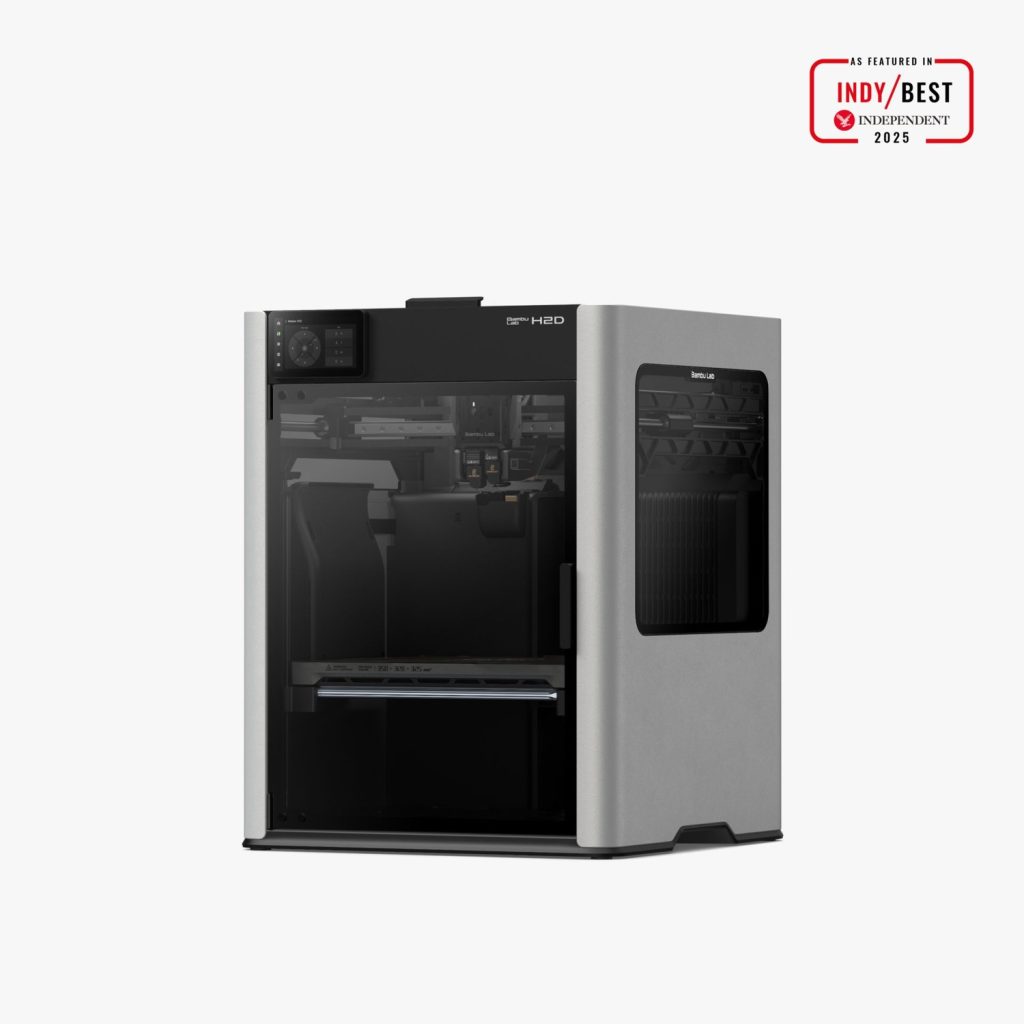

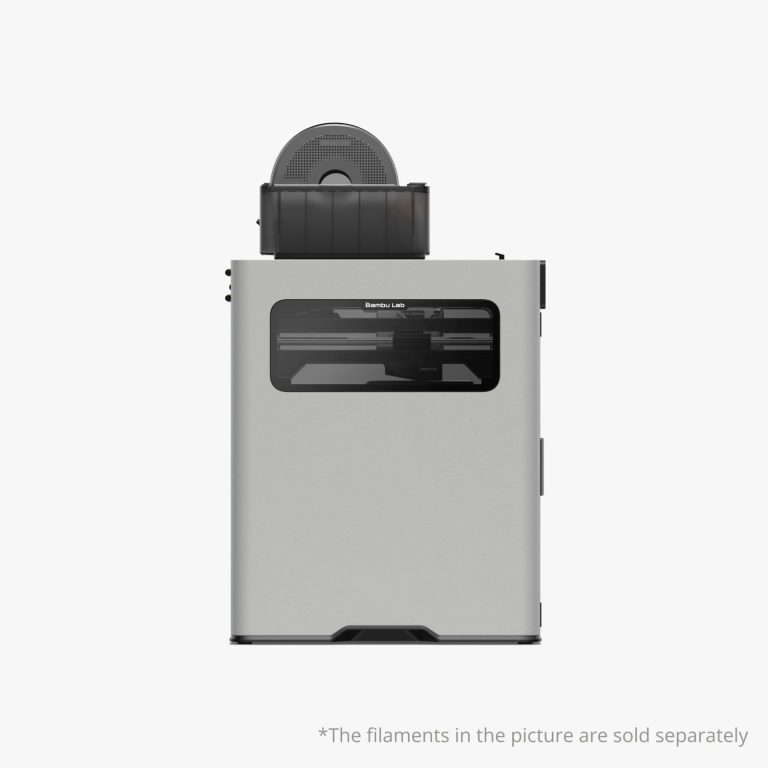

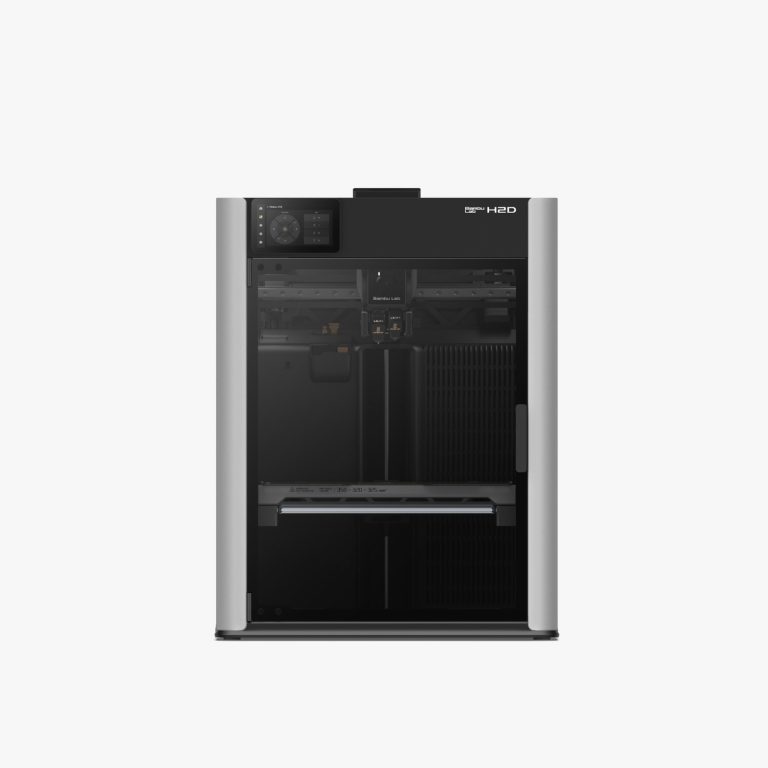

Bambu Lab H2D: 3D Printer, Laser & Cutter

The Bambu Lab H2D is an all-in-one solution for personal manufacturing — a dual-nozzle 3D printer that can be upgraded with an optional 10W/40W laser and cutting module. For Bambu Lab H2D Malaysia users, it brings together multi-material 3D printing, laser engraving and cutting in one enclosed machine, backed by AI monitoring and industrial-grade motion accuracy.

Dual-Nozzle Multi-Material 3D Printing

Two independent nozzles let the H2D print a model with one nozzle and dedicated support material with the other — clean removal, fewer scars, and multi-color capability through the AMS system. Using identical filaments in both nozzles unlocks a combined 350 × 320 × 325 mm³ working envelope, with 325 × 320 × 325 mm³ available in single-nozzle mode.

Optional 10W/40W Laser & Cutting Module

The H2D can be equipped with an optional 10W or 40W laser and cutting module, turning the same machine into a laser engraver and cutter. Laser safety windows let you operate and monitor laser projects safely without goggles, while the optional air purifier keeps air clean during indoor laser operations. An air assist pump improves surface quality by directing high-speed air to cool the laser path. (Laser functions are available on the Laser Edition or via the Laser Upgrade Kit.)

Live Spatial Alignment — What You See Is What You Get

The H2D’s BirdsEye camera, combined with computer vision algorithms, delivers top-view alignment accuracy up to 0.3 mm. This advanced spatial alignment allows you to place the tool path at exactly the right position on the material. Full-auto calibration means a single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments, while Material CodeSync automatically scans the QR code on your material to load the perfect preset.

Go Big, Go Fast, Go Precise

• Max toolhead speed 1000 mm/s with acceleration up to 20,000 mm/s²
• REAL High-Flow Hotend — consistently print at 600 mm/s without mid-print flow restrictions
• DynaSense Extruder — PMSM servo architecture with 20 kHz torque/resistance and position sampling to stabilize extrusion and detect filament grinding and clogging
• Vision Encoder — an ultra-accurate encoder plate with 5 µm resolution optical measurements achieves consistent 50 µm motion accuracy across the entire workspace (sold separately)
• Max flow — 40 mm³/s with the standard hotend; 65 mm³/s with the optional high-flow hotend

A Smarter, Safer Experience

An AI-backed nozzle camera with macro lens continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations and extrusion failures — covering nozzle clumping, air printing and spaghetti. Before every print, the vision system runs a comprehensive pre-flight checklist: chamber integrity scan for debris, hardware configuration audit identifying nozzle dimensions and build plate type, and digital-physical alignment verifying slicer parameters match the detected hardware. An optional auto fire extinguisher adds another layer of safety.

65°C Active Heated Chamber & Air Purification

An actively heated chamber reaching 65 °C keeps warping-prone engineering filaments stable through long prints, while a three-stage filtration system — G3 pre-filter, H12 HEPA filter and granulated coconut shell activated carbon — reduces odors and airborne particles. All six cooling fans (part cooling, auxiliary, chamber circulation, hotend, mainboard and chamber exhaust) run under closed-loop control.

SOTA Filament Monitoring — 15 Sensors

Unlike legacy systems with a single run-out detector, the H2D uses 15 sensors along the AMS-to-nozzle path to continuously track five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment and dynamic extrusion pressure. Door sensor, filament tangle detection, filament odometry and power-loss recovery complete the picture.

Technical Specifications

• Printing technology: Fused Deposition Modeling (FDM)
• Build volume: Single nozzle 325 × 320 × 325 mm³; dual nozzle 300 × 320 × 325 mm³; total for two nozzles 350 × 320 × 325 mm³
• Hotend: all-metal; hardened steel extruder gears and nozzle
• Max nozzle temperature: 350 °C; included nozzle 0.4 mm (0.2/0.4/0.6/0.8 mm supported)
• Max heatbed temperature: 120 °C; textured and smooth PEI plates supported
• Active chamber heating: supported, up to 65 °C
• Air purification: G3 pre-filter + H12 HEPA + coconut shell activated carbon
• Cameras: live view 1920×1080, nozzle 1920×1080, toolhead 1920×1080, BirdsEye 3264×2448 (Laser Edition)
• Filaments: PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, carbon/glass fibre reinforced, PPA CF/GF, PPS, PPS CF/GF
• Physical dimensions: 492 × 514 × 626 mm³; net weight 31 kg
• Electrical: 100–120 VAC / 200–240 VAC, 50/60 Hz; max power 2200 W @ 220 V

Bambu Lab H2D Malaysia — Available at Trinventor Solution

As a trusted Bambu Lab Malaysia partner, Trinventor Solution provides product consultation, demonstrations and after-sales support across the Bambu Lab range. Whether you need multi-material engineering parts, in-house laser engraving and cutting, or a single machine that covers prototyping through production, the H2D delivers. Contact us to arrange a demonstration.
