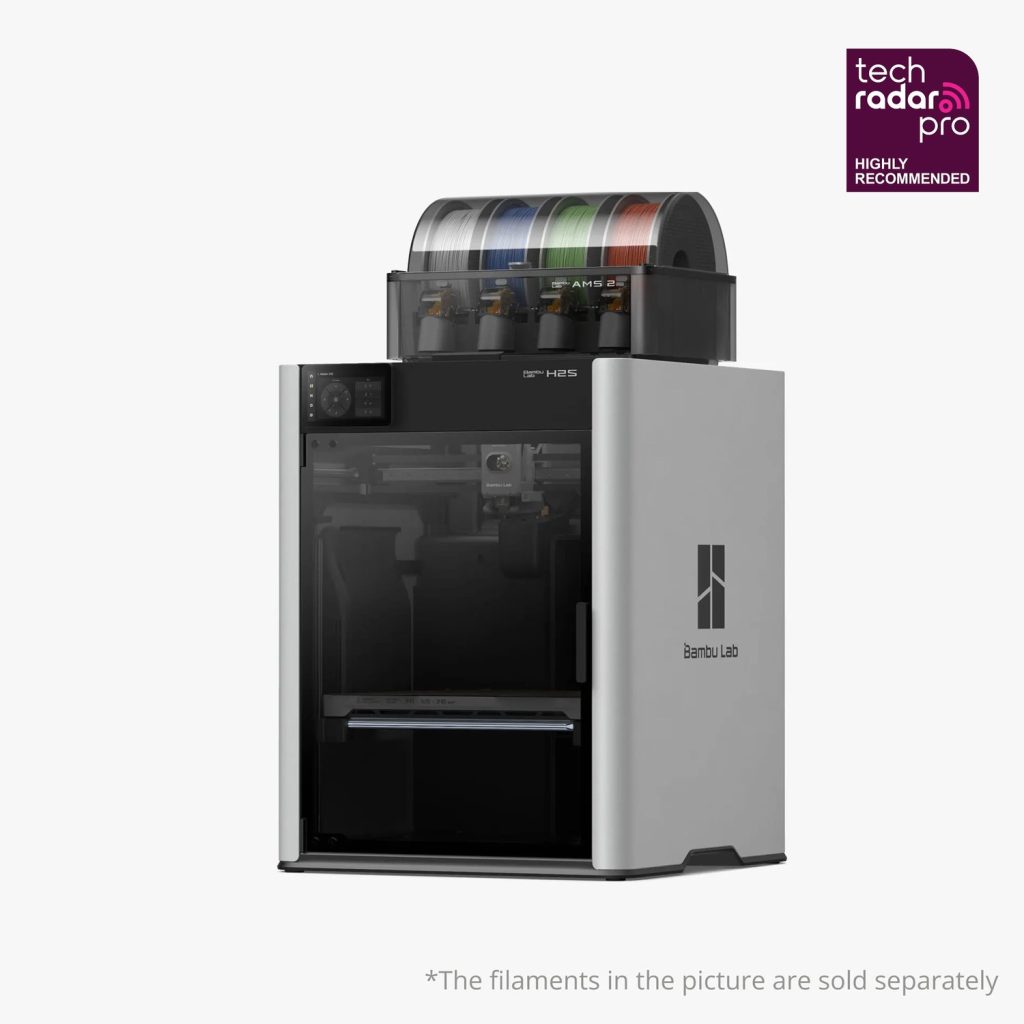

The Bambu Lab H2S is your go-to personal manufacturing hub — a large-format 3D printer that can be extended with an optional 10W laser and digital cutting module. With the largest build volume in the Bambu Lab range, the Bambu Lab H2S Malaysia lineup is built for makers and businesses who need to print bigger, faster and with engineering-grade materials in one enclosed machine.
340 × 320 × 340 mm³ — Maximum Volume, Maximum Productivity
With a build volume of 340 × 320 × 340 mm³, the H2S offers the largest print space among all Bambu Lab printers — roughly 120% more volume than the X1 Carbon. Print large, high-performance parts in one piece with fewer plates, so your vision is fully realized in a single print.
Bigger. Faster. Better.
Bambu Lab’s proprietary PMSM servo extrusion system delivers 67% more extrusion force, providing solid support for high-flow printing. Paired with up to 1000 mm/s toolhead speed and up to 20,000 mm/s² acceleration, the H2S cuts printing time by up to 30% while maintaining top-tier quality.
20,000 Checks Per Second — Closed-Loop Feedback
The proprietary PMSM servo system enables 20 kHz resistance and position sampling to dynamically modulate electromagnetic torque vectors. It stabilizes extrusion and actively detects filament grinding or clogging in real time — closed-loop control rather than guesswork. The DynaSense Extruder combines servo sensing with high-resolution eddy current sensors on the nozzle to measure nozzle pressure and calibrate PA parameters for each filament, improving surface smoothness and edge sharpness.
Accuracy That Works for You
Even a printer that leaves the factory with superb accuracy will drift as mechanical wear and variances accumulate — the H2S solves this. With the Vision Encoder, it achieves distance-independent motion accuracy under 50 µm, thinner than a human hair, automatically compensating for mechanical drift during calibration to maintain consistent precision over time. Bambu Lab’s Auto Hole/Contour Compensation then minimizes printing tolerances for machine-shop-level hole precision, so you can design fit-critical parts with shafts, bearings and fasteners without trial and error.
Ready for Engineering Filaments
A 350 °C hotend and a 65 °C actively heated chamber support the entire Bambu filament lineup — from PLA and PETG to PC and PPA. With closed-loop fan control and precise thermal management, the H2S minimizes warping and deformation while improving layer adhesion. Active Vibration Compensation neutralizes micro-vibrations and resonance in real time, enabling premium print quality at higher speeds.
3D Printing & Laser Cutting — 3 Modes, All-in-One
- High-temp printing — chamber sealed, internal air recirculates through the air filter and heater to stabilize conditions for large engineering parts
- Low-temp printing — top vent opens to bring in cool air while maintaining filtered exhaust, ideal for PLA and PETG overhangs without opening the door
- Laser cutting / engraving — with the optional 10W 455 nm laser module, the top vent and filter switch flap open so fumes are channelled to the ventilation system
The optional laser and digital cutting modules turn the same machine into a laser engraver, cutter and blade-cutting station — a genuine personal manufacturing hub. Auto venting and filament drying round out the workflow.
Intelligence That’s Got Your Back — 23 Sensors + 3 Cameras
AI-driven real-time monitoring detects clumping, spaghetti and purge chute jamming as they happen, preventing failed prints before they start. The same vision system powers Live Spatial Alignment for precise laser and cutting calibration, plus Vision Encoder technology for positional accuracy. Filament-path sensors monitor feeding speed and position, detect tangles and grinding risks, track filament mileage and spool usage. Five NTC temperature sensors across nozzle, heatbed and chamber maintain the ideal print environment, while five flame sensors, door and top-cover sensors and an emergency stop button form a complete safety system. Before every cycle, the vision system runs a pre-flight checklist with chamber integrity scan and hardware configuration audit.
Technical Specifications
- Printing technology: Fused Deposition Modeling (FDM)
- Build volume: 340 × 320 × 340 mm³ — largest in the Bambu Lab range
- Max toolhead speed: up to 1000 mm/s; acceleration up to 20,000 mm/s²
- Max nozzle temperature: 350 °C; all-metal hotend with hardened steel nozzle and extruder gears
- Active chamber heating: up to 65 °C
- Motion accuracy: under 50 µm with Vision Encoder
- Extrusion: PMSM closed-loop servo, 20 kHz sampling (20,000 checks per second), 67% more extrusion force
- Monitoring: 23 sensors and 3 cameras with AI detection
- Multi-color: AMS 2 Pro / AMS HT compatible (4-in-1 PTFE adapter needed for more than one AMS)
- Optional modules: 10W 455 nm laser cutting, digital cutting, Vision Encoder
- Voltage: 200–240 V (Malaysia/Singapore/Thailand/HK/Macao); 100–120 V (China Taiwan)
- Cybersecurity compliant with EU RED Article 3.3(d)(e) and ETSI EN 303 645 V2.1.1:2020
Bambu Lab H2S Malaysia — Available at Trinventor Solution
As a trusted Bambu Lab Malaysia partner, Trinventor Solution provides product consultation, demonstrations and after-sales support across the Bambu Lab range. Whether you need the largest build volume in the lineup, engineering-grade materials with a heated chamber, or a single machine covering 3D printing, laser engraving and cutting, the H2S is the answer. Contact us to arrange a demonstration.
