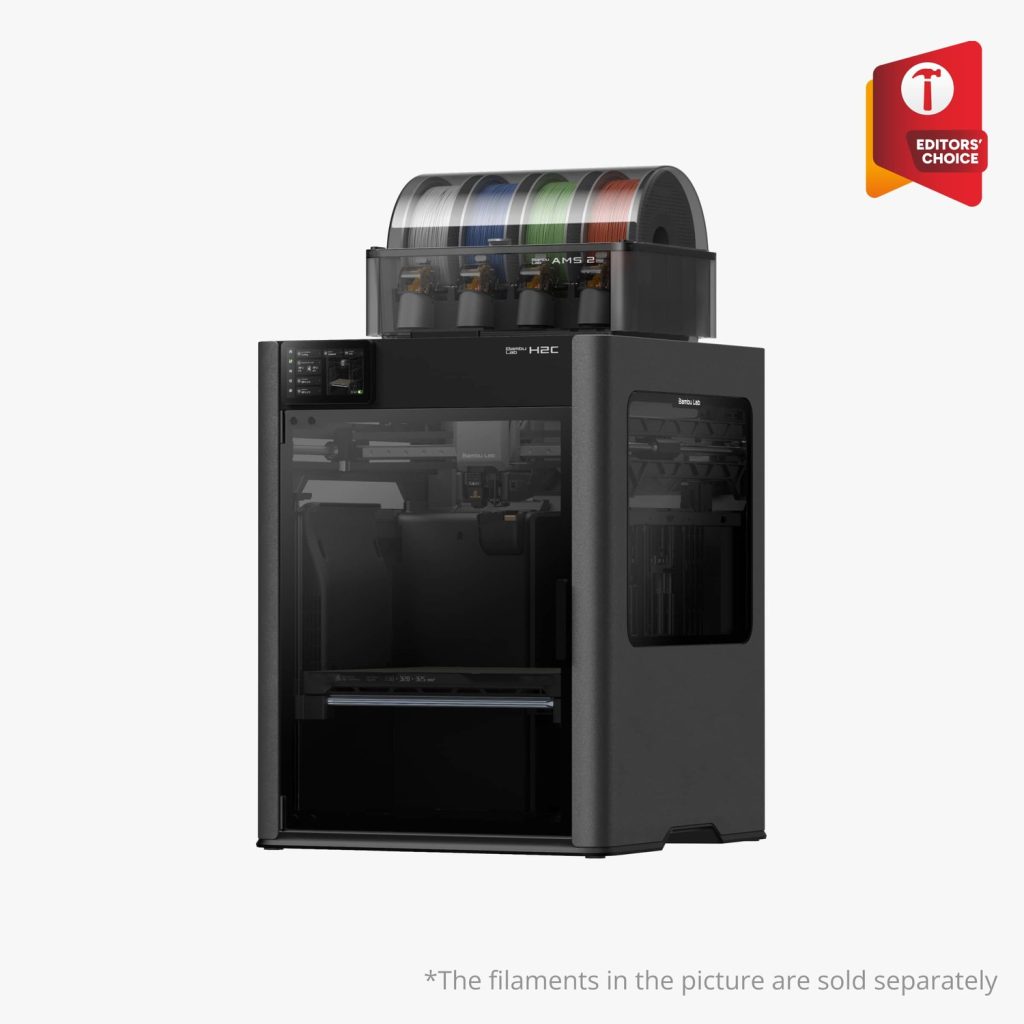

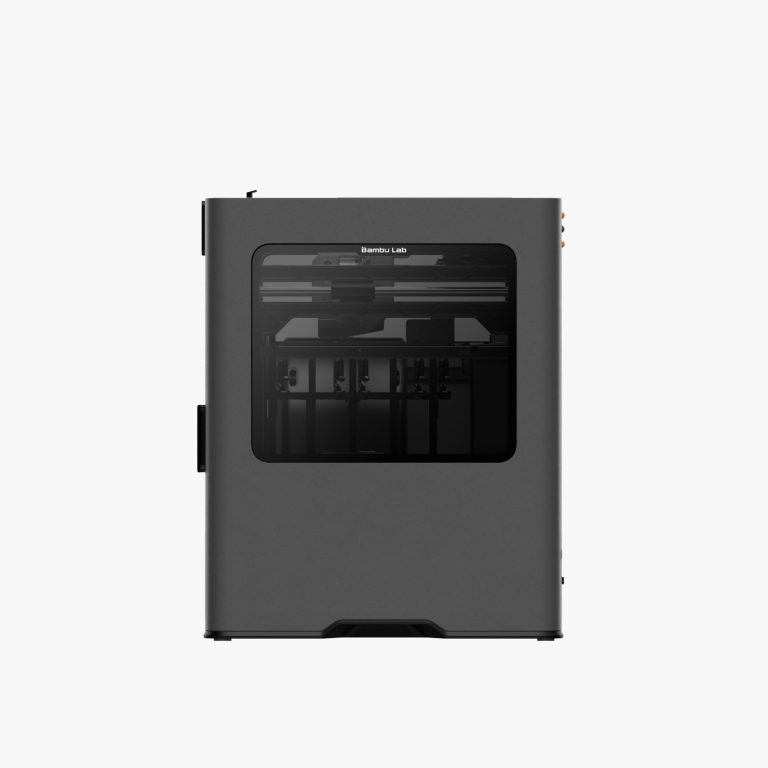

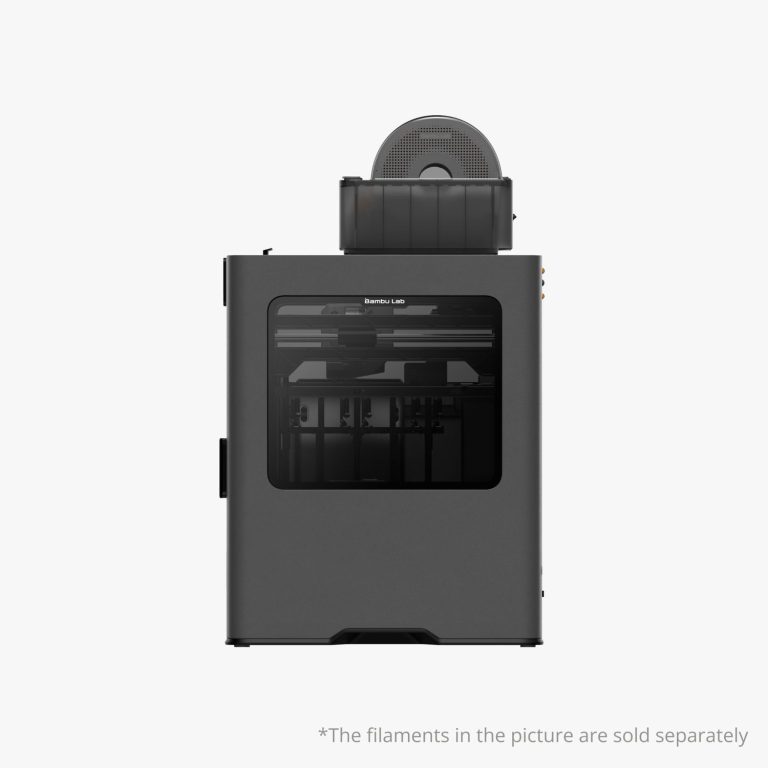

The Bambu Lab H2C is uncompromising multi-material, multi-color 3D printing. Painting intricate models is a thing of the past — the H2C brings designs to life with six-color printing plus a versatile seventh nozzle for support or an additional color. For Bambu Lab H2C Malaysia users, it combines the Vortek hotend change system, industrial motion accuracy and AI monitoring in one enclosed machine.
Six Colors, a Seventh Nozzle, Minimal Waste
The H2C prints in full color with dramatically less purge waste. On comparable multi-color models, the H2C produces just 532 g of purge and prime tower waste where an H2D produces 3,032 g and an H2S produces 3,917 g — while finishing the same jobs far faster. A race car with racing stripes prints straight out: no painting, no wasted filament.
- Purge & prime tower waste: 532 g (H2C) vs 3,032 g (H2D) vs 3,917 g (H2S) on the same model
- Print time: 58% of H2S and 88% of H2D on that model — up to 47% of the time an X1C needs on others
- Seven colors, one print, no paint — full-color models with no brushes, no glue, no fuss
Vortek Hotend Change System
Vortek is the heart of the H2C: a fully automatic filament and hotend change system with minimal purge waste. Its compact form factor holds more filaments than a conventional toolhead layout, while 8-second induction heating (based on Bambu PLA Basic printing temperature) gets each hotend ready almost instantly. A contactless design improves reliability, and because colors are no longer limited by how many toolheads the machine physically has, the H2C keeps delivering the most efficient combination for each job. The chamber stays enclosed for high-performance printing, with fully automatic nozzle offset calibration and dedicated hotends for specific filaments.
Multi-Material Parts in One Piece
Print durable TPU ball joints directly into robot models — flexible, long-lasting and built for endless motion. Because the H2C can run up to seven different materials in a single print run with no nozzle purging, you can combine multiple material properties in one seamless structure: PA6-GF for structural rigidity, TPU for impact absorption and PC FR for flame retardance, all in the same part. No assembly, no painting.
Superior Print Quality, Every Time
The PMSM servo extruder delivers up to 10 kg of maximum extrusion force — 70% more than a stepper motor — dramatically improving high-flow-rate extrusion stability. The proprietary servo architecture samples resistance and position at 20 kHz, actively detecting filament grinding and clogs in real time. Combined with the high-resolution eddy current sensors on the nozzle, the H2C precisely controls extrusion and automatically calibrates Pressure Advance (PA) parameters for each filament, resulting in smoother surfaces and cleaner, sharper edges.
With the optional Vision Encoder, the H2C achieves distance-independent motion accuracy under 50 µm — thinner than a human hair — automatically compensating for mechanical drift during calibration.
Engineering Materials Ready
All seven nozzles can reach a maximum temperature of 350 °C, so you can print the entire Bambu filament lineup with any nozzle you choose. The 65 °C actively heated chamber minimises warping and deformation while enhancing layer adhesion for high-performance, high-temperature filaments. A three-stage filtration system — G3 pre-filter, H12 HEPA filter and coconut shell activated carbon — effectively minimises the odors and harmful particulates often released by engineering materials, with superior VOC filtration.
AI-Powered Simplicity — 59 Sensors, Quad-Camera Vision
The H2C is equipped with 59 sensors and a quad-camera computer vision system, all orchestrated by a proprietary neural algorithm. During printing it delivers intelligent, real-time diagnostics that detect even subtle print anomalies as they happen — you don’t have to be an expert to solve problems. An AI-backed nozzle camera with macro lens continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations and extrusion failures including spaghetti, nozzle clumping and air printing. Before each print the vision system runs a full pre-flight inspection, scanning the build surface for debris and confirming print start settings.
Safety, Checked
The H2C’s chamber is constructed entirely with flame-retardant UL94 V-0 grade material, providing robust passive fire safety protection across the entire enclosure. A multi-sensor closed-loop temperature control system constantly cross-references real-time data from multiple sensors across all heating components, ensuring stable, precise thermal management. For security-sensitive work, the H2C offers full offline functionality for complete physical isolation — operate the printer, send files and update firmware without an internet connection — while advanced users can enable Developer Mode for MQTT port access.
Technical Specifications
- Printing technology: Fused Deposition Modeling (FDM), multi-material with 6 colors + 7th nozzle
- Build volume: single nozzle (left) 325 × 320 × 320 mm³; single nozzle (right) 305 × 320 × 325 mm³; dual nozzle 300 × 320 × 320 mm³; total for two nozzles 330 × 320 × 320 mm³
- Chassis: aluminum and steel; outer frame plastic and glass
- Physical dimensions: 492 × 514 × 626 mm; net weight 32.5 kg
- Nozzle: hardened steel, max 350 °C (all seven nozzles); 0.2 / 0.4 / 0.6 / 0.8 mm supported; built-in filament cutter
- Extruder motor: Bambu Lab high-precision PMSM servo; up to 10 kg extrusion force
- Max heatbed temperature: 120 °C (textured PEI plate included, engineering plate supported)
- Max toolhead speed: 1000 mm/s; max acceleration 20,000 mm/s²; max flow 40 mm³/s
- Active chamber heating: up to 65 °C; fire-retardant UL94 V-0 chamber
- Air purification: G3 pre-filter + H12 HEPA + granulated coconut shell activated carbon
- Cameras: live view 1920×1080, nozzle 1920×1080, toolhead 1600×1200, BirdsEye 3264×2448 (Laser Edition)
- Filaments: PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS plus carbon/glass fibre reinforced variants
- Display: 5-inch 720 × 1280 touchscreen; 8 GB eMMC storage and USB port
- Electrical: 100–120 VAC / 200–240 VAC, 50/60 Hz; max power 1800 W @ 220 V; typical 200 W printing PLA
- Working temperature: 10–30 °C
Bambu Lab H2C Malaysia — Available at Trinventor Solution
As a trusted Bambu Lab Malaysia partner, Trinventor Solution provides product consultation, demonstrations and after-sales support across the Bambu Lab range. If you need genuine multi-material capability — colors, flexible joints and engineering materials in a single seamless print with minimal waste — the H2C is the machine. Contact us to arrange a demonstration.
