The smart light-industrial vacuum former — a 57 × 42 cm forming area, four-zone 3500 W heating and a 750 W pump, for prototypes, custom packaging and low-volume production.

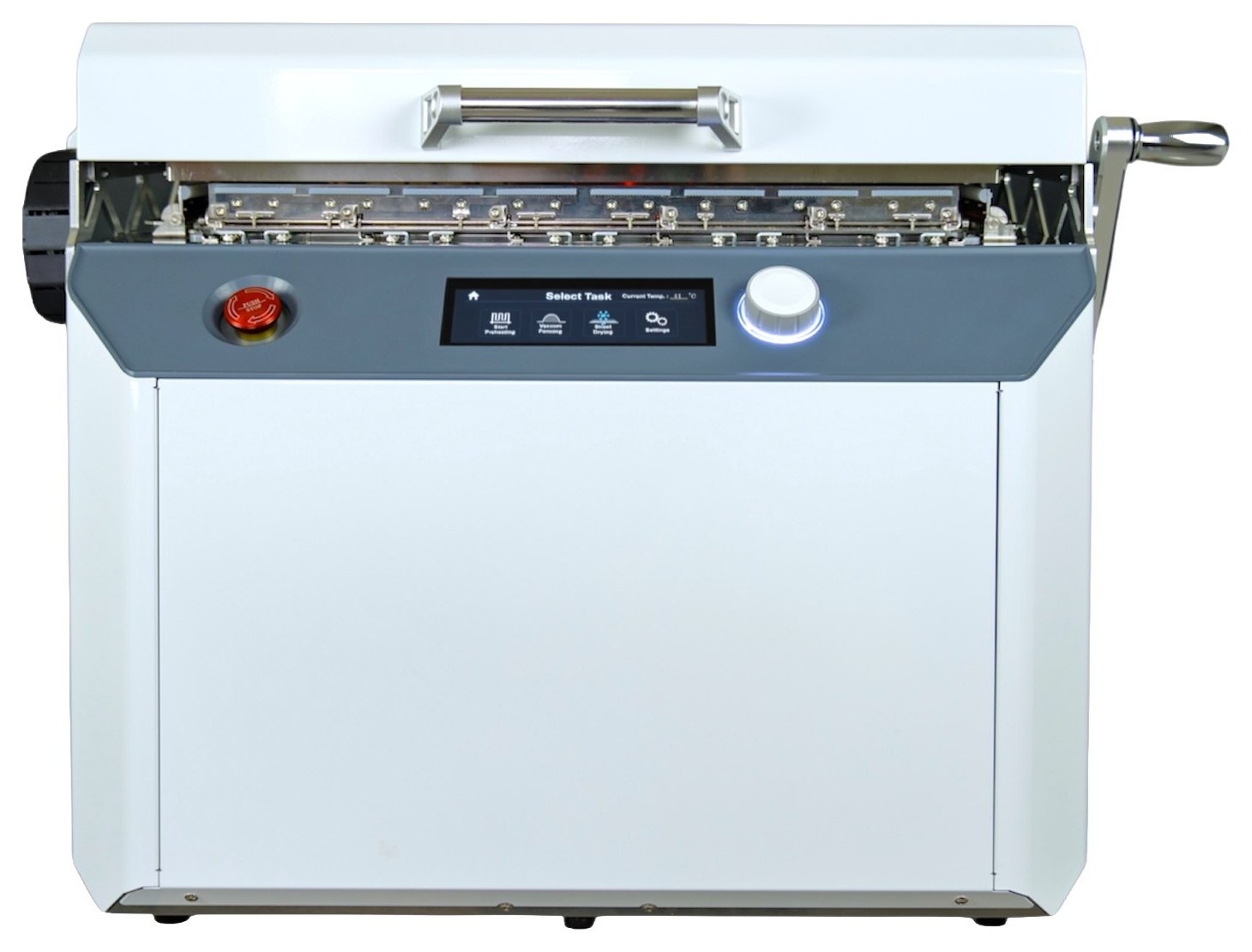

FORMOVA is MYYARD's light-industrial vacuum former: a large forming area with industrial-grade control, so a mould that used to take weeks and a minimum order can be a job you finish this afternoon.
Clamp a sheet in the pneumatic frame — auto sheet leveling takes out the sag before heating starts.
Four zones bring the sheet to temperature while the mold lifts up into it, with pre-stretch evening the wall thickness.
Positive air pressure releases the part, mold locking keeps the next run identical, and you trim and go again.
FORMOVA raises the mold into the heated sheet instead of pulling the sheet down over a stationary mold. The plastic stays evenly stretched on the way up, so gravity does not thin the middle — more uniform wall thickness and sharper detail, especially on large parts.
*Theoretical figure at full vacuum; actual pull depends on sheet, temperature and mold.
Precision control and intelligent sheet handling, so the tenth part looks like the first.
Industrial prototyping, model making, custom trays and blister packaging without splitting a job across two molds.
An infrared temperature sensor and four independently controlled zones keep the heat even across the whole sheet.
17 preloaded material profiles plus five of your own presets set heat and timing, so new staff are productive fast.
The heated sheet is expanded before the mold touches it, evening out wall thickness where the draw is deepest.
Raising the mold keeps the plastic evenly stretched instead of thinning over a stationary mold. Compared with conventional downward forming you get better material control for large-format and deep-draw work: higher accuracy, less waste, more repeatable results.
Enhanced clamping, vacuum control, demolding and mold locking — the details that make repeat runs pay.
A pneumatic clamp holds the sheet through both stages of the cycle — repeatable, with two-hand safety operation.
No external air line — the machine's own 0.8 MPa system pushes parts off the mold at the press of a button.
Mounting points are built into the forming platform, so production runs start from the same position every time.
Traditional tooling means expensive molds, high minimum orders and long lead times. FORMOVA makes prototypes, custom packaging and low-volume parts in-house, any time you need them.
Chest plates, helmets and props formed over a printed or plaster buck.
Insert trays for tools, electronics and equipment — tooling in a day, not weeks.
Retail blisters and clamshells for small-batch products, with no packaging MOQ.
Clear or coloured bodies formed over a mold, in the thickness you race with.
Chocolate and dessert moulds for small production runs.
Classroom projects that show the whole thermoforming process end to end.
Backlit sign faces and lightbox fronts — the classic vacuum forming business.
Panels and covers for restoration, custom builds and short runs.
Delivery, setup and first-part commissioning across Peninsular Malaysia — Sabah and Sarawak by arrangement.
On-site or online onboarding: sheet handling, material profiles, mold setup and vacuum tuning for your parts.
Heating elements, seals, pumps, forming sheets and consumables kept locally, not ordered from overseas.
Maintenance and process troubleshooting from a team that runs vacuum forming machines every working day.
Serving Kuala Lumpur, Selangor, Penang, Johor, Ipoh, Kuantan, Kota Kinabalu and Kuching.
Everything below is the manufacturer's published specification for the machine we supply and install.
| Forming area | 57 × 42 cm |
|---|---|
| Maximum forming height | 20 cm |
| Sheet size | 60 × 45 cm |
| Maximum sheet thickness | 6.0 mm |
| Maximum heating temperature | 230°C |
| Maximum vacuum pressure | −93 kPa |
| Machine dimensions | 90 (W) × 72 (H) × 68 (D) cm Heater fully extended: 112 cm depth |
| Machine weight | 77 kg |
| Power requirements | 220–240 VAC / 50–60 Hz / 3500 W |
| Maximum load capacity | 120 kg |
|---|---|
| Construction | 1.5 mm reinforced steel |
| Stand weight | 31.2 kg |
| Dimensions | 73.6 (W) × 60.3 (H) × 72.9 (D) cm |
| Compatible models | FORMOVA and FORMART series |
Installation note: allow clearance behind the machine — the heater extends to a maximum depth of 112 cm when fully open.
Both films open on MYYARD's official channel; the clips below play on hover or tap.
Trays and inserts, retail blisters, sign lightbox faces, cosplay armour, RC car bodies, dessert moulds, motorcycle fairings and machine covers — anything you can make a mold for, in sheets up to 60 × 45 cm and 6 mm thick, formed up to 20 cm deep.
FORMOVA ships with 17 preloaded material profiles for common thermoforming plastics, plus five custom presets you can tune yourself. Tell us what you plan to form — PETG, HIPS, ABS, PVC, acrylic and similar — and we will confirm the right sheet and profile.
Price depends on the configuration: the machine, the optional stand, a forming sheet starter pack and operator training. Request a quote and we will send a complete Malaysian quotation with delivery, installation and onboarding included.
FORMOVA is the larger light-industrial model — 57 × 42 cm forming area, four-zone 3500 W heating and a 750 W pump. The FORMART series is a desktop machine for smaller work. We supply both: tell us the biggest part you need to form and we will recommend the one that fits. See the MYYARD FORMART 2 and the compact MYYARD FORMART S.
Yes. Bring a sample sheet and your mold to our Kuala Lumpur showroom and we will run your part in front of you, or ask for an on-site demo so we can form it at your premises.
Yes. Delivery, setup and first-part commissioning are included across Peninsular Malaysia, with on-site or online training for your team. Heating elements, seals, pumps, sheets and common consumables are stocked locally so production does not wait on overseas shipping.
Harga bergantung pada konfigurasi — mesin, stand, pek helaian (sheet) permulaan dan latihan operator. Hubungi kami untuk sebut harga lengkap di Malaysia termasuk penghantaran, pemasangan dan latihan.
Jika produk anda besar — muka lightbox, tray, bungkus blister atau panel — FORMOVA dengan kawasan pembentukan 57 × 42 cm sesuai untuk produksi kecil. Untuk kerja kecil dan meja, siri FORMART lebih sesuai. Beritahu kami saiz produk terbesar anda dan kami akan syorkan mesin yang tepat.
Tell us what you need to form — part size, sheet thickness and material — and we will quote the machine, stand, sheets and training in one Malaysian price. Prefer to see it first? Book a showroom demo in Kuala Lumpur and bring your part.
