Mingda MD-600 Pro

  • Swapable high-temperature hotend or standard-temperature hotend
  • Accurate Linear Guide Rail
  • One-touch Auto leveling
  • Uninterrupted Power Supply
  • Detachable  Flexible Magnetic Build Plates
Facebook
WhatsApp
Email
Twitter

Product Details

Mingda MD-600 Pro

The MD-600 Pro is a user-friendly, large-format 3D printer specially crafted for industrial applications that demand high-performance materials. With its sleek and space-efficient design, this printer is a versatile choice for producing top-quality parts in various settings, from offices to factory floors. Whether your needs involve creating factory tooling, prototypes, or finished parts, the MD-600 Pro offers a sturdy and cost-effective solution for manufacturing large-format, superior components.

One of the standout features of the MD-600 Pro is its massive build volume, measuring 600 x 600 x 600 mm – a tenfold increase over standard desktop 3D printers. This printer comes with a fully enclosed build area and a filament chamber that’s temperature-controlled, ensuring rapid heating and the production of outstanding results when working with advanced materials.

Massive Build Volume

MD-600 Pro has massive build volume of 600*600*600(mm) which enable engineers and makers to print parts in single piece.

Innovator Of Industrial 3D Printer Auto-Leveling

The interlligent leveling system can automatically adjust the uneven hotbed. High-sensitivity sensor, one-touch leveling and 25-point precise leveling.

UPS (Uninterrupted Power Supply)

Buit in UPS, When the machine is powered off, the machine will automatically suspend printing, and retum to the home point, when the power on, the machine will continue to complete the remaining printing work from the point of suspension.

Accurate Linear Guide Rail

Large-scale printed models the appearance of 4 to 5 times more precision than ordinary 3D printing

Baby Step Intelligent Compensation

Baby step function is added on MD-600 Pro During the first layer printing process, the baby step can be used for precise leveling. The control accuracy of 0.01mm makes the first layer stable and reliable and makes the leveling more intelligent.

Maximum Adheshion Painless Removal

Our Build Plate system completely removes scrapers and damage to 3d prints. The magnetic build plates that come with MD-600 Pro are flexible and detachable so you can remove the models with ease.

Filament And Applications

5 inch Color Touch Screen

Support SD card or U disk Printing

Front and Rear Door Design

Enclosed Filament Compartment

Auxiliary Filament Feeding

Additional Storage Compartment

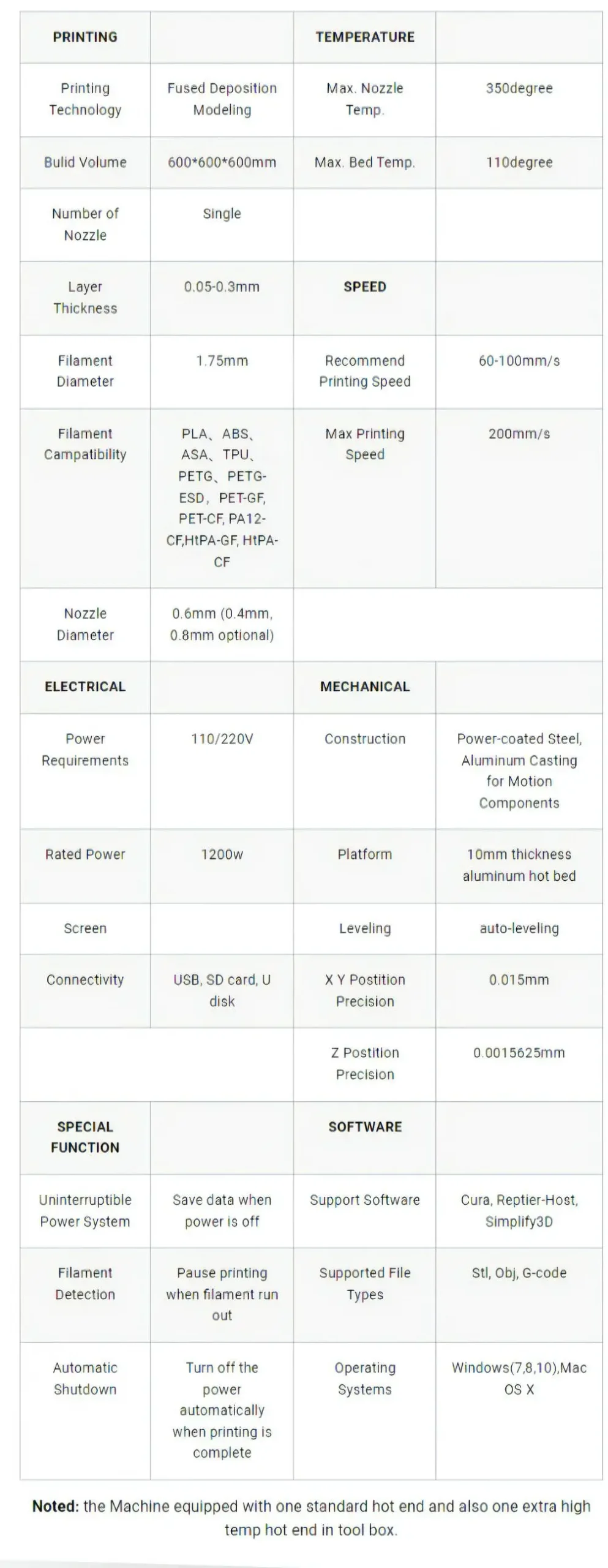

Technical Specification

PRINTING   TEMPERATURE
Printing Technology Fused Deposition Modeling Max. Nozzle Temp. 350degree
Bulid Volume 600*600*600mm Max. Bed Temp. 110degree
Number of Nozzle Single
Layer Thickness 0.05-0.3mm SPEED
Filament Diameter 1.75mm Recommend Printing Speed 60-100mm/s
Filament Campatibility PLA、ABS、ASA、TPU、PETG、PETG-ESD,PET-GF, PET-CF, PA12-CF,HtPA-GF, HtPA-CF Max Printing Speed 200mm/s
Nozzle Diameter 0.6mm (0.4mm, 0.8mm optional)
ELECTRICAL   MECHANICAL
Power Requirements 110/220V Construction Power-coated Steel, Aluminum Casting for Motion Components
Rated Power 1200w Platform 10mm thickness aluminum hot bed
Screen   Leveling auto-leveling
Connectivity USB, SD card, U disk X Y Postition Precision 0.015mm
  Z Postition Precision 0.0015625mm
SPECIAL FUNCTION   SOFTWARE
Uninterruptible Power System Save data when power is off Support Software Cura, Reptier-Host, Simplify3D
Filament Detection Pause printing when filament run out Supported File Types Stl, Obj, G-code
Automatic Shutdown Turn off the power automatically when printing is complete Operating Systems Windows(7,8,10),Mac OS X

Noted: the Machine equipped with one standard hot end and also one extra high temp hot end in tool box.
