Huayan’s explosion-proof collaborative line — five models from 7 kg to
18 kg payload, built for hazardous areas with a composite positive-pressure and intrinsic-safety
structure, national explosion-proof certification and IP66 protection.
Five models — payload 7–18 kg, reach 800–1800 mm, repeatability ±0.02–0.05 mm
Explosion-proof marking Ex ib pxb IIC T6 Gb / Ex ib pxb IIIC T80 °C Db — nationally certified (NEPSI, GB/T 3836-2021)
Composite structure — leak-compensated positive pressure, ignition-source medium isolation and multi-seal housing
Real-time positive-pressure monitoring with power-off protection
IP66 and −20–40 °C — paint & coating, oil & gas, chemical and combustible-dust environments
Supplied, installed, programmed and supported in Malaysia — with demo, training and service contracts

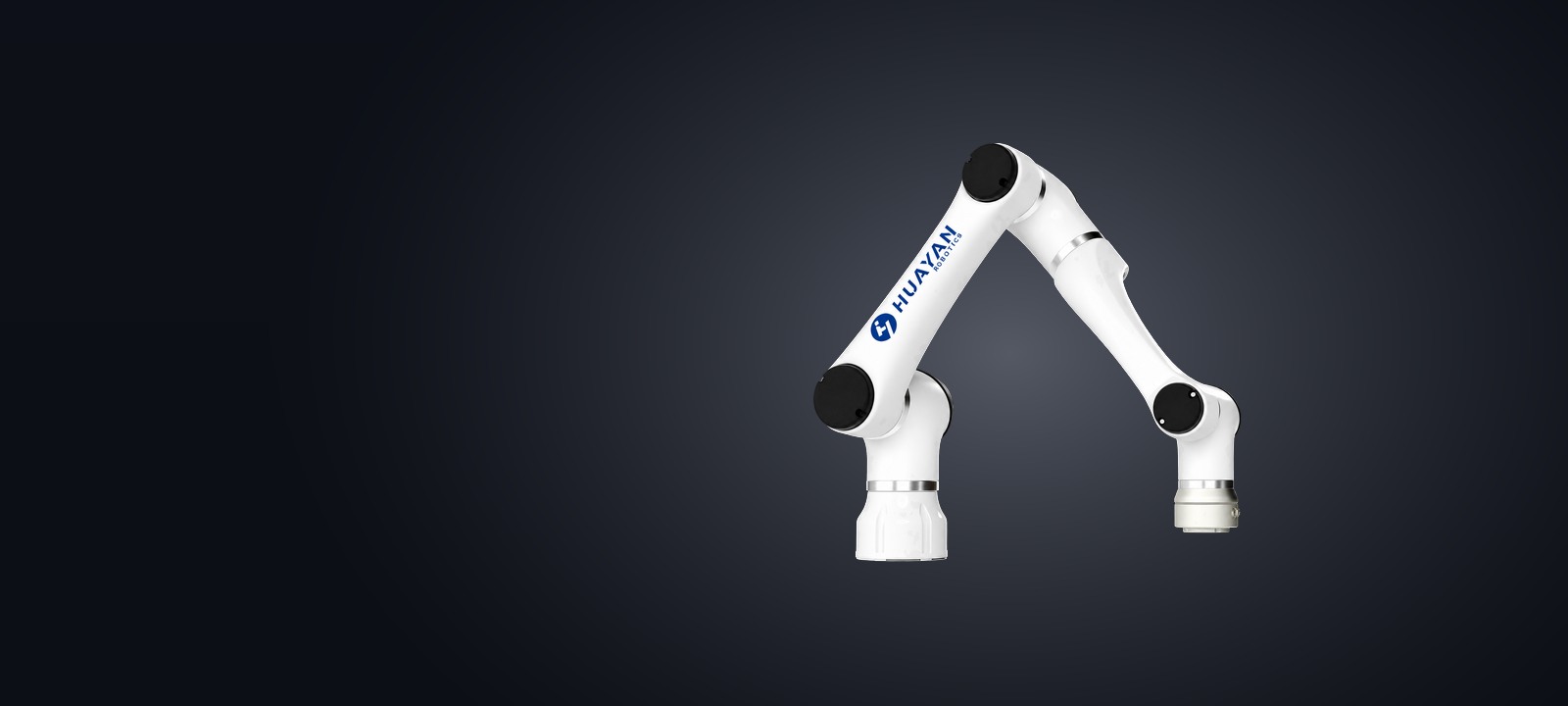

The Elfin-Ex is a production cobot rebuilt around an explosion-proof architecture —
same six-axis motion, protected where a standard cobot could not go: paint booths, chemical plants, powder
halls and fuelling environments.
What Makes It Explosion-Proof
Composite protection structure — leak-compensated positive-pressure system, ignition-source medium isolation and multiple seals working together
Intrinsic safety by design — the arm’s electrical architecture keeps energy below ignition levels inside the protected volume
Real-time pressure monitoring — positive-pressure gas is watched continuously, with power-off protection if the envelope is lost
Nationally certified — NEPSI explosion-proof certification to GB/T 3836-2021, marked Ex ib pxb IIC T6 Gb / Ex ib pxb IIIC T80 °C Db
IP66 — sealed against dust and water jets, for real plant environments
Where The Elfin-Ex Goes
Paint & coating — spray booths and coating lines where solvent vapour is ever-present
Oil, gas & petrochemical — plant areas where a spark is not an option
Chemical & pharmaceutical — production and packaging of flammable substances
Combustible dust — powder handling, milling and filling operations
Civil-explosive, defence & fuelling — ammunition and propellant work, refuelling and gas-filling environments
Composite Structure, Real Certification
An explosion-proof cobot is not a cobot with a sealed coat. The Elfin-Ex uses a leak-compensated positive
pressure system with ignition-source medium isolation and a multiple-sealing structure — so the arm can
be certified, not just advertised.
Leak-compensated positive pressure — the internal envelope is held above the hazardous atmosphere’s pressure, so explosive gas and dust cannot enter
Ignition-source medium isolation — spark-capable components are separated from the flammable environment by design
Multi-seal housing — multiple sealing layers at every joint and cable entry
Real-time monitoring, power-off protection — the system watches positive-pressure gas continuously and cuts power if protection is compromised
Certification you can file — marking Ex ib pxb IIC T6 Gb / Ex ib pxb IIIC T80 °C Db; NEPSI certification to GB/T 3836-2021
Tell us the zone, the substance and the process — we confirm the configuration and the
certification documents that apply to your site before you commit.
Protected inside, productive outside — the Elfin-Ex working a powder process.
See The Elfin-Ex In Motion
Official footage from Huayan Robotics — the Elfin-Ex handling explosive powder in a
protected process.
From the official Huayan Elfin-Ex application footage — pick, pour, place, all inside the zone.
Nationally Certified
NEPSI explosion-proof certification to GB/T 3836-2021, marked Ex ib pxb IIC T6 Gb / Ex ib pxb IIIC T80 °C Db — the paperwork a zone needs, not just a claim.
Sealed Against Gas & Dust
Positive-pressure envelope with real-time monitoring and power-off protection — gas and combustible dust stay outside where they belong.
Powder & Dust Handling
The manufacturer demonstrates the Elfin-Ex picking, pouring and placing explosive powder — a job previously done by hand or behind thick barriers.
Wireless Operation, 50 m
Explosion-proof pendant and tablet, wireless to 50 m — operate and monitor the cell without entering the zone.
Automated Loading
Arm in, part out — machine tending and chamber work that keeps operators away from the hazard.
Inside The Protected Cell
Compact and light enough for cell interiors — the arm works inside the enclosure, the crew stays outside it.
More From The Hazardous Floor
Two more cuts from the official Huayan Elfin-Ex footage — hover to play.
Working The Chamber
Loading and unloading a sealed process chamber — the operator stays on the safe side of the wall.
Handling The Powder
Picking and pouring explosive powder at the mill — the application the Elfin-Ex was certified for.
Five models, one protection
platform — E05F to E15F. Whether the cell needs a 7 kg arm at 800 mm or an 18 kg arm at 1300 mm, it is
the same certified architecture, the same pendant family and the same support.
Choose Your Elfin-Ex
Payload and reach read the same as any cobot: start from what you must move (including the
gripper) and the distance to your machine, chamber or fixture. The difference — and the cert —
is under the skin.
Power consumption is quoted for typical application, as the manufacturer publishes it. Not a hazardous area? The
Elfin line covers standard production cells and the
Elfin-Pro adds force control and AI vision at cobot scale. We supply the whole
Huayan collaborative range — talk to us about which line fits.
The Protection Package
The explosion-proof system is more than the arm — the control hardware and the way you
operate it are part of the certification story.
Explosion-Proof Control Cabinet
In the standard configuration the arm and the control box are both protected and both may sit in the hazardous area — a single certified package.
Wireless Pendant & Tablet
Explosion-proof teach pendant and tablet with up to 50 m wireless range — set up and monitor the cell from outside the zone.
Standard configuration — arm + box protectedEconomic configuration — box in safe area, cable to 20 mCustomised configurations16 DI (8 configurable) / 16 DO (8 configurable)Modbus TCP · Ethernet TCP/IP
Built For The Zones Others Avoid
The environments Huayan builds the Elfin-Ex for — and the ones we integrate here in
Malaysia.
Chemical & Processing
Handling, filling and palletising in chemical and processing plants where vapours need respect.
Oil, Gas & Petrochemical
Sampling, tending and material movement in plant areas rated for explosive atmospheres.
Mining & Civil-Explosive
Handling and process work around explosive materials and blasting operations.
Combustible Dust & Powder
Powder filling, bagging and milling lines where dust clouds are an ignition risk.
Aviation, Defence & Fuelling
Fuel handling, propellant work and defence production — environments with zero tolerance for ignitions.
Paint & Coating
Spray booths and coating lines — the classic solvent-vapour zone, now with a cobot that can live there.
Hazardous-area work punishes equipment. The Elfin-Ex is built for it — IP66 sealing, a wide operating
window and an architecture designed to hold its protection through production shifts, not demonstrations.
IP66 protection — dust-tight and resistant to water jets, per the manufacturer’s rating
−20–40 °C operating range — plant conditions, indoors or out
Arm weights 25–72 kg — compact enough for cells, substantial enough to work
Cable to 20 m — in the economic configuration the arm can stand in the zone while the control box sits in a safe area, up to 20 m away (15–20 m, customizable)
Ten safety functions as standard, with the limits set around your layout during commissioning
We confirm the zone classification, substance group and certification documents that apply
to your site before anything is ordered.
Fine work inside the protected envelope — the Elfin-Ex handling powder at the mill.
Supplied, Programmed And Supported In Malaysia
Authorized Distributor
Trinventor Solution is an authorized distributor of Huayan Robotics — genuine machines, factory configurations and manufacturer support behind every unit.
Zone Assessment & Demo
Send us the zone classification and the process. We run the assessment, confirm the right configuration, and arrange a demonstration before you commit.
Integration & Installation
Cell design, integration, installation and commissioning — end effectors, interlocks, the safe-area control box arrangement and the safety configuration.
Programming & Training
We program the first applications and train your team — including operation via the wireless pendant and tablet from outside the zone.
Spares & Service Contracts
Consumables, spare parts and preventive maintenance — service contracts that keep the cell earning instead of waiting on an overseas shipment.
Huayan Robotics — HKEX-listed (1021.HK) — builds the Elfin-Ex with national
explosion-proof certification (NEPSI, GB/T 3836-2021). Trinventor brings it to Kuala Lumpur, Selangor, Penang,
Johor, Ipoh, Kuantan, Kota Kinabalu and Kuching.
Huayan Elfin-Ex Specifications
Manufacturer’s published specification for the robots we supply, install and support in Malaysia.
MarkingEx ib pxb IIC T6 Gb / Ex ib pxb IIIC T80 °C Db
Power220 V AC
Explosion-proof marking
Ex ib pxb IIC T6 Gb / Ex ib pxb IIIC T80 °C Db
Nationally certified (NEPSI) to GB/T 3836-2021 — Gb equipment protection for gas atmospheres (group IIC,
temperature class T6) and Db protection for combustible dust (group IIIC, T80 °C maximum surface
temperature). We confirm the zone suitability and certification documents for your site.
Motion & robot
Degrees of freedom
6-axis across the range
Repeatability
±0.02 mm (E05F) · ±0.03 mm (E10F / E10F-L) · ±0.05 mm (E12F / E15F)
Leak-compensated positive-pressure system · ignition-source medium isolation · multi-seal housing · composite intrinsic-safety + positive-pressure design
Monitoring
Real-time positive-pressure monitoring with power-off protection
Configurations
Standard (arm + control box protected, both may sit in the hazardous area) · Economic (arm protected, control box in a safe area, cable up to 20 m) · Customised
Operation
Explosion-proof teach pendant & tablet · wireless range up to 50 m
Control & I/O
Control boxes
Economic: 600 × 350 × 655 mm, 50 kg · Explosion-proof: 800 × 520 × 1600 mm, 100 kg
I/O
16 DI (8 configurable) · 16 DO (8 configurable) · 2 AI · 2 AO
Power
24 V 1.5 A (3 A external) · AC 220 V
Communication
Modbus TCP · Ethernet TCP/IP
Safety
Ten safety functions, configured around your layout during commissioning
Environment & cabling
Protection
IP66
Operating temperature
−20–40 °C
Power supply
200–240 V AC (AC 220 V nominal)
Arm-to-box cable
Up to 15–20 m (customizable) — economic configuration, box placed outside the zone
All figures as published by Huayan Robotics for the Elfin-Ex line. Tell us the application and we will confirm the exact configuration in writing.
Huayan Elfin-Ex — FAQs
What is the Huayan Elfin-Ex?
It is Huayan Robotics’ explosion-proof collaborative robot line: five six-axis models from 7 kg to 18 kg payload (E05F, E10F, E10F-L, E12F, E15F) built with a composite positive-pressure and intrinsic-safety architecture and national explosion-proof certification — for paint, chemical, oil & gas, combustible-dust and similar hazardous environments.
Is it actually certified?
Yes. The robot carries national explosion-proof certification from NEPSI to GB/T 3836-2021, and the marking is Ex ib pxb IIC T6 Gb / Ex ib pxb IIIC T80 °C Db — covering gas atmospheres (group IIC, T6) and combustible dust (group IIIC, T80 °C). We share the certification documents that apply to your project before you commit.
How does an explosion-proof cobot actually work?
Three systems work together: a leak-compensated positive-pressure envelope keeps the internal pressure above the hazardous atmosphere so explosive gas and dust cannot enter; ignition-source medium isolation separates spark-capable components from the environment; and a multi-seal housing closes every joint and cable entry. The positive pressure is monitored in real time with power-off protection.
Which environments does the Elfin-Ex suit?
Paint and coating booths, oil & gas and petrochemical plant areas, chemical and pharmaceutical production, combustible-dust and powder handling, civil-explosive and defence work, refuelling and gas-filling environments. Send us the zone classification and substance — we confirm suitability from the certification for your site.
Which Elfin-Ex model do I need?
The same way you would size any cobot: payload (including the gripper) and reach. E05F (7 kg / 800 mm) is the compact entry into hazardous work, E10F and E10F-L cover 10–12 kg at up to 1300 mm, E12F reaches 1800 mm, and the E15F carries 18 kg. Tell us the part and the cell layout and we will size it with you.
Can the control box sit outside the hazardous area?
Yes — that is the economic configuration: the arm is protected but the control box stands in a safe area, connected by cable up to 20 m (15–20 m, customizable). In the standard configuration both the arm and the control box are explosion-proof and may sit inside the zone.
How do we operate it inside the zone?
With the explosion-proof teach pendant and tablet — wireless range up to 50 m, so the cell can be set up, jogged and monitored from outside or at a distance inside the plant. Operators are trained on your own cell.
What protection and temperature does it carry?
IP66 — dust-tight and protected against water jets — over an operating range of −20 to 40 °C, on a 200–240 V AC (220 V nominal) supply.
Do you provide installation, training and support in Malaysia?
Yes — the full lifecycle: zone and feasibility assessment, demonstration, integration, installation and commissioning, programming, operator training, spare parts and service contracts. Trinventor Solution is an authorized distributor of Huayan Robotics in Malaysia, so parts and support do not depend on an overseas flight.
How much does the Huayan Elfin-Ex cost in Malaysia?
There is no one price: the figure depends on the model (E05F to E15F), the configuration (standard, economic or customised), the end effector, the cell design and how much integration and training you need. Tell us the application and zone — and we will quote the complete solution with lead times.
Berapa harga Huayan Elfin-Ex di Malaysia?
Harga bergantung pada konfigurasi: model E05F hingga E15F, pilihan konfigurasi standard atau ekonomi, gripper atau tooling, reka bentuk sel dan keselamatan, serta skop integrasi dan latihan. Beritahu kami aplikasi dan zon anda — kami akan berikan sebut harga penyelesaian lengkap termasuk pemasangan dan sokongan tempatan.
Bolehkah saya lihat robot ini beroperasi sebelum membeli?
Boleh. Kami menyediakan demonstrasi dan penilaian teknikal — kongsi klasifikasi zon dan proses anda dan kami akan tentukan konfigurasi yang sesuai, kemudian aturkan demonstrasi sebelum anda membuat keputusan.
Ready To Robotise A Hazardous Area?
Send us the zone, the substance and the task — we will confirm the right Elfin-Ex model and
configuration, arrange the assessment and demonstration, then quote it as a complete Malaysian solution: robot,
integration, installation, programming and training.
