FORMLABS MALAYSIA · MASKED SLA (MSLA) RESIN 3D PRINTER
Industrial speed in a desktop SLA 3D printer — most prints finished in under 2 hours, razor-sharp 50 µm details and parts that rival injection moulding, from a machine anyone can learn in 15 minutes.

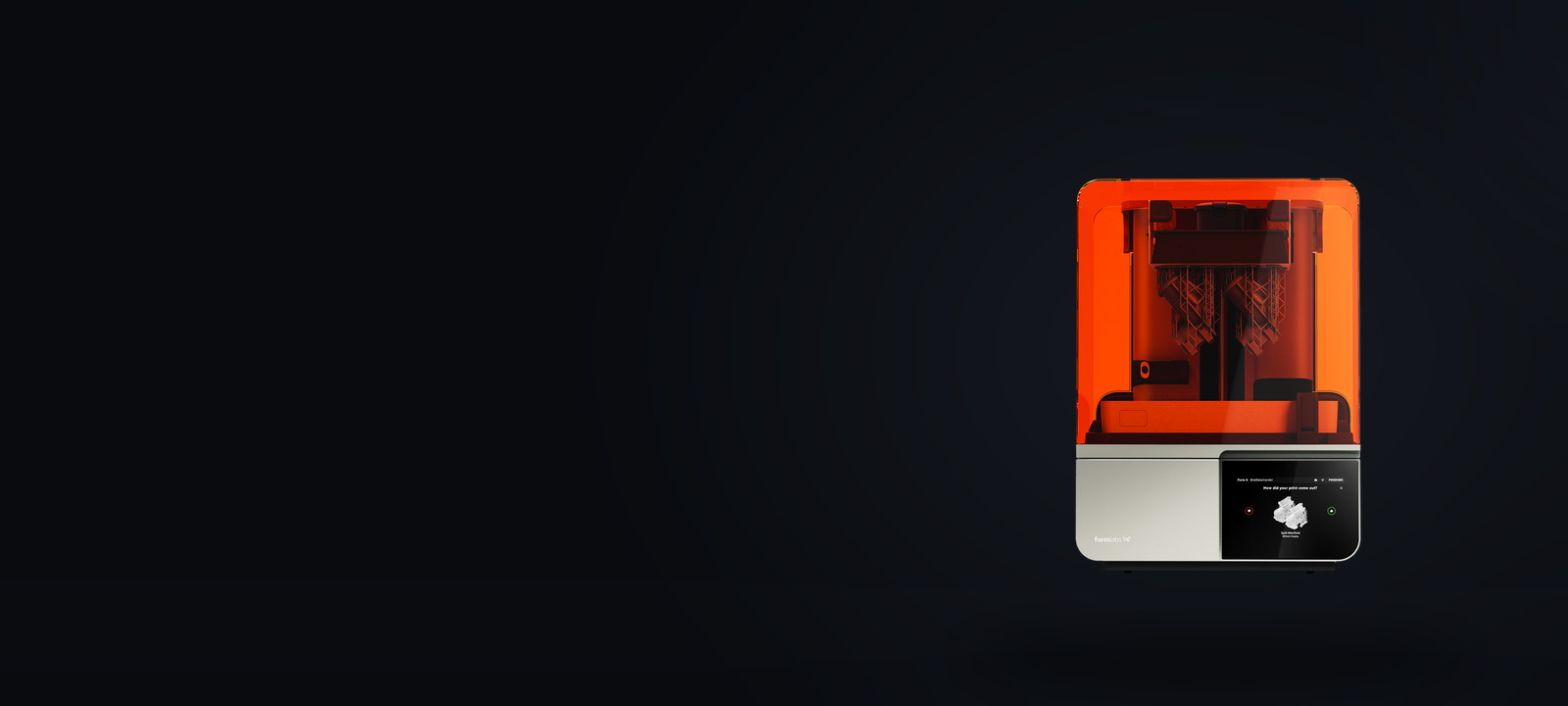

The Form 4 is the fastest professional resin 3D printer Formlabs has built — powered by Low Force Display (LFD) technology, with 5.25 litres of build volume and a workflow so simple anyone can learn it in 15 minutes.
At the heart of the Form 4 is a new print engine. The Backlight Unit projects a uniform, ultra-high-power light field using 60 LEDs and a collimating lens array — 405 nm at 16 mW/cm² delivered to the cure plane. Resin cures quickly and precisely, with identical quality anywhere on the build platform.
Lower peel forces and precise light delivery are what make Form 4 prints both fast and flawless — whether it's part number one or a full plate of thirty.
Factory-calibrated out of the box, monitored remotely, and validated material by material — the reliability that keeps a resin printer busy instead of benched.
Most prints finish in under 2 hours — and print time barely changes whether you load one part or a full build of many.
Every Form 4 ships factory-calibrated with resin level sensing and automatic resin dispensing — unbox, load a cartridge, print.
Watch prints from anywhere via Dashboard, with the integrated 5 MP camera capturing timelapses of every job — on one printer or a whole farm.
A fly-through of the LFD engine — backlight unit, processing unit and release texture, engineered as one optical system.
The Form 4 replaced specialist resin craft with a four-step workflow: import and prepare, load and print, remove–wash–cure, then finish. Every step is automated where it counts.
One-click print, adaptive layer thickness and remote print start — a new operator is productive on day one, not week three.
Sharpest details, smoothest surfaces, most accurate assemblies — the three things every engineer checks first, delivered together.
Highly collimated light and 50 µm pixel size with pre-tuned anti-aliasing deliver subpixel resolution on the finest features.
Lower peel forces and light-touch supports keep surfaces clean enough to rival injection moulded parts.
±0.15% XY dimensional tolerances on small features — assemblies and jigs fit the first time, every time.
Every Formlabs resin ships with settings validated in-house — a proven recipe for each material, no experimentation required.
Six upgraded sensors watch resin temperature, level, print forces and status — catching issues before they become failed prints.
Flexible-film resin tanks and light-touch supports reduce wear, waste and post-processing on every single print.
One part, or a full plate of parts — the same print time. Form 4 scales throughput without scaling time.
Batch after batch of end-use parts — about a minute of machine time per part at full plate efficiency.
Engineering prototypes, production tooling, consumer products and packaging — Form 4 resins cover rigid, tough, elastic, silicone, flame-retardant, castable and high-temperature work.
High Temp resin moulds and forming tools, printed in hours for in-house production lines.
Elastic and silicone-style resins for gaskets, seals, pads and grips that bend and recover.
Snap-fit housings and assemblies that survive real-world testing before you commit to tooling.
End-use components like robotic fingers with toughness, precision and finish off the printer.
Jigs, fixtures, fluidics and test rigs — accurate parts with the tolerance to assemble first-time.
Bottle moulds, package prototypes and consumer-grade parts in clear and general-purpose resins.
23 Formlabs materials spanning rigid, tough, elastic, silicone, castable, ceramic and flame-retardant chemistry — or use Open Material Mode to print qualified third-party resins. Ask us for material advice for your application.
Form 4, Form Wash and Form Cure delivered, installed and commissioned — Peninsular Malaysia; Sabah and Sarawak by arrangement.
Onboarding for your team: PreForm workflow, resin handling, support removal, wash and cure routines — typically a single session.
Resin cartridges, tanks, build platforms and finishing tools — stocked locally so your printer never waits for supplies.
Print-quality troubleshooting and maintenance from a team that runs professional resin printers every working day.
Serving Kuala Lumpur, Selangor, Penang, Johor, Ipoh, Kuantan, Kota Kinabalu and Kuching.
Manufacturer's published specification for the machine we supply, install and support in Malaysia.
| Technology | Masked Stereolithography (MSLA) |
|---|---|
| Printer engine | Low Force Display™ (LFD) |
| Key components | Backlight Unit, Light Processing Unit 4, Release Texture, flexible-film resin tank, intelligent control systems, high-speed automatic resin handling |
| Light source | 60 uniform-wavelength LEDs, plano-convex lens array, integrated air cooling 405 nm · 16 mW/cm² at the cure plane · 50 µm pixel |
| Layer thickness | 25–200 µm |
| XY resolution | 50 µm with pre-tuned anti-aliasing for subpixel resolution |
| Resin handling | Next-generation cartridge (1), automatic dispensing, 5–10× faster filling |
| Resin heating | High-speed conduction heating with infrared sensing, 25–45 °C |
| Force sensing | Z-axis force sensor — optimises quality and speed per geometry |
| Maximum print speed | 100 mm/hour |
|---|---|
| Typical print speed | 40 mm/hour average (16–50 mm/hour by material) |
| Typical print time | Under 2 hours (typical 53 mm height, 100 µm, most materials) |
| XY tolerances | 1–30 mm features: ±0.15% (min ±0.02 mm) 31–80 mm: ±0.2% · 81–150 mm: ±0.3% |
| Build volume | 200 × 125 × 210 mm — 5.25 litres |
| Build area | 250 cm² |
| Maximum part length | 273 mm |
| Reliability | 98.7% print success rate, measured by an independent third-party lab |
| Printer dimensions | 398 × 367 × 554 mm |
|---|---|
| Printer weight | 18.3 kg |
| Operating environment | 18–28 °C |
| Power requirements | 100–240 VAC, 4.8 A, 50/60 Hz, 480 W |
| Connectivity | Wi-Fi (2.4/5 GHz), Gigabit Ethernet, USB-C |
| Display | 7-inch interactive touchscreen, 1280 × 800, multilingual |
| Camera | 5 MP (2592 × 1944) — remote monitoring, print history, timelapses |
| Sensors | Infrared resin temperature, ultrasonic resin level, Z-axis force, cartridge load cell, leveling sensor, camera |
| Alerts | Touchscreen, SMS/email via Dashboard, audio |
| Software | PreForm, Dashboard |
|---|---|
| File input / output | STL, OBJ, 3MF input · FORM output |
| PreForm features | One-click print, adaptive layer thickness, remote print, auto-orient, auto-mesh repair, advanced support editing |
| System requirements | Windows 10+ (64-bit) or macOS 13+, 8 GB RAM recommended |
| Materials | 23 Formlabs resins — rigid, tough, general purpose, clear, high temp, flame retardant, silicone, elastic, castable, ceramic — or third-party resins via Open Material Mode |
| Biocompatible | Available on Form 4B |
| Ecosystem | Form Wash (cleaning), Form Cure (post-curing), Form 4L for larger parts |
Brochure: Formlabs Form 4 / Form 4L SLA ecosystem sell sheet (PDF) — official manufacturer document.
*Typical print time using 80th percentile print height (53 mm), 100 µm layer height and most materials; comparison figures as published by Formlabs.
Official films from Formlabs — the Form 4 launch, the Form 4 & 4L introduction, a full workflow overview and a guide to SLA resin printing.
200 × 125 × 210 mm (5.25 litres) with a maximum part length of 273 mm — engineering prototypes, jigs and fixtures, consumer enclosures, gaskets, moulds and end-use parts in your choice of 23 Formlabs resins.
Most prints finish in under 2 hours at 100 µm layers — against roughly 3h37m for a benchmark FDM printer and 10h47m for the Form 3+. Maximum print speed is 100 mm/hour, and print time is nearly the same whether you print one part or a full plate.
±0.15% XY tolerance on 1–30 mm features (minimum ±0.02 mm), 50 µm pixel size with pre-tuned anti-aliasing, and low peel forces with light-touch supports — parts with surfaces that rival injection moulding, and assemblies that fit first time.
Yes. 23 Formlabs materials cover rigid, tough, general-purpose, clear, high-temperature, flame-retardant, silicone, elastic, castable and ceramic work. Open Material Mode lets you print qualified third-party resins. Biocompatible materials are available on the Form 4B.
Parts are washed and post-cured for full material properties. The Form 4 ecosystem includes Form Wash for automated cleaning and Form Cure for precision post-curing — we supply, install and support both alongside the printer.
PreForm for print preparation — one-click print, auto-orientation, auto-supports, mesh repair and live printability checks — plus Dashboard for fleet management, remote monitoring and timelapses. STL, OBJ and 3MF files in, FORM files out.
Form 4 was measured at a 98.7% print success rate by an independent global testing leader, backed by validated print settings per material, intelligent control systems, factory calibration and long-lasting consumables.
Yes. The Formlabs Form 4L uses the same LFD technology with a substantially larger build volume — full-volume prints in under 6 hours. Talk to us about the Form 4L if your parts exceed 273 mm.
Price depends on configuration: printer, resin starter selection, Form Wash and Form Cure options, plus delivery, installation and operator training. Request a quote and we will send a complete Malaysian quotation with lead time.
Yes — send us your part file and application details. We will recommend the right resin, workflow and configuration for your team, and quote the complete setup for Malaysia.
Harga bergantung pada konfigurasi: pencetak, pilihan resin, Form Wash dan Form Cure, termasuk penghantaran, pemasangan dan latihan operator. Hubungi kami untuk sebut harga lengkap di Malaysia.
Ya — dengan resolusi 50 µm, toleransi ±0.15%, kadar kejayaan 98.7% dan lebih 20 jenis resin kejuruteraan, Form 4 sesuai untuk prototaip fungsian, acuan, jig dan komponen akhir. Kami menyediakan pemasangan, latihan dan sokongan tempatan.
Tell us what you need to print — part size, application and material — and we will quote the Formlabs Form 4 configured for your workflow, including Form Wash, Form Cure, delivery, installation and operator training in Malaysia. Have a part in mind? Send us the file and we will advise on the right resin and print settings for it.
Prefer to talk first? Contact our team or WhatsApp us — or browse our SLA 3D printers and the rest of the Formlabs range.
