Flame-Retardant 3D Printing Filament: What UL94 Ratings Mean

Flame-Retardant 3D Printing Filament: What UL94 Ratings Mean

Quick verdict: A UL94 rating records how a small standard specimen behaves under one defined flame. It does not make a printed part fireproof. Rated filament buys documented small-flame behaviour, and you pay for it in toughness, flow and nozzle life.

Flame-retardant filament exists for the parts that sit inside something electrical: an enclosure, a control panel, a housing around a power supply. The spool label carries a short code such as V-0 or V-2, and most buyers treat that code as a pass mark without asking what was tested.

This guide explains what UL94 measures, what each rating means in plain language, and what to verify before you stake a product on a supplier’s claim.

What flame-retardant filament is, and what it is not

A flame-retardant filament is an ordinary base polymer, ABS, polycarbonate, nylon or PETG, compounded with additives that interfere with combustion. Some act in the gas phase, interrupting the chain reaction that keeps a flame alive. Some push the polymer to form an insulating char layer. A third group, the hydrated mineral fillers, breaks down endothermically and releases water vapour that cools the surface and dilutes the flammable gases.

What it is not is a fireproof part. Flame-retardant filament does not make a 3D printed component fireproof. A V-0 part still ignites under a sustained flame, still gives off smoke, and still adds fuel to a fire that is large enough. Nor does it replace design: creepage distances, fusing, earthing and thermal management keep doing their jobs.

What UL94 actually measures

UL94 is a small-scale flammability standard for plastics used in devices and appliances. A specimen of fixed size is clamped in a chamber, a calibrated flame is applied for a set time, and the operator records four things. The afterflame, meaning how long it burns once the flame is removed. The afterglow, meaning how long it glows afterwards. Whether it drips. And whether a drip that lands on the cotton below sets the cotton alight.

Three test methods sit inside the standard. A horizontal test gives HB. A vertical test with a small flame gives V-2, V-1 and V-0. A vertical test with a 500 W flame gives 5VB and 5VA. Thin films and foams have their own rating families.

Two limits matter. UL94 says nothing about heat release rate, smoke density or smoke toxicity, and nothing about how an assembly behaves in a real fire. It is a bench test on a specimen the size of a pencil, and it ranks materials rather than describing a fire.

UL94 ratings in plain language

What each rating requires of the specimen, in plain language.

Rating	Test	What the specimen has to do	What it means for your part
HB	Horizontal, 30 second flame	Burn rate under 40 mm per minute from 3 to 13 mm thick, under 75 mm per minute below 3 mm; flame stops before the 100 mm mark	Entry level: it burns slowly, but it keeps burning
V-2	Vertical, two 10 second flames	Afterflame 30 seconds or less; burning drips that ignite the cotton are allowed	Self-extinguishing, but it drops burning material
V-1	Vertical, two 10 second flames	Same timing as V-2, and no drip may ignite the cotton	The practical floor for electrical parts
V-0	Vertical, two 10 second flames	Afterflame 10 seconds or less each and 50 seconds or less across the set; afterflame plus afterglow 30 seconds or less after the second flame; no drip igniting the cotton	The rating most specifications name
5VB	500 W flame, five times for 5 seconds	Afterflame plus afterglow 60 seconds or less after the fifth application; no drip igniting the cotton; a hole may be burned through the plaque	Survives a much larger flame, the kind a fault can produce
5VA	The same 500 W vertical test	Same timing and drip limits, and no hole may be burned through the plaque	The most demanding UL94 rating quoted for solid plastics

Read the scale in the right direction. HB is weakest, V-2 sits below V-1 because its drips may ignite the cotton, and V-0 is the strongest of the small-flame ratings. The 5VA and 5VB ratings sit above all of them, because the flame is far more severe.

Flame-retardant 3D printed test specimens prepared for UL94 evaluation

A rating belongs to a thickness, a colour and a specimen

UL94 results are quoted with the conditions they were earned under. Leaving those off is the commonest way a datasheet misleads.

Thickness. One compound can hold V-0 at 3 mm and only HB at 0.8 mm. If your wall is 1.2 mm and the listing starts at 1.5 mm, you have no rating at that thickness.
Colour. Pigments change burn behaviour, so a black V-0 grade does not prove that the white version passes.
Specimen. The bar a laboratory tests is moulded under pressure, with no voids, layer lines or seams. A printed part has all three, so it burns differently across the layers than along them.
Resin, filament or printed part. A supplier may quote a rating held by the base resin, by a moulded sample, or by printed specimens at a stated layer height, wall count, infill and orientation. Only the last describes anything like the part on your machine.

When a customer hands over a requirement it usually names a rating and a thickness. Ask the follow-up first: at which thickness, in which colour, and measured on what kind of specimen.

Flame-retardant material families for fused deposition

Four families cover almost all of the work in FDM and powder-bed printing.

ABS FR

ABS with a flame-retardant package, usually brominated with a synergist and increasingly halogen-free. It prints like standard ABS and needs an enclosure. V-0 grades are commonly listed at 1.5 to 3 mm. Stiffer and more brittle than plain ABS, it is the default for enclosures and equipment housings.

Polycarbonate FR

The stiffest and strongest of the group, with V-0 grades at thin sections. It needs a heated chamber and thorough drying. Polycarbonate is prone to stress cracking, so design generous radii. It suits power-supply housings and electrical hardware that runs warm.

Flame-retardant nylon

Nylon with a halogen-free package, usually phosphorus based or mineral filled, and the same chemistry appears in powder-bed grades. It offers the best toughness of the four and a higher service temperature than ABS, with V-0 and V-2 grades available. Moisture is the price of entry, so print from a dry box. Typical uses are connectors, cable glands and brackets near a heat source.

Flame-retardant PETG

The easiest of the group to run, on an open machine, and it resists humidity and most workshop chemicals. Rated grades exist, though V-2 and HB are more common than V-0 at useful thicknesses, so check what is listed. Its ceiling near 70 to 80 °C suits covers, ducting and electronics accessories that stay cool.

Where a part must be both flame retardant and static dissipative, a rated grade and an ESD-safe filament are specified for different parts of the same assembly. Where stiffness matters more than impact, a glass fibre blend sometimes joins the specification.

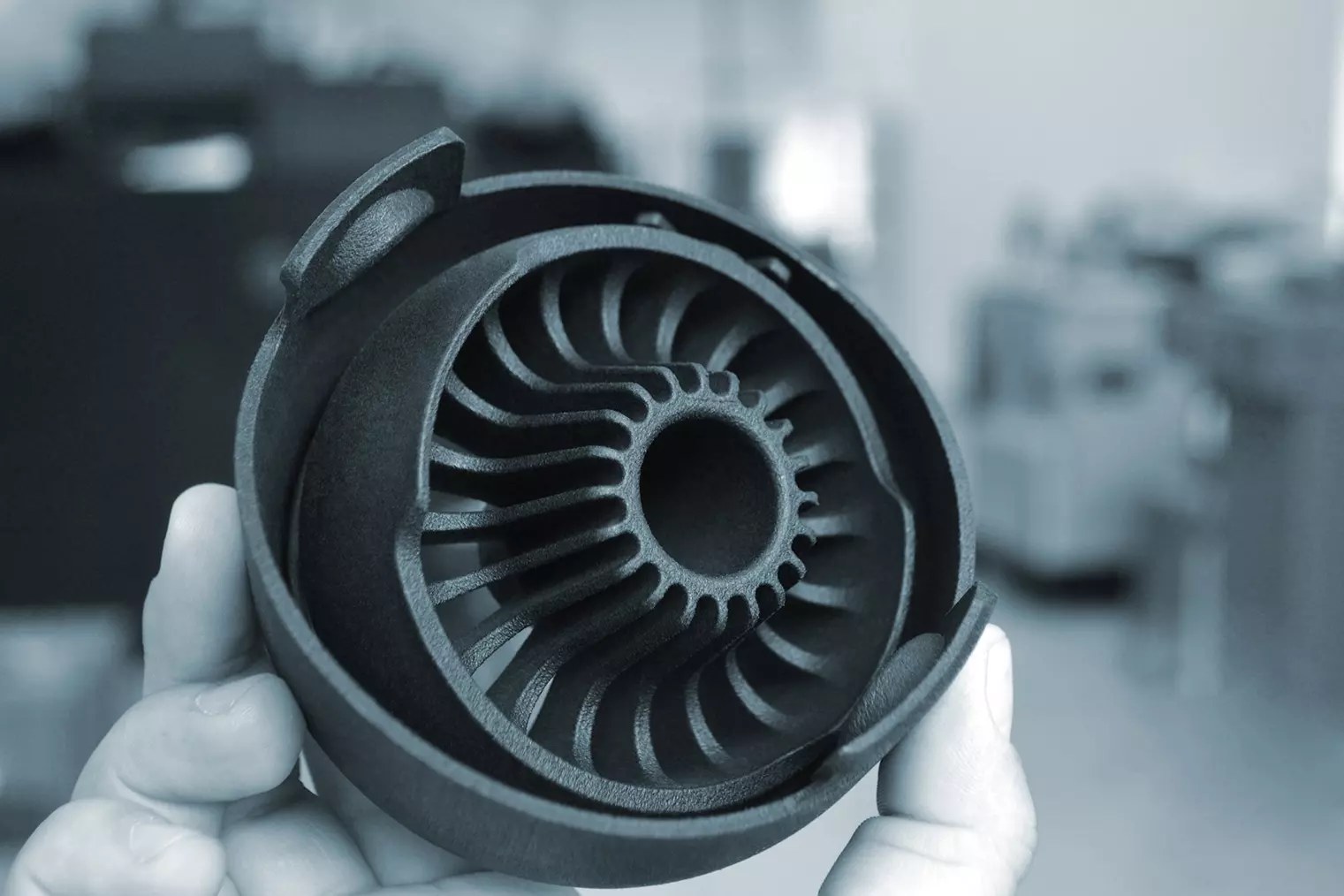

Flame-retardant printed components held after production for industrial use

What the additives do to mechanical properties

Flame retardants are blended into the polymer in quantity, and quantity changes properties. A brominated package works at low loading, so the penalty stays modest. A hydrated mineral filler such as aluminium hydroxide needs far more of it for the same result, and at those loadings it behaves like the filler in a composite.

Stiffness up, ductility down. Elongation at break falls sharply, so a part that used to bend will now crack.
Impact resistance down. Notched impact results fall and sharp internal corners become crack starters.
Density up. Mineral-filled grades are noticeably heavier, so enter the compound density in the slicer if you use its weight estimate.
Flow down. Higher melt viscosity means more back pressure and a greater risk of under-extrusion at speed.
Layer adhesion down. Additive particles interrupt the chain movement that forms a bond, and fused deposition is already weaker across layers than along them.

Halogenated systems can release acidic gases when they burn, which is the usual reason a project asks for a halogen-free grade, and abrasion rises with filler content.

None of this makes rated filament a bad material, only a different one. Design with thicker walls and more perimeters, and a rated part will do its job.

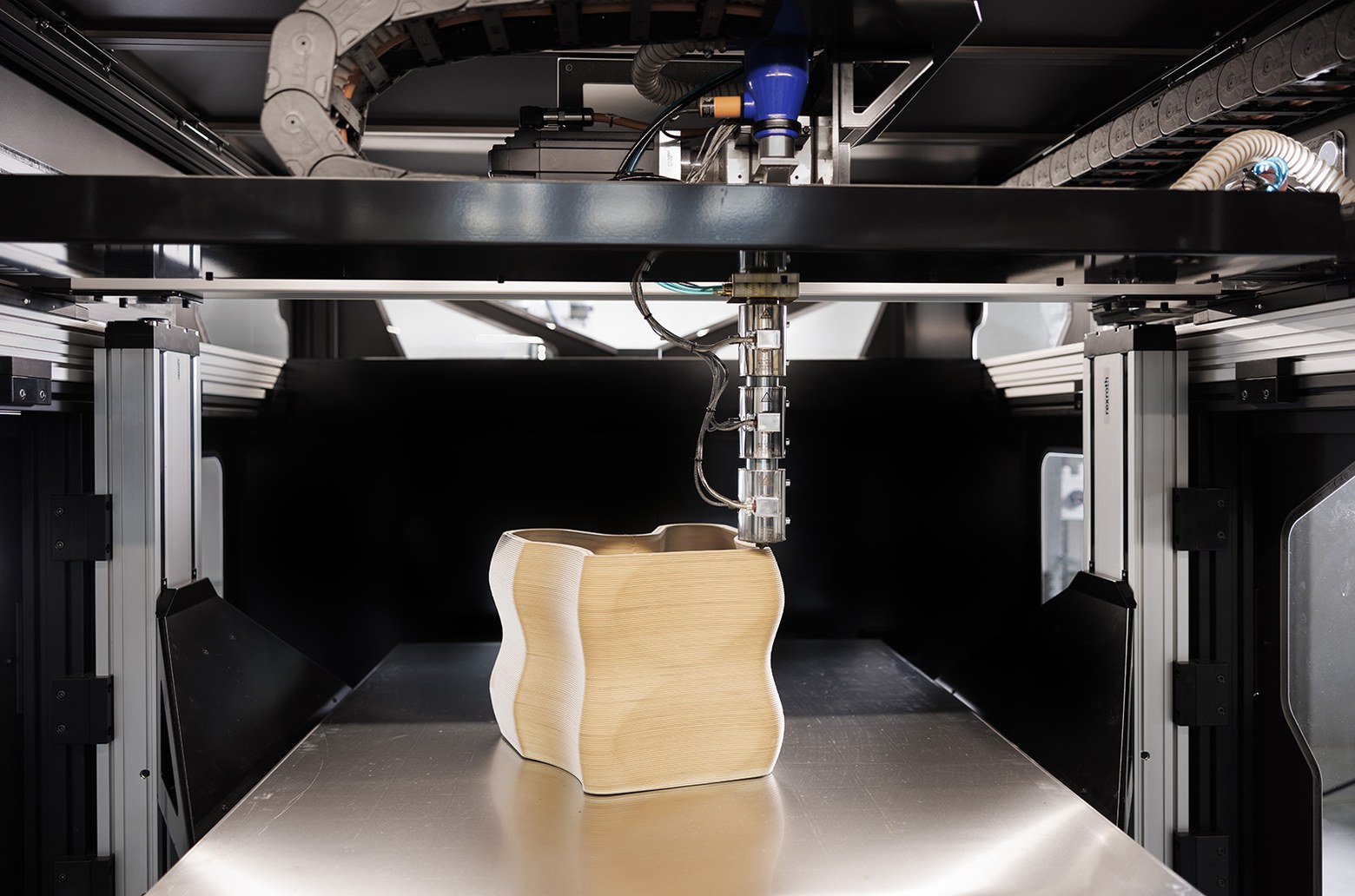

Industrial 3D printer producing large flame-retardant parts

Print settings for flame-retardant filament

Treat the table as a starting point. Rated grades generally want the top of the temperature band for their base polymer, because the additives raise viscosity. Where a supplier published a profile for the spool, start there.

Material	Nozzle	Bed	Chamber	Notes
ABS FR	240 to 260 °C	90 to 110 °C	Recommended	Enclosure plus extraction; more brittle than standard ABS
Polycarbonate FR	280 to 310 °C	100 to 120 °C	Required	Dry thoroughly; expect high torque at the extruder
Flame-retardant nylon	260 to 290 °C	70 to 90 °C	Recommended	Print from a dry box; moisture causes most failures
Flame-retardant PETG	230 to 250 °C	70 to 80 °C	Not needed	Runs open, but the additives are abrasive

Fit a hardened nozzle. A brass orifice opens quickly in these compounds, and 0.6 mm is safer than 0.4 mm on a heavily filled grade.
Slow down. A band of 30 to 50 mm/s suits most of them, and volumetric flow is the real limit.
Use a slightly thicker layer, around 0.2 to 0.25 mm, so there are fewer interfaces to separate.
Keep cooling low on ABS, polycarbonate and nylon, and build three perimeters or more with 30 to 50 per cent infill on structural parts.
Calibrate flow with a single-wall test, and tune retraction because filled material oozes.
Keep layer interfaces away from the load and the heat path, because they are the weak plane mechanically and thermally.

Nozzle wear and the rest of the machine

Nozzle wear is the cost of the additives that make the rating possible, and it arrives quietly. The first sign is a surface that turns rough with no change to the profile. Then come thin, gappy walls, because the opening has grown while the slicer still extrudes for the old diameter.

The answer is a harder nozzle rather than a cleverer profile. Hardened steel resists the filler particles, and carbide or a ruby tip lasts longer again in production. Keep a spare and measure the working nozzle periodically, because a worn one invalidates every calibration you made on a new one. Steel conducts heat differently from brass, so raise the nozzle temperature slightly.

Wear does not stop at the nozzle: the extruder drive gear also loses its teeth edges to abrasive dust. A PTFE-lined hotend is the wrong choice for flame-retardant polycarbonate or nylon, and these materials belong inside an enclosure with carbon and particulate filtration, well away from any machine you use for food-contact parts.

Common problems and fixes

Most failures with rated filaments come from a worn or too-small nozzle, a wet spool, a profile borrowed from the unfilled polymer, or the brittleness the additives bring.

Symptom	Likely cause	Fix
Under-extrusion, thin walls	A worn nozzle, or flow calibrated for unfilled material	Replace the nozzle, recalibrate flow, raise the temperature slightly
Clogging and jams	Oversized filler particles, heat creep, carbonised residue	Use a 0.6 mm hardened nozzle, purge the hotend, avoid idle hot periods
Parts snapping at a layer line	Reduced elongation plus weak interlayer bonding	More perimeters, a thicker layer, a hotter nozzle, larger fillets
Warping, lifted corners	High filler loading and fast cooling on flat geometry	Enclosure, brim, slower first layer, higher bed temperature
Customer questions the rating	The datasheet quoted the resin, not the printed part	Get printed-specimen data and agree thickness, colour and profile in writing

Choosing a rated material, and documenting it

The decision starts from the requirement, not from the rating.

Write down what the end product must satisfy. A customer specification or a market requirement. UL94 is one input, not the whole of it.
Match the base polymer to the service conditions, since temperature, chemical contact, load and impact decide which family is the right starting point.
Get the rating in writing with its conditions: thickness, colour and the material designation on the listing.
Ask what was tested: resin, moulded compound or printed specimen, and with which parameters if printed.
Test your own geometry. Print the enclosure rather than a test bar, because wall thickness, infill and seams change how a flame behaves.
Remember that an assembly is not a material. Creepage, fusing, earthing and thermal design share the duty of containing a fault.
Keep the file: batch reference, spool, profile and supplier declaration. Traceable paperwork carries a customer audit.
Budget for the penalties: more perimeters, slower printing, harder nozzles, more brittle parts.

Demand for rated parts in Malaysia concentrates in electronics contract manufacturing, appliance assembly and power equipment, and the shops that supply them.

Frequently asked questions

What does UL94 V-0 mean for a 3D printing filament?

It means a standard specimen, at a stated thickness and colour, passed the vertical burning test: the flame went out within 10 seconds after each application, the afterflame across the set stayed within 50 seconds, and no drip set the cotton underneath alight. It applies only to the conditions on the listing.

Does flame-retardant filament make a 3D printed part fireproof?

No. It resists ignition better and tends to stop burning when the ignition source is removed. Under a sustained or larger fire the part still burns and gives off heat and smoke. A rated part is not a fire barrier and does not replace fuses, clearances, earthing or thermal design.

Which flame-retardant filament is easiest to print?

Flame-retardant PETG, because it runs on an open machine and needs no chamber. Flame-retardant nylon prints next most easily if moisture is controlled. ABS FR needs an enclosure and extraction, and polycarbonate FR is the most demanding.

Will flame-retardant filament damage my nozzle?

It will wear a brass nozzle. The fillers are abrasive, and a brass orifice opens gradually, which shows up first as rough walls and later as under-extrusion. A hardened steel nozzle solves it, with carbide or a ruby tip lasting longer in production.

Can I print a UL94 rated part on a normal FDM printer?

The printer does not have to be unusual, but the process does. Any machine that reaches the temperature the polymer needs, holds a chamber where required and can run a hardened nozzle will produce the part. Thickness, print profile, wall count, infill and orientation then govern how the printed part behaves compared with the moulded specimen the rating was earned on.
