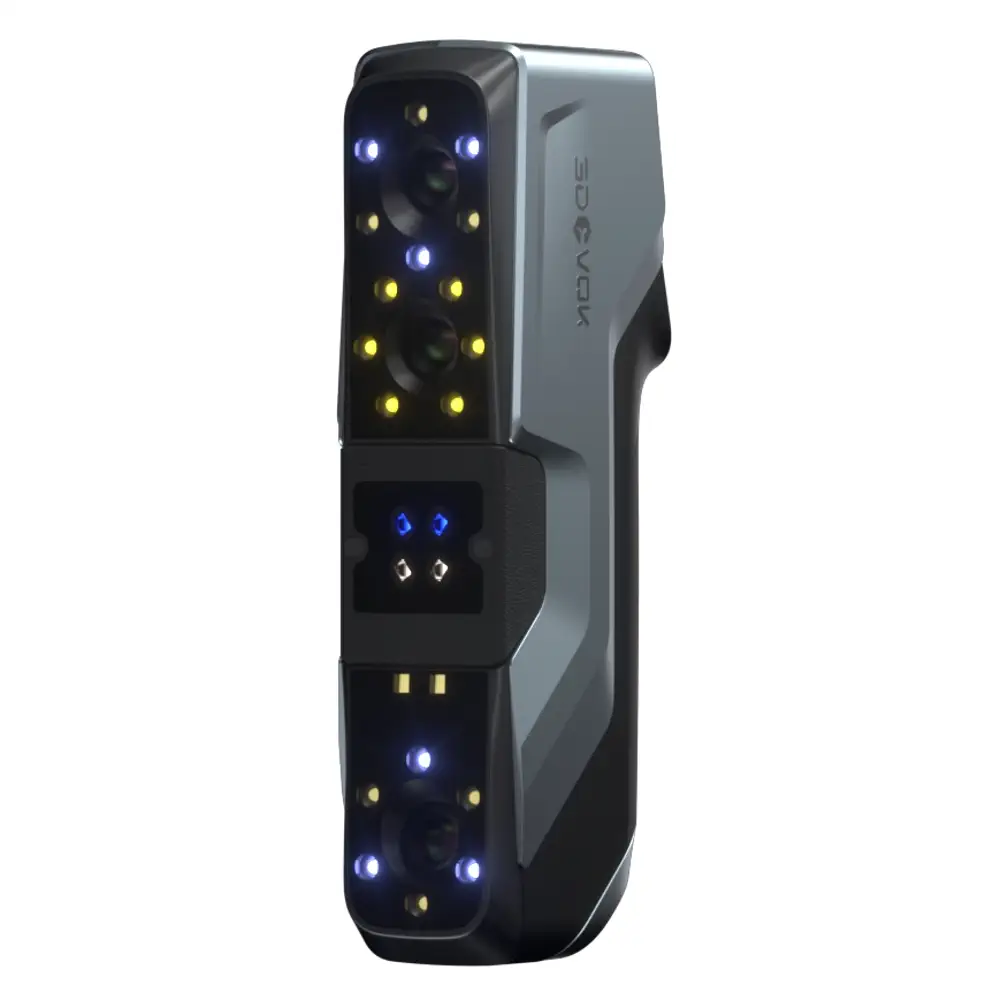

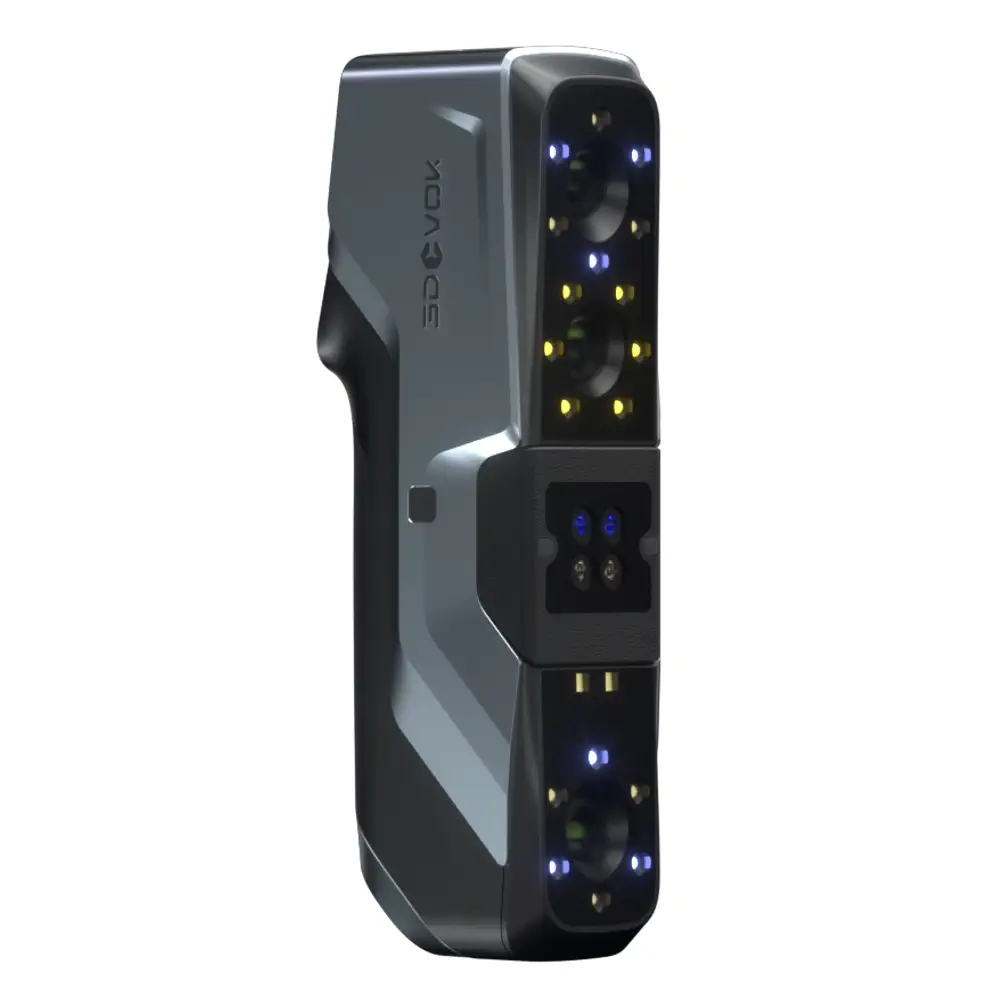

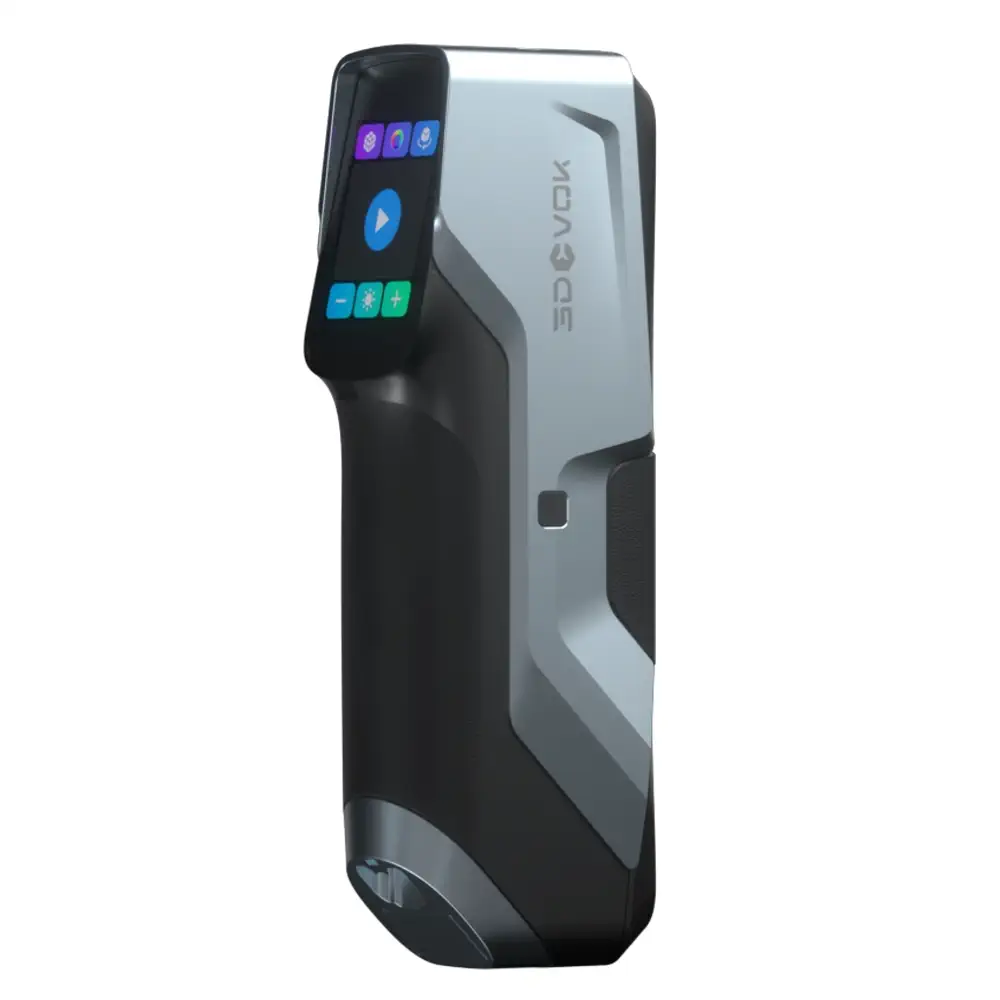

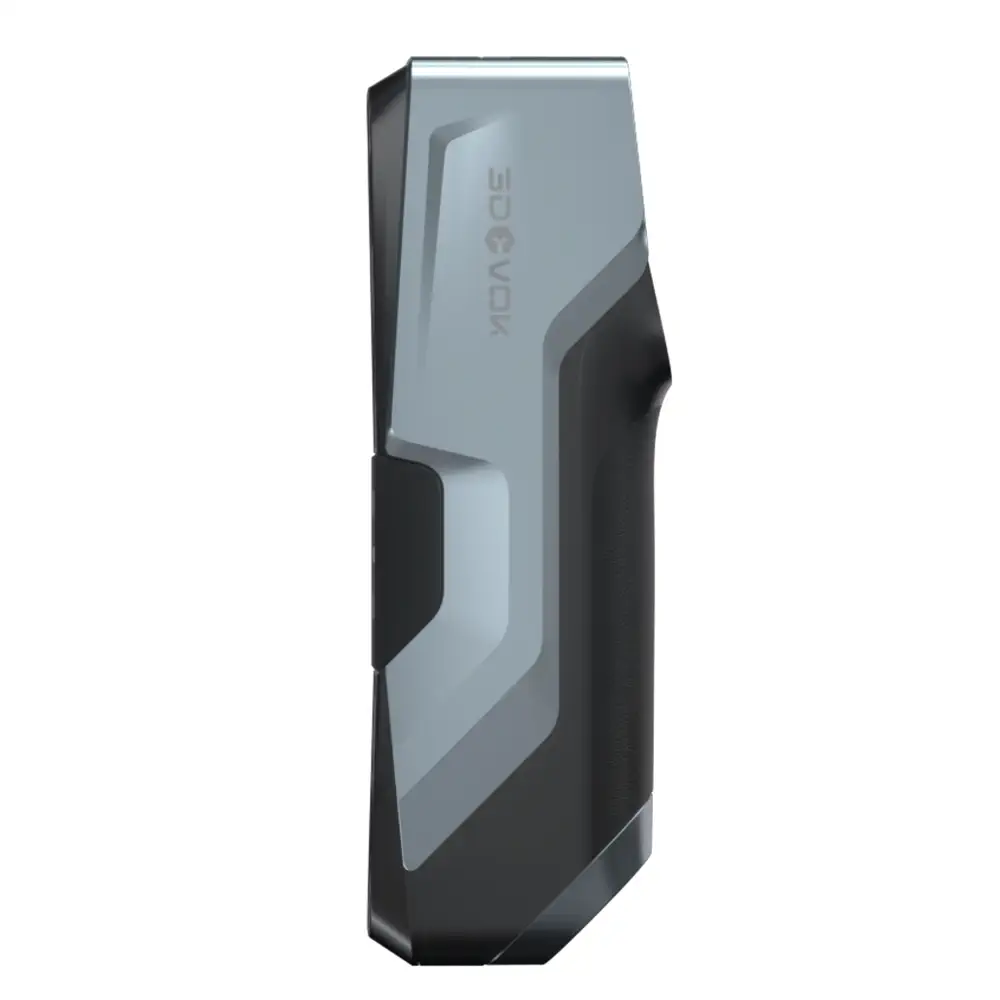

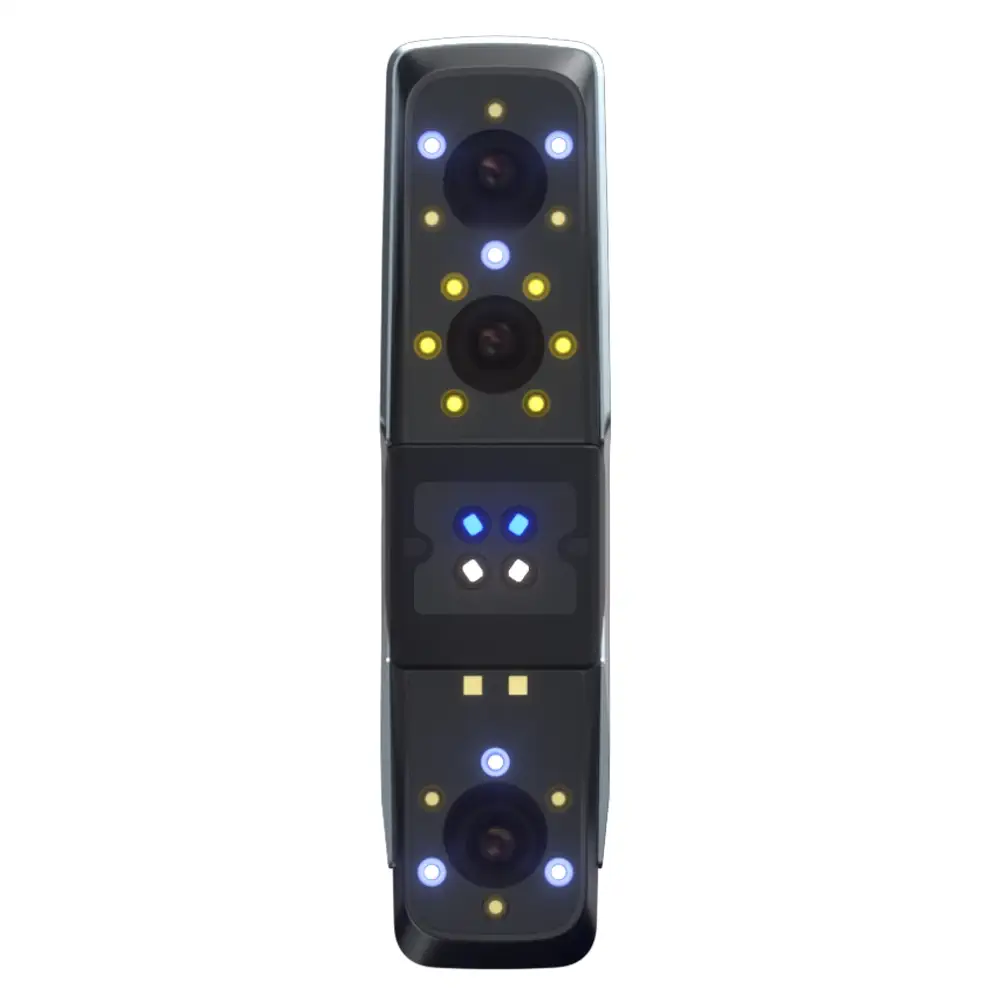

3DeVOK MT

Professional 3D Scanner
Versatile and Powerful, All in One Tool

Facebook
WhatsApp
Email
Twitter

Product Details

3DeVOK MT Professional 3D Scanner Set for a Groundbreaking

Inheriting Industrial-grade Excellence, Designed as a Next-generation Magic Tool

34 blue laser lines + 22 infrared laser lines + Large-area infrared speckle
A versatile all-in-one solution, widely applicable for artistic design, reverse engineering, 3D measurement, 3D visualization, 3D printing, and research and education

3DeVOK MT is engineered for professional productivity, building upon the technological foundation of industrial-grade scanners, MT adopts innovative multi-light source technology to cater to diverse user scenarios. Combined with professional scanning software, flexible parameter settings, intuitive and efficient interaction design, and reliable performance, it significantly enhances work efficiency !

No Targets Needed

Target-free 3D scanning is supported across three light source modes, ensuring easy operations. Its plug-and-play design further enhances on-site scanning efficiency.

Advanced Hybrid Alignment

Integrating next-generation geometric features, textures, and marker-based alignment technologies, the scanner operates seamlessly across various scenarios with little to no need for markers.

Fast and Stable Scanning

Achieve data acquisition speeds of up to 4,500,000 points per second and a maximum scanning frame rate of 70 frames per second.

Adaptable to Various Environments

Perform efficiently in indoor, outdoor, low-light, and even direct sunlight conditions, ensuring reliable results in any setting.

Multi-Size Scanning

Supports the scanning of objects ranging from 0.05 m to 5 m, accommodating diverse size requirements.

Handles Complex Materials

No powder is needed to scan challenging surfaces, including black and reflective objects, black hair, and multi-colored items.

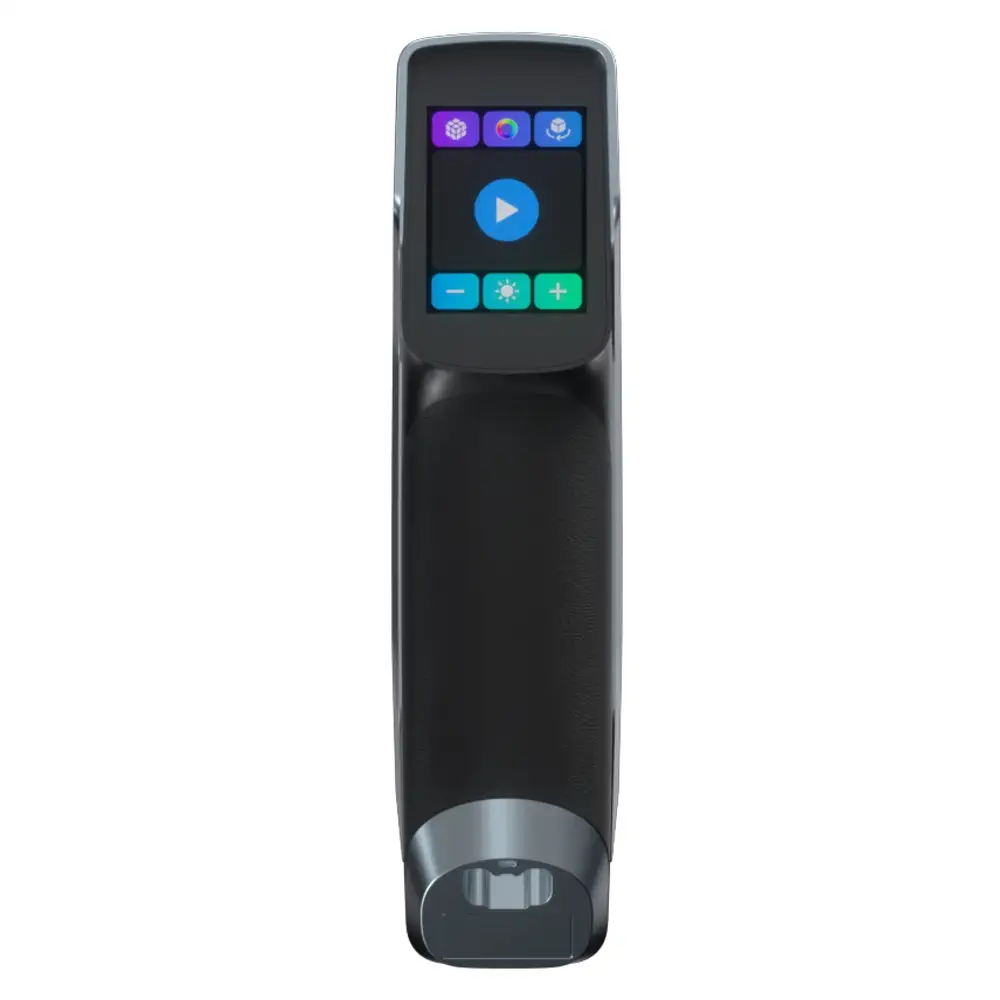

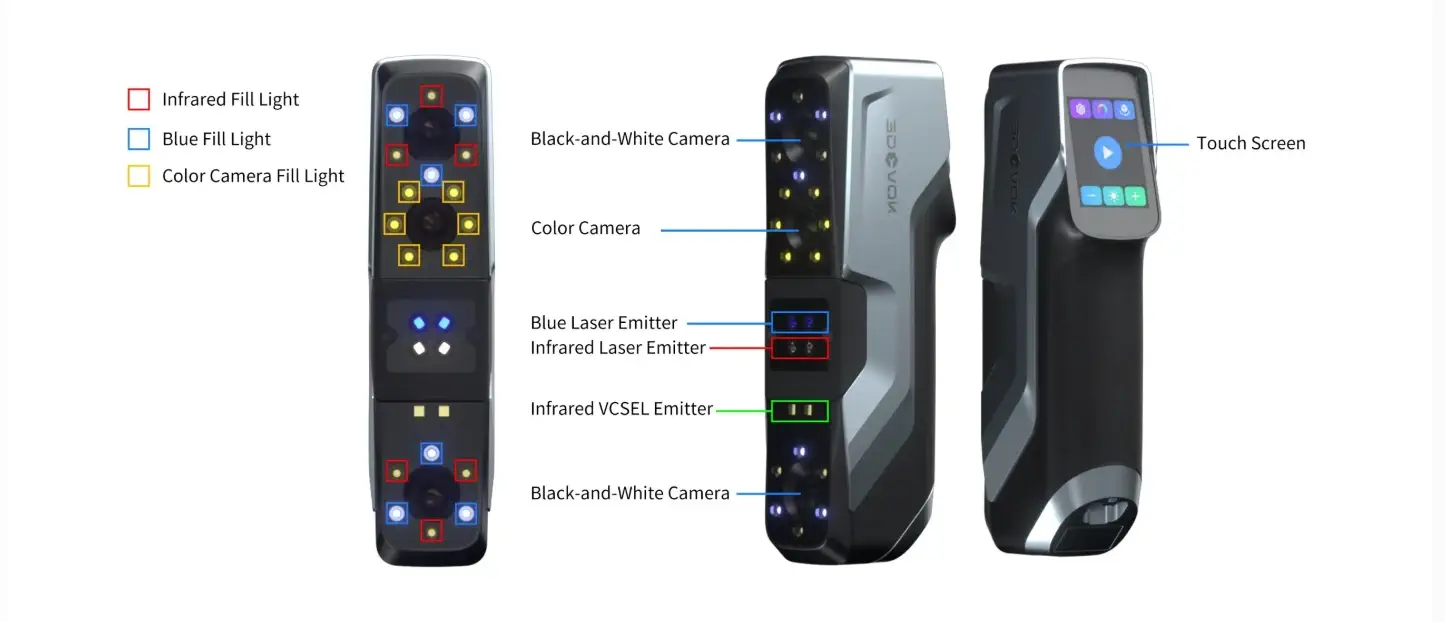

Brand-new Hardware Upgrade

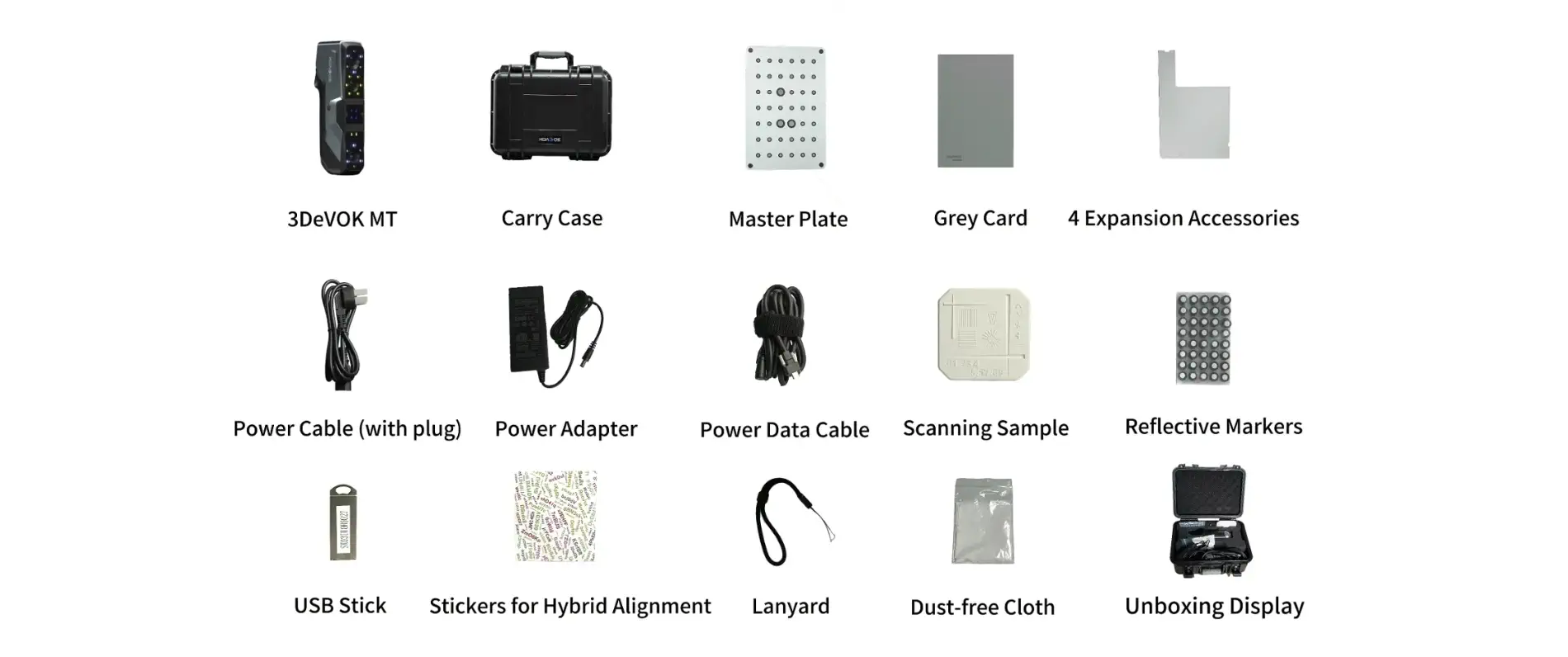

What Is In The Box

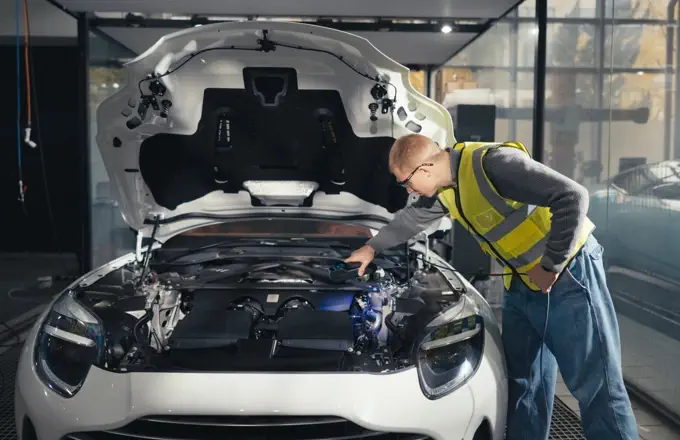

Reverse Engineering

With a 34-line blue laser for efficient scanning and accuracy up to 0.04mm, MT supports common 3D data formats like *.asc and *.stl, compatible with a wide range of reverse engineering software, enabling efficient redesign and manufacturing processes.

Human Digitization

Incorporating eye-safe technology (IEC 60825 certified), MT supports light-free scanning, hair scanning, intelligent clutter removal, and large-format scanning (1100mm x 1000mm). It easily meets the requirements for medical rehabilitation design, personalized body part customization, and artistic portrait design.

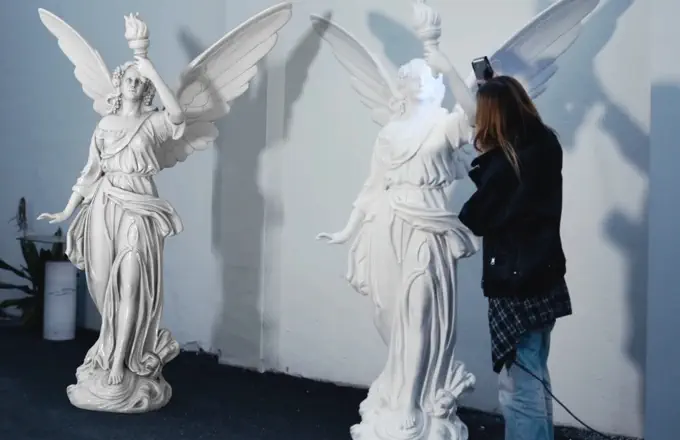

Artistic Design

Utilizing blue laser, infrared laser, and large-area infrared speckle for target-free scanning, MT offers a high level of detail with a resolution of up to 0.1mm. Coupled with color scanning and high-definition texture mapping technology, it effectively meets the needs of artistic design, data archiving, and 3D visualization.

Technical Specification

3DeVOK MT Technical Specifications
Light Source 34 Blue Laser Lines 22 Infrared Laser Lines Infrared VCSEL Structured Light
Laser Class Class Ⅱ (Eye-safe) Class Ⅰ (Eye-safe)
Scan Features Markerless scanning Markerless scanning

Light-free scanning

Markerless scanning

Light-free scanning

Partial fine scanning

Rapid scanning at ultra-large FoV

Basic Accuracy ✱ Up to 0.04 mm
Volumetric Accuracy ✱ Up to 0.04 mm + 0.06 mm/m
Point Distance 0.05 – 5 mm 0.1 – 5 mm
Alignment Mode Support hybrid, markers, texture, and geometric features alignment Support hybrid, texture, and geometric features alignment
Ability to Capture Texture Yes
Scanning Distance 150 – 1,000 mm 150 – 1,500 mm
Field of View 140 mm × 140 mm – 490 mm × 490 mm 50 mm × 75 mm – 1,100 mm × 1,000 mm
Scanning Rate Up to 3,300,000 Points/s Up to 2,450,000 Points/s Up to 4,500,000 Points/s
Output Formats *.obj, *.stl, *ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk
Operating

Conditions

0–40°C, 10%–90% RH (non-condensing)
Interface USB 3.0
Scanner Dimensions & Weight Dimensions: 215 mm × 73 mm × 53 mm; Weight: 640 g
Power Source DC: 12 V, 5.0 A
Certifications CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC
Recommended Configurations for PC OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above;

Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above;

Graphics memory: 6GB and above

✱ The laboratory theoretical accuracy test results are subject to uncertainty errors.
