OptimScan Q12

Shining 3D OptimScan Q12

High-Precision 3D Inspection Scanner

  • 4 × 12.3 MP Cameras
  • Dual Scan Range
  • Monocular-Stereo Fusion (MSF)
  • Multiple Exposure
Facebook
WhatsApp
Email
Twitter

Product Details

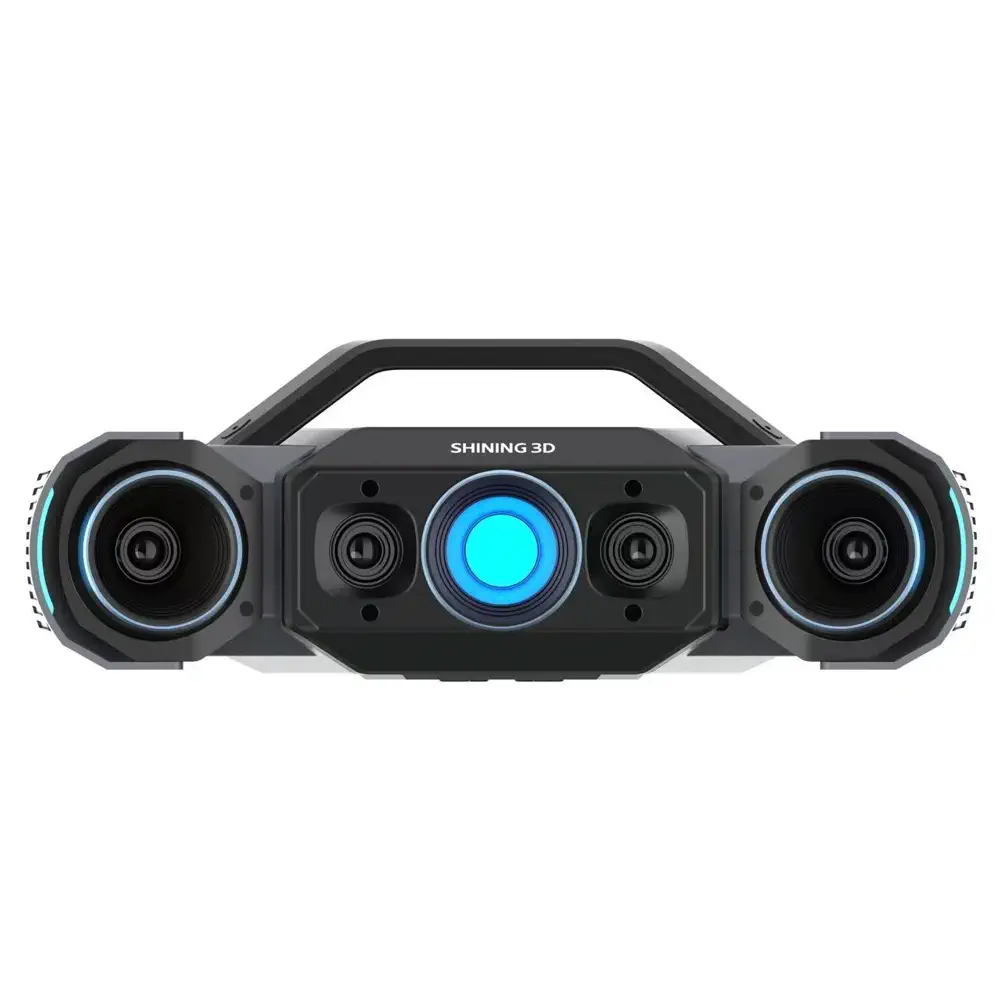

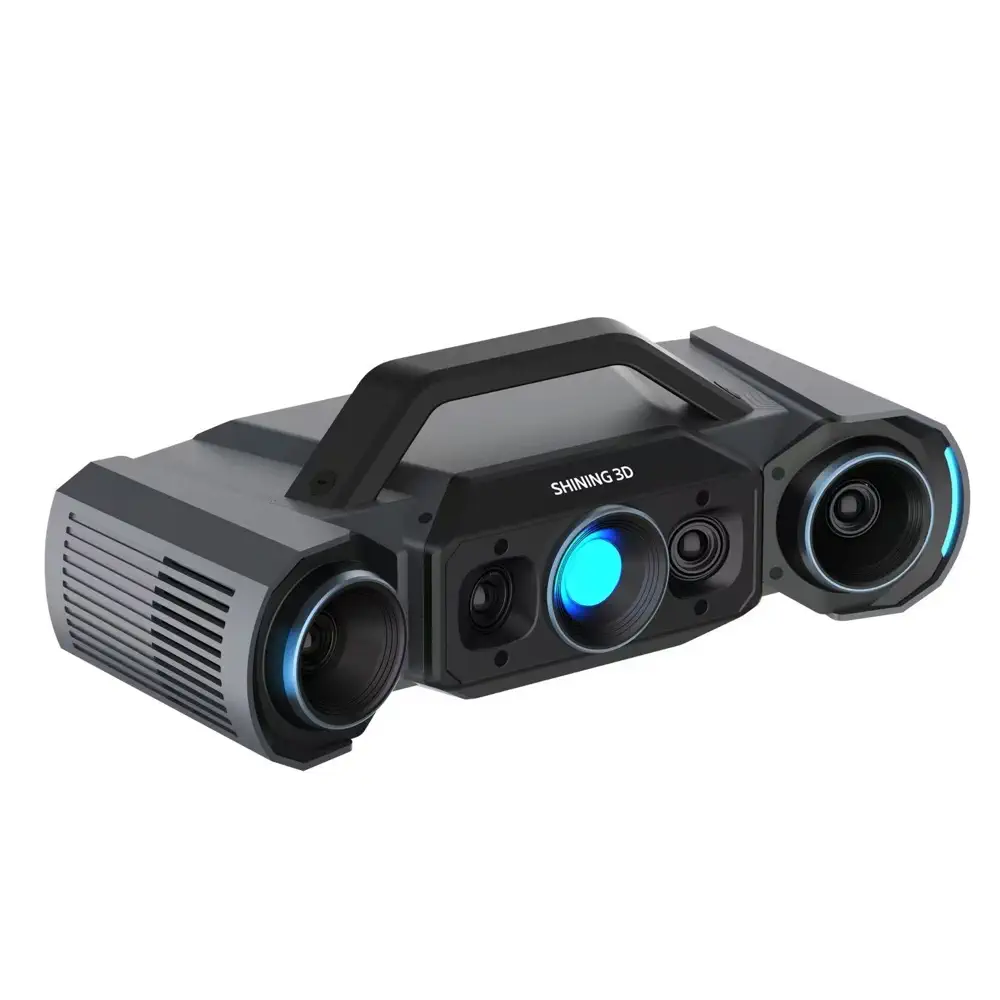

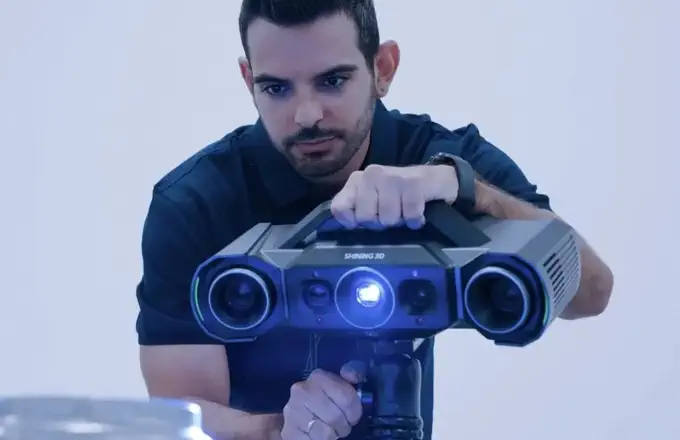

The SHINING 3D OptimScan Q12

A high-precision 3D scanner designed to meet the rigorous demands of industrial inspection and quality control. Equipped with four 12.3-megapixel industrial cameras, it delivers exceptional detail and accuracy, capturing intricate surface features with a precision of up to 0.005 mm.

Key Features:

Dual Scan Ranges: Easily switch between two scan ranges—160 × 110 mm for detailed features and 430 × 300 mm for larger parts—without manual adjustments. The system seamlessly fuses data from different ranges, ensuring both efficiency and detail.

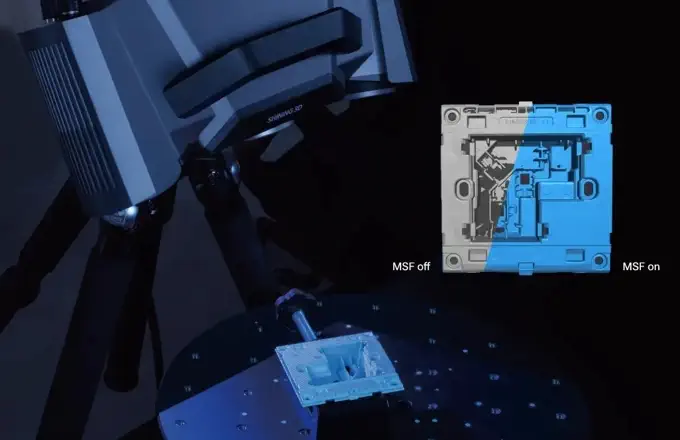

Monocular-Stereo Fusion (MSF): Enhances scan coverage on complex edges and corners, improving the integrity of scanned data, especially in challenging areas like turning corners and joints of industrial parts.

High-Speed Scanning: Powered by a built-in dual-chip computing module, the OptimScan Q12 captures up to 12 million points in under a second, delivering fast image acquisition and data processing.

Multiple Exposure Modes: Adaptable to various surface types, including reflective and dark materials, ensuring optimal results across diverse surface conditions.

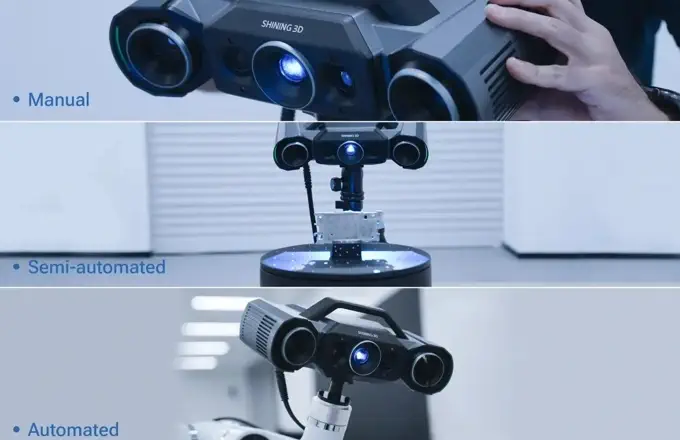

Flexible Integration: Supports handheld use, semi-automated setups with turntables, and full robotic integration, making it suitable for various workflows and production environments.

The OptimScan Q12 is an integral part of SHINING 3D’s metrology solutions, offering reliable, repeatable 3D scanning that fits seamlessly into modern production lines. Its compact design and advanced features make it an ideal choice for manufacturers seeking efficient and precise 3D inspection capabilities.

Reliable High Performance

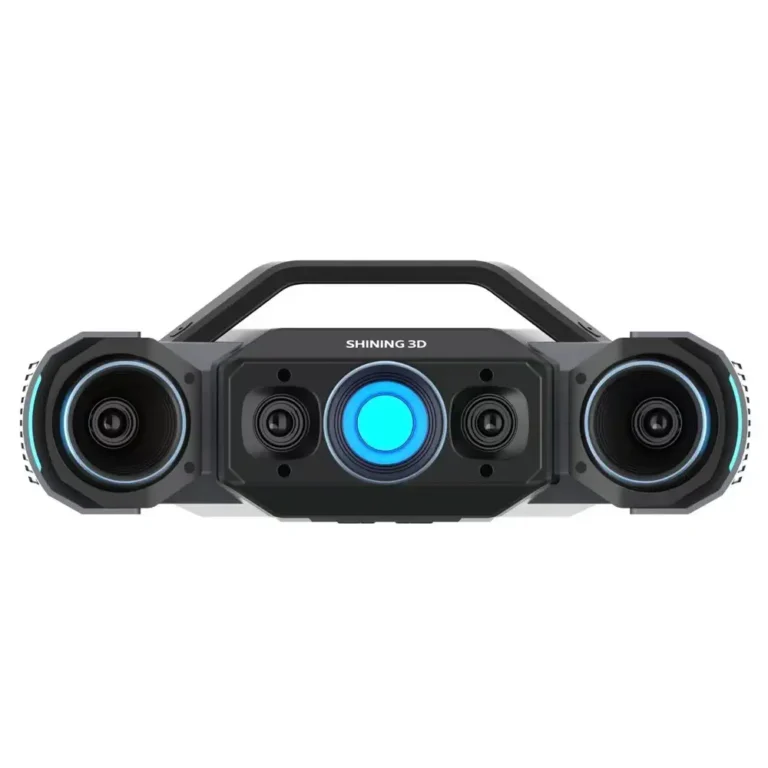

OptimScan Q12, equipped with 4 x 12.3 megapixel cameras, accurately captures geometrically detailed features on an object’s surface.
Combined with powerful hardware modules and advanced 3D reconstruction algorithms, it delivers an impressive accuracy of up to 0.005 mm, ensuring stable repeatability.

Dual Scan Range,
Easy to Operate

The OptimScan Q12 features two scan ranges that can be switched with a single click, eliminating manual adjustment of aperture and focal length.

  • Large range: 430 × 300 mm
  • Small range: 160 ×110 mm

Scanned data from different ranges can be seamlessly fused in the software, ensuring both efficiency and detail.

Monocular-Stereo Fusion (MSF)

The monocular-stereo fusion function can effectively increase data coverage and improve the integrity of the scanned data, such as the common turning corners and joints of industrial parts.

Multiple Exposure, Faster Scanning

Powered by a built-in dual-chip computing module, OptimScan Q12 delivers fast image acquisition and data processing. Each shot less than 1 second, capturing an impressive 12 million points with exceptional precision.

To further streamline the workflow, Q12 offers multiple exposure modes—including intelligent automatic exposure—dramatically reducing scanning time while ensuring optimal results across diverse surface conditions.

Versatile and Highly Adaptable

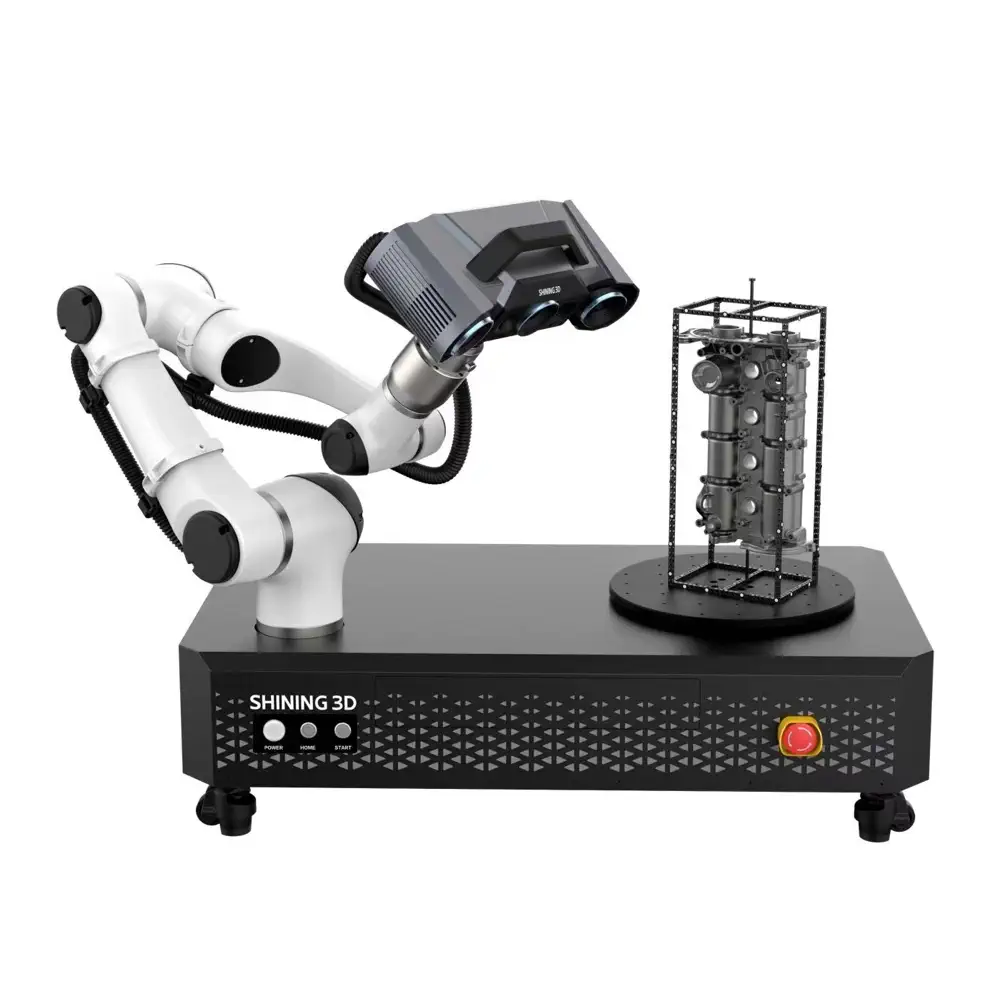

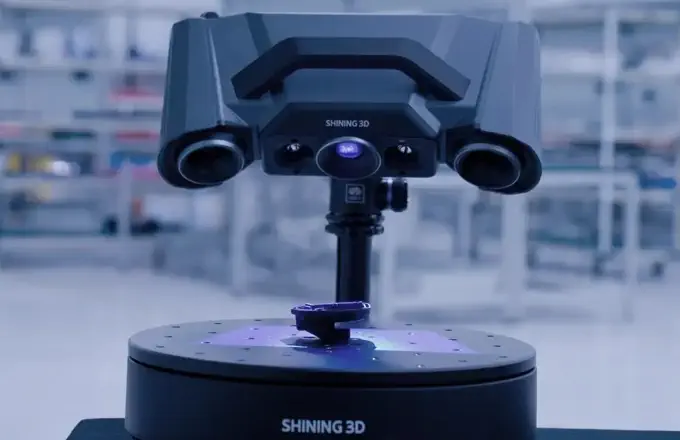

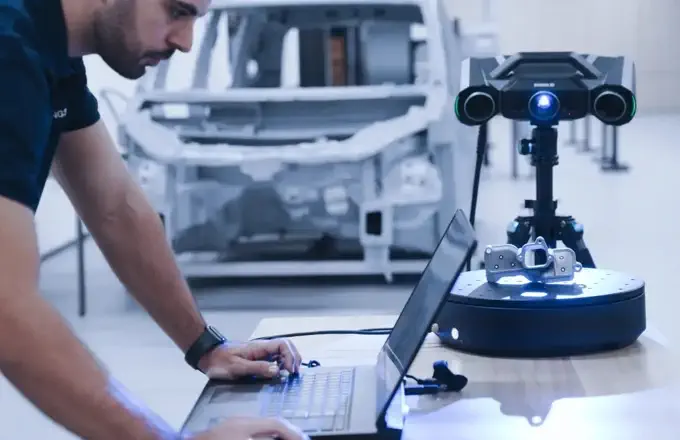

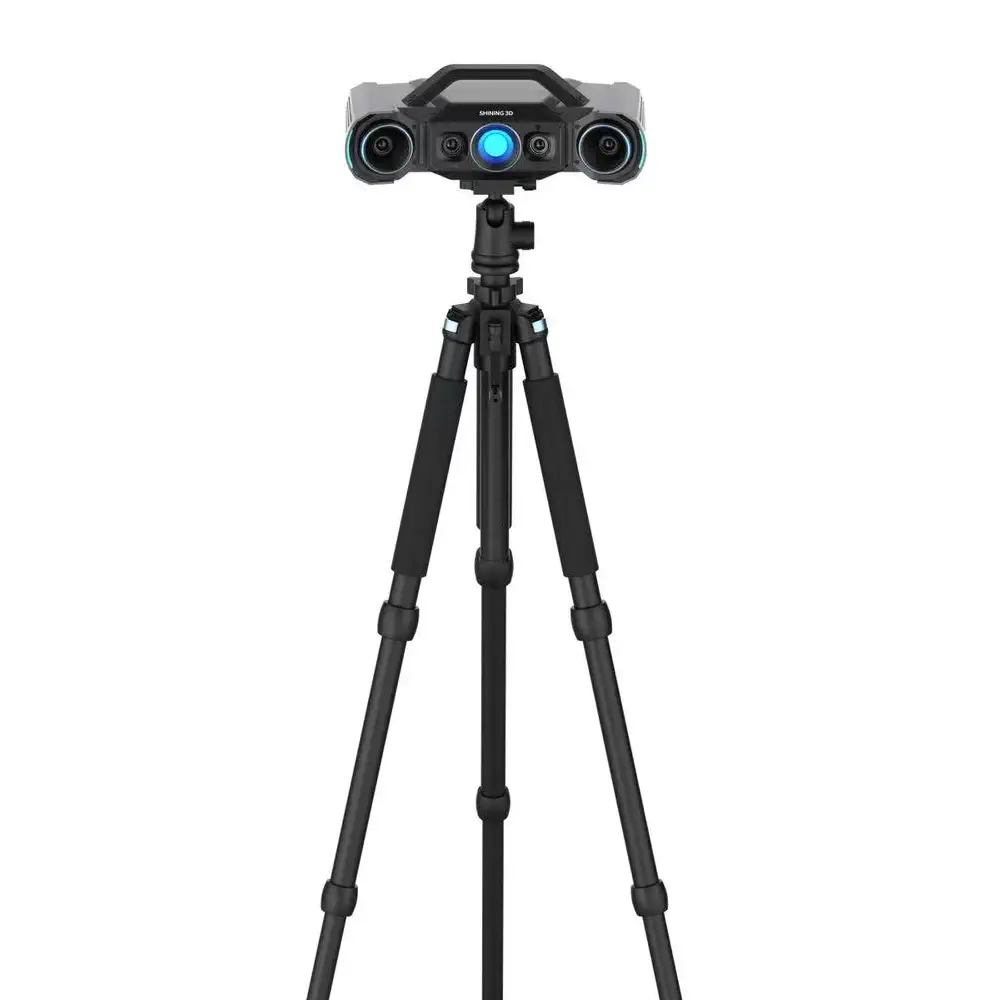

OptimScan Q12 is compact and easy to carry, offering flexible manual scanning. For semi-automated operation, it pairs with a fixed tripod and an automatic turntable with up to 20 kg load, providing increased efficiency and consistency in scanning. In fully automated mode, it integrates with a robot for precise, repetitive inspection tasks.

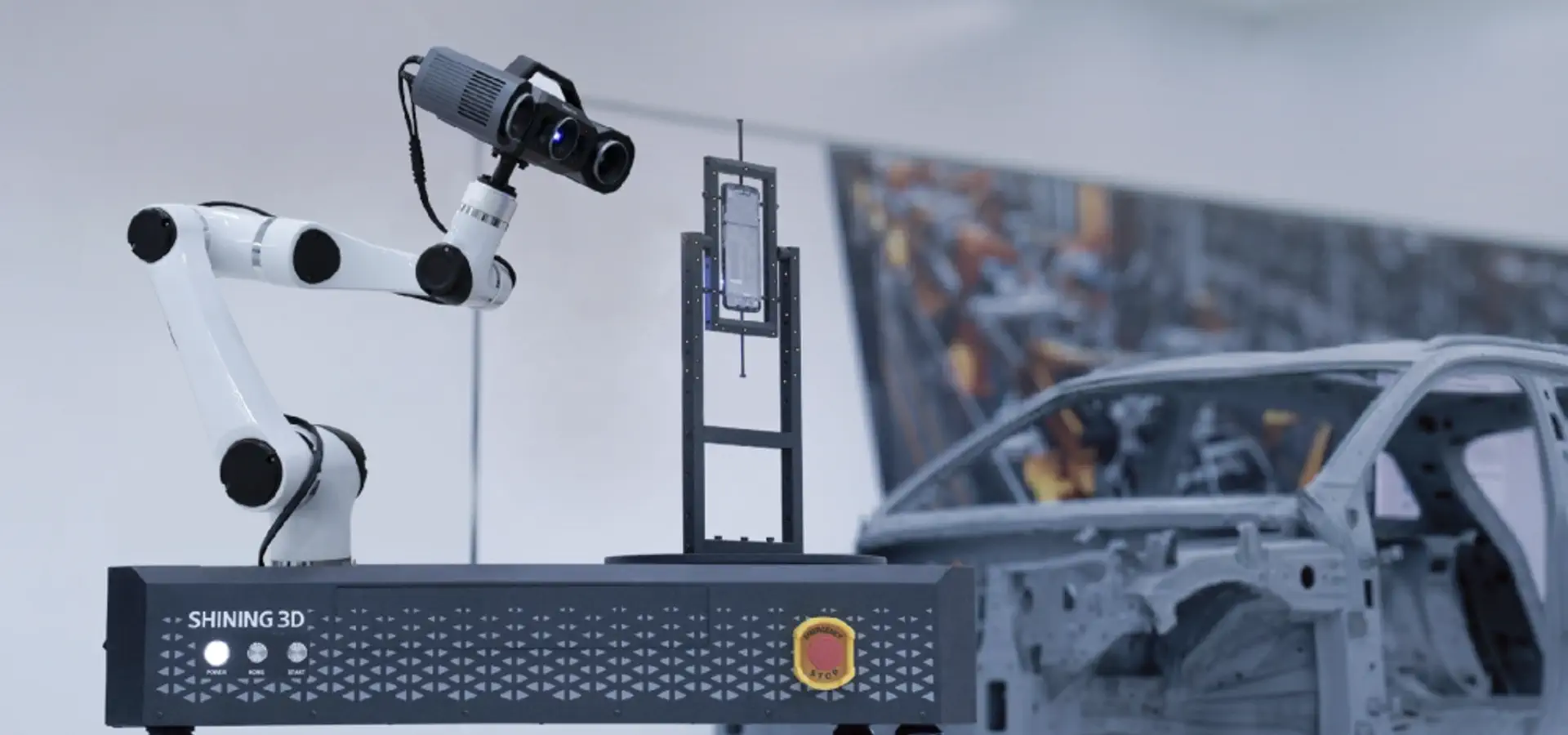

Automated Inspection Solution

OptimScan Q12 can seamlessly integrates with intelligent 3D inspection system, enabling fully automated workflow from scanning to report generation.

Workflow:

1. Robot Path Setup

2. Automated 3D Scanning

3. Automated Data Analysis

4. Automated Report Generation

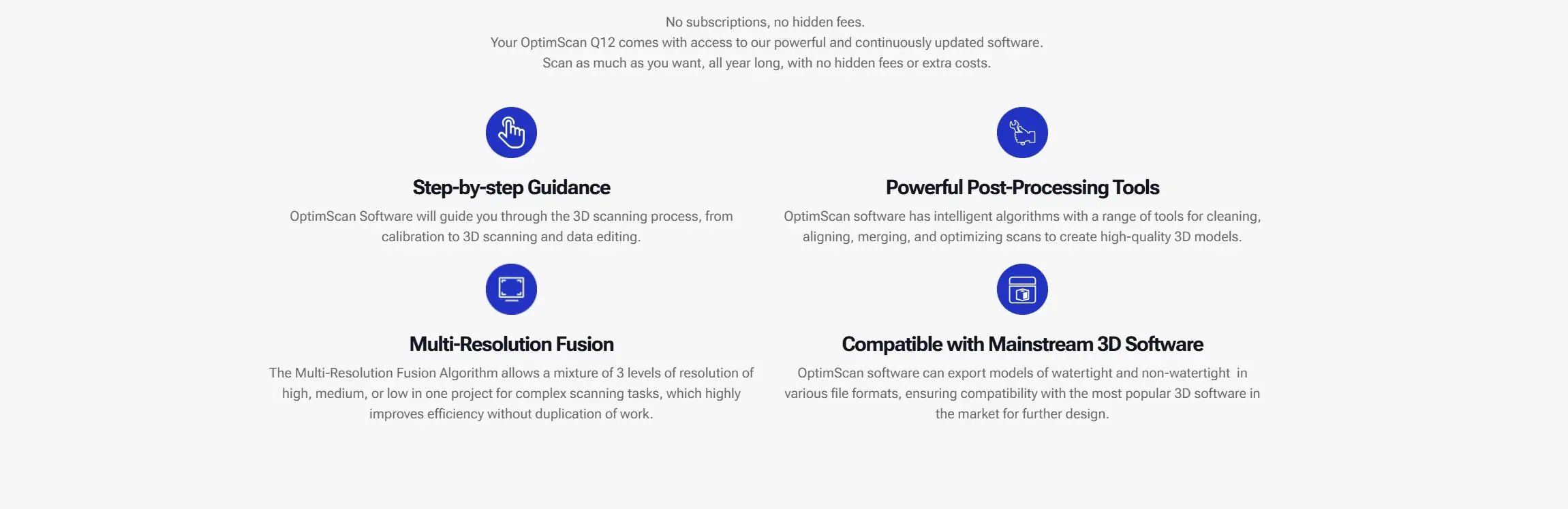

OptimScan Software

Technical Specification

Specification Details
Scan Range Large: 430 × 300 mm Small: 160 × 110 mm
Accuracy Large: 0.015 mm Small: 0.005 mm
Point Distance Large: 0.1 mm Small: 0.04 mm
Working Distance Large: 590 mm Small: 210 mm
Depth of Field Large: 300 mm Small: 60 mm
Resolution 4 × 12.3 MP Cameras
Light Source Blue LED
Weight 3.5 kg
Dimensions 366 × 162 × 132 mm
Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
Acceptance Test VDI/VDE 2634 Part 2 (Certified in ISO 17025 accredited lab)
